PER5715BCW 02 – CONTROL PANEL

PER5715BCW 02 – CONTROL PANEL

Written by

in

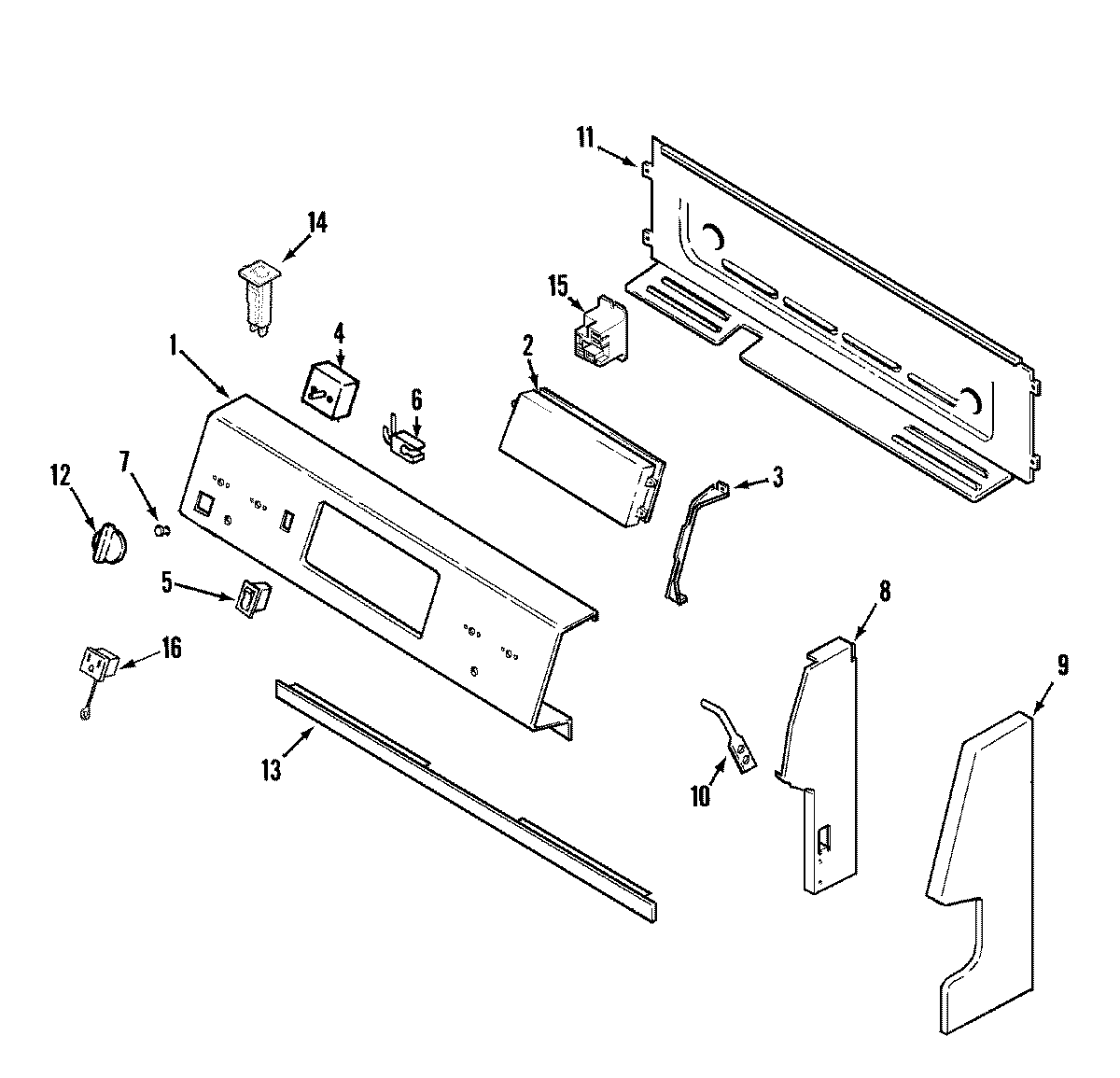

PER5715BCW 02 – CONTROL PANEL

Products

PositionProduct
1MAY 74006368
2MAY 74005510
3MAY 74004913
3MAY 7101P348-60
4SCREW
4WP7403P239-60 Whirlpool Oven Switch
4WP7403P238-60 Whirlpool Infinite Switch (Small Element)
574008717 Whirlpool White Rocker Switch
6WP74004153 Whirlpool Indicator Light
7WP7730P011-60 Whirlpool Indicator Lens
8MAY 74003365
8MAY 74003366
9WP74003369 Whirlpool Endcap
9WP98008544 Whirlpool Screw Assembly
9MAY 74002451
9MAY 74003370
10MAY 74003371
1074003975 Whirlpool Screw P1 (8ABX3/8-BLK)
11SCREW
11MAY 74004550
12WP74003373 Whirlpool Knob Switch
13SCREW (8BX3/8-NI)
13MAY 74003374
14MAY 71003070
15WP74003482 Whirlpool Auxiliary Relay
16MAY 71003069
18MAY 12001323
18MAY 5195D082-60
18MAY 74003375
18MAY 74003480
18MAY 74006497
19MAY 74005906
19MAY 74005475
20MAY 16010161
