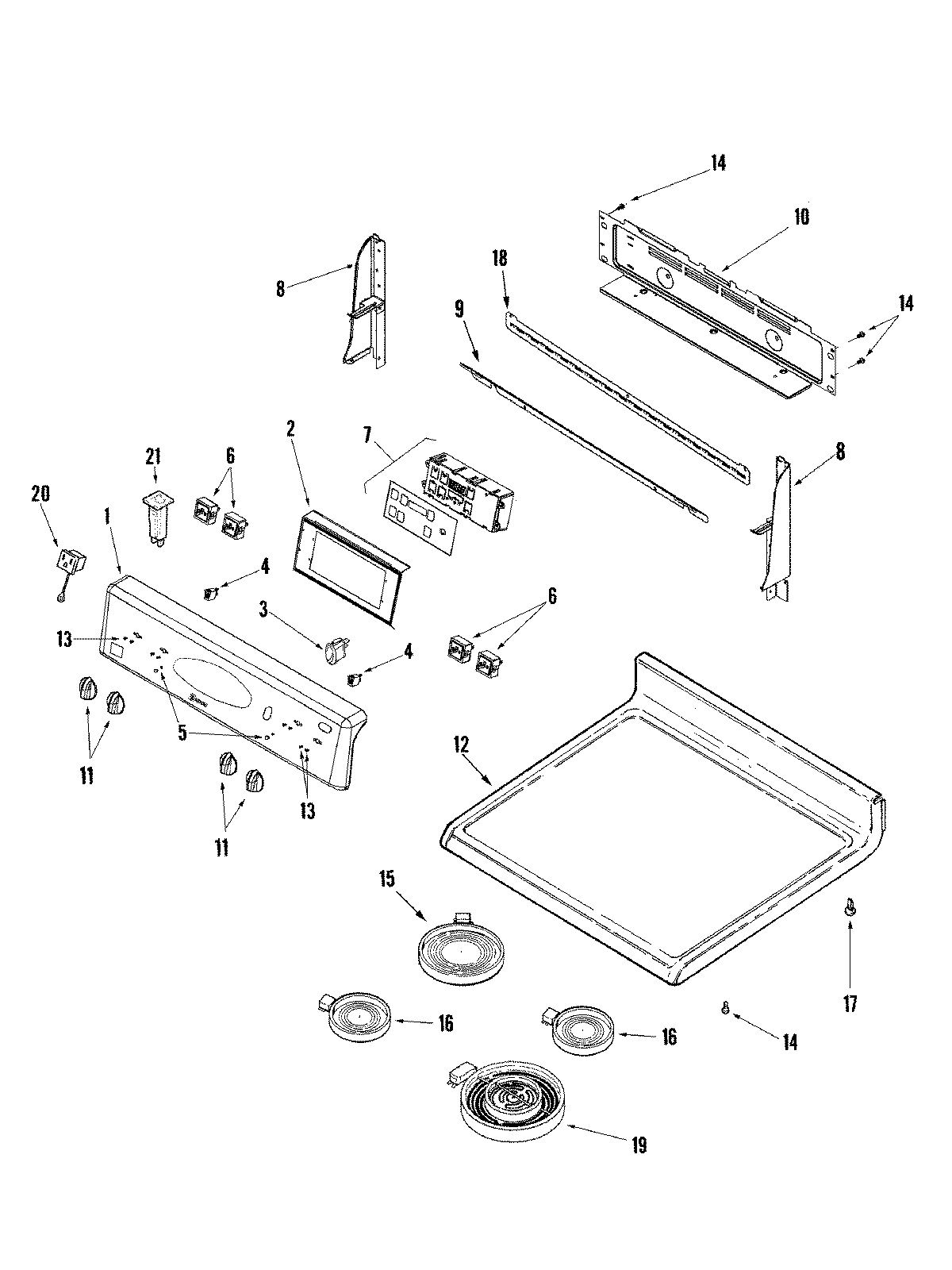

PER5720ACW 02 – CONTROL PANEL/TOP ASSEMBLY

PER5720ACW 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

PER5720ACW 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74010376
2BRACKET, CLOCK
3WP74010226 Whirlpool RO Switch
4WP74004153 Whirlpool Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6WP74003122 Whirlpool Infinite Switch Assembly (Dual)
6WP7403P239-60 Whirlpool Oven Switch
6WP7403P238-60 Whirlpool Infinite Switch (Small Element)
7MAY 74009758
8MAY 74009669
8MAY 74009672
9MAY 74009701
10MAY 74010804
11W11197495 Whirlpool Knob
12MAY 74009756
13SCREW
14SCREW
15W10823715 Whirlpool Radiant Surface Element
16W10823711 Whirlpool Surface Element Left Front and Right Rear
17W11189172 Whirlpool Glide Drawer
18WP90767 Whirlpool Screw
18MAY 74009708
19W10823709 Whirlpool Range Dual Radiant Surface Element Cooktop Microwave
20MAY 71003069
21MAY 74009322
