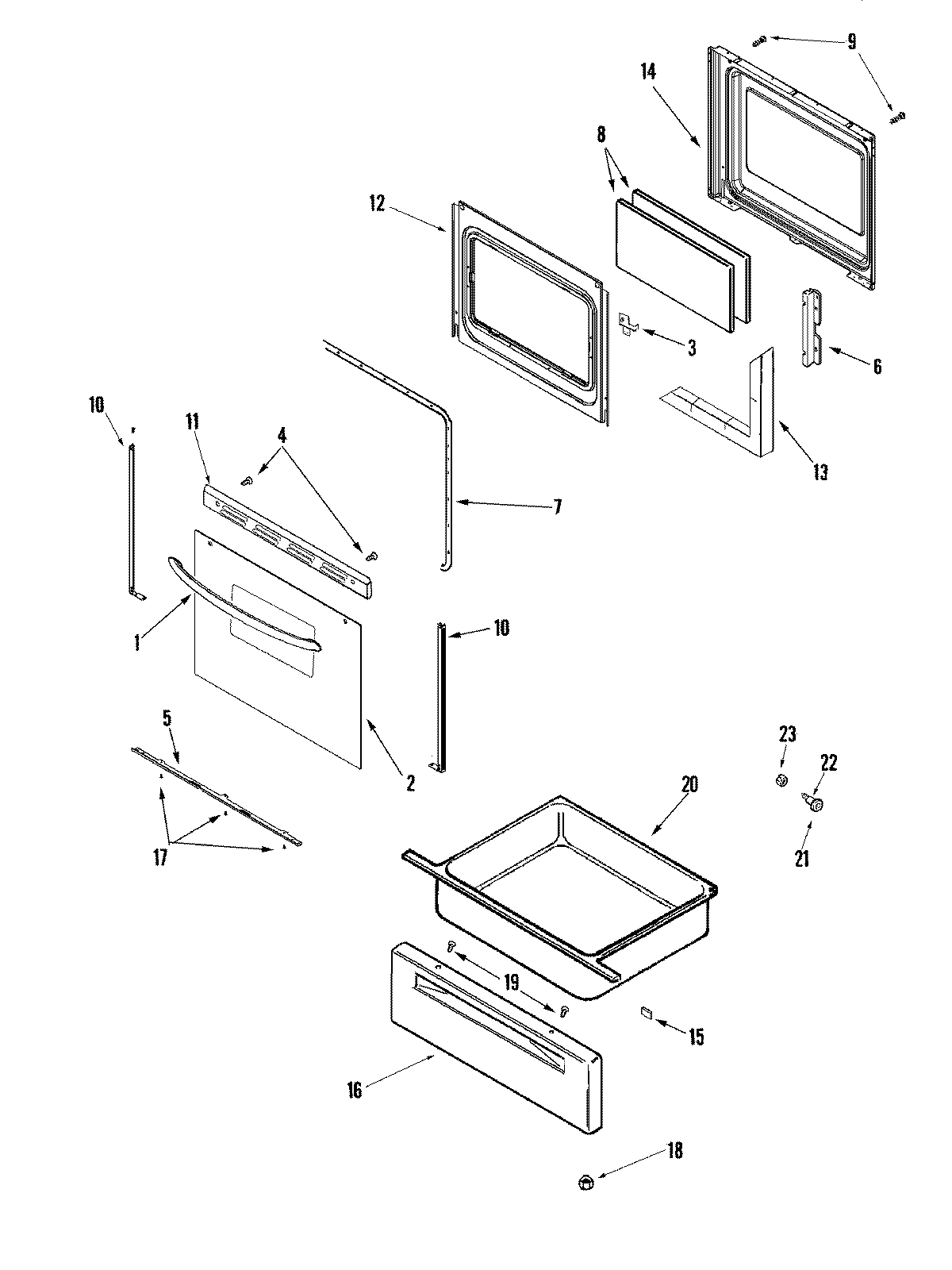

PER5720LAQ 03 – DOOR/DRAWER

PER5720LAQ 03 – DOOR/DRAWER

Written by

in

PER5720LAQ 03 – DOOR/DRAWER

Products

PositionProduct
1WP74011675 Whirlpool Door Handle
1MAY 74009185
1MAY 74011107
2MAY 74009728
2MAY 74003146
33801F832-45 Whirlpool Bracket
33801F831-45 Whirlpool Bracket Assembly
4WP98008545 Whirlpool Screw
4WP74006515 Whirlpool Washer Screw
5SUPPORT, GLASS (BSQ)
6MAY 74001844
7GASKT-DOOR OVEN
8GLASS, INNER
9SCREW
10WP74009014 Whirlpool Double Tape
10TRIM, DOOR (BSQ-LT)
10TRIM, DOOR (BSQ-RT)
11MAY 74009691
11MAY 7101P356-60
12BAFFLE, OVEN DOOR
13MAY 74001842
14LINING, OVEN DOOR
15WP74005546 Whirlpool RU Spacer
16MAY 74005055
17WP74009541 Whirlpool Screw Assembly
18WPW10131078 Whirlpool Nut Assembly
20MAY 74008337
21WP74004078 Whirlpool Door Roller
22SHAFT, STORAGE DRAWER ROLLER
23WP488130 Whirlpool Air Conditioner Nut
