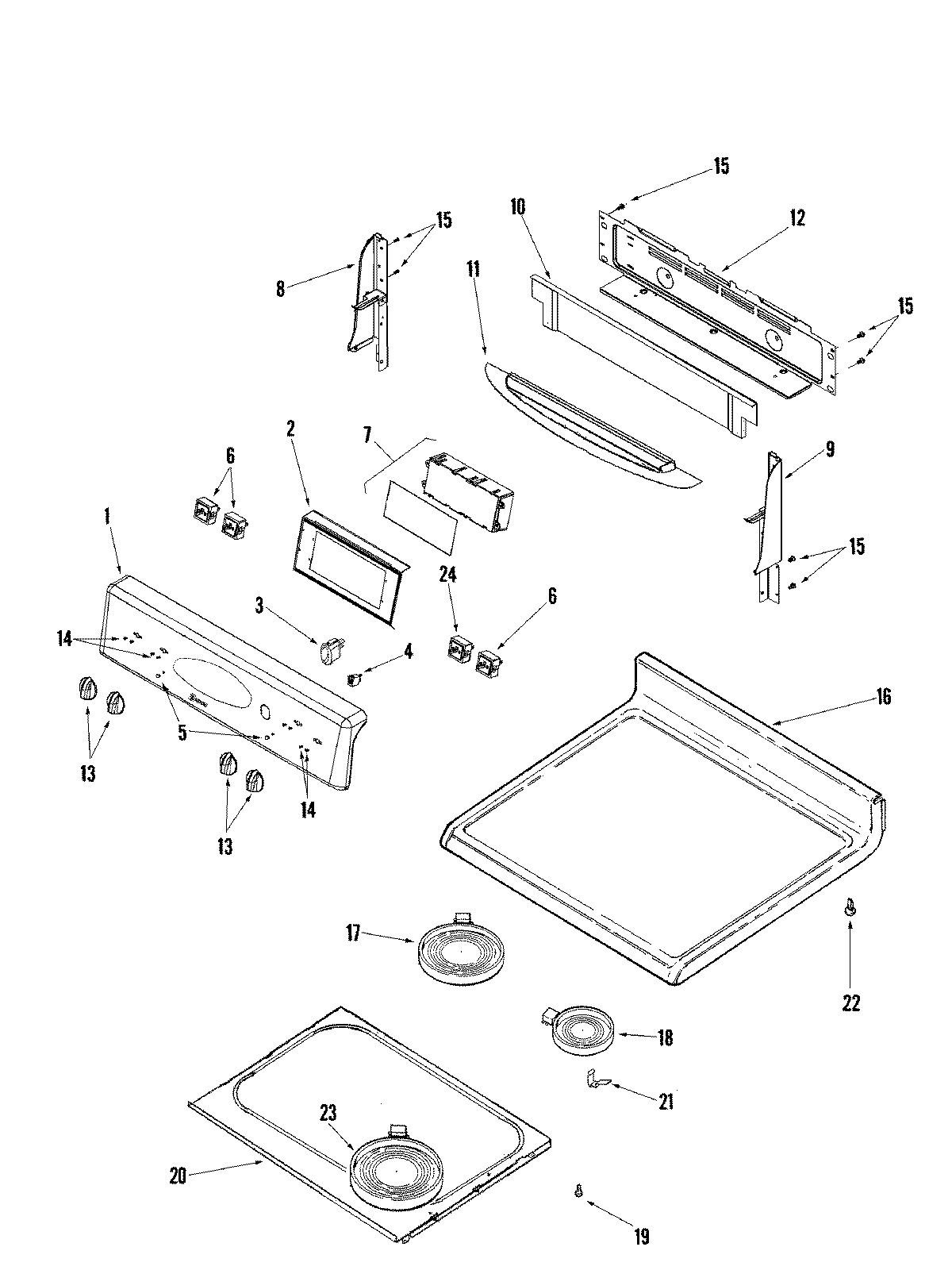

PER5750LAW 03 – CONTROL PANEL/TOP ASSEMBLY

PER5750LAW 03 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

PER5750LAW 03 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74010565
2NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
2BRACKET, CLOCK
3WP74010226 Whirlpool RO Switch
4WP74004153 Whirlpool Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6WP7403P239-60 Whirlpool Oven Switch
7MAY 74010557
8End Cap (Right White)
9End Cap (Left White)
10MAY 74009206
11MAY 74009203
12MAY 74009943
12MAY 74008836
13W11197495 Whirlpool Knob
14SCREW
16MAY 74010572
17W10823696 Whirlpool Radiant Surface Element
18W10823711 Whirlpool Surface Element Left Front and Right Rear
19SCREW
20MAY 74008900
21SPRING, ELEMENT SUPPORT
2274008761 Whirlpool Spacer Snap-In
23MAY 74009082
24WP74008940 Whirlpool Infinite Switch
