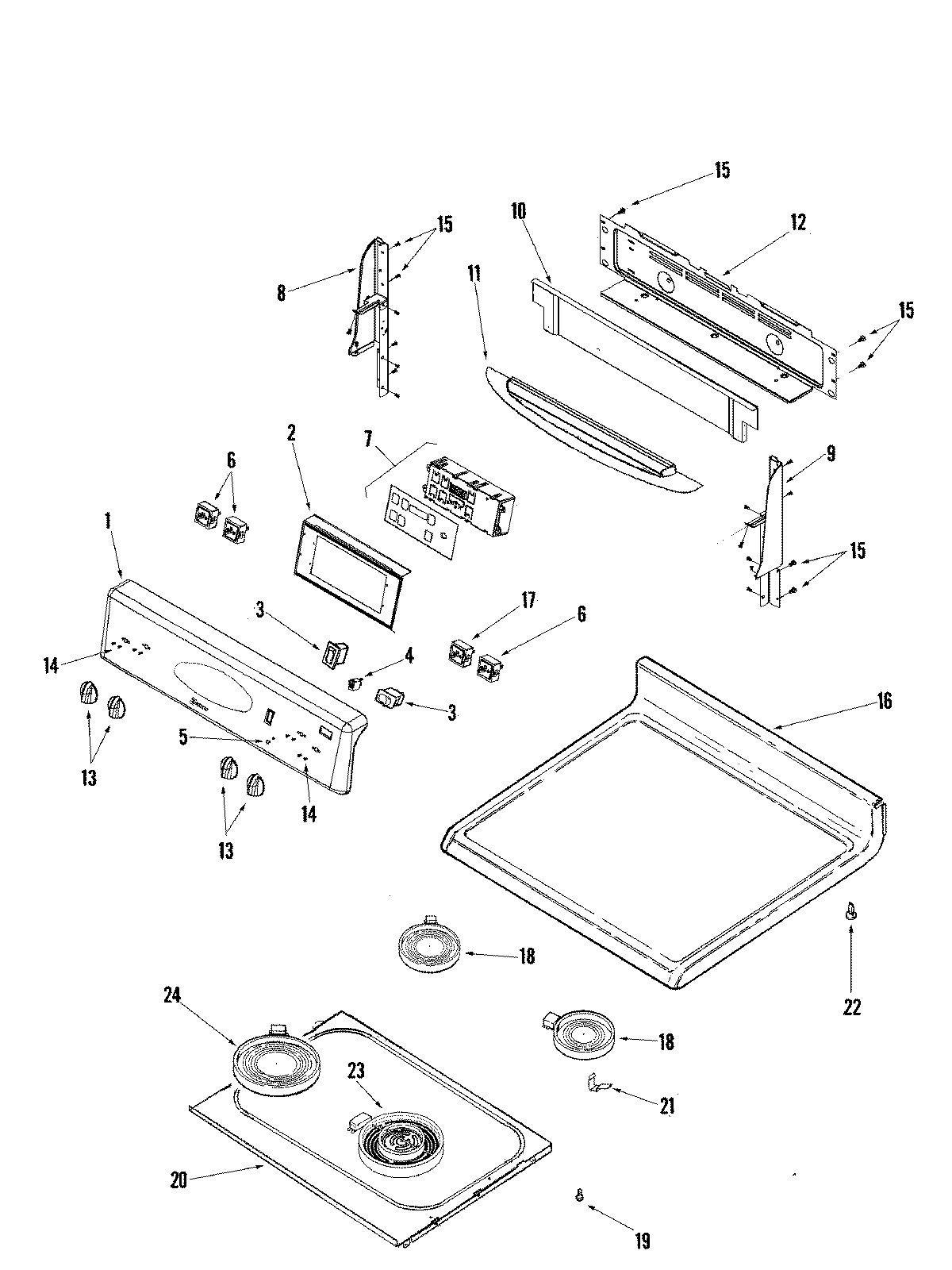

PER5750QAQ 03 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	MAY 74009182
2	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
2	BRACKET, CLOCK
3	7403P984-60 Whirlpool RO Switch
4	WP74004153 Whirlpool Indicator Light
5	WP7730P011-60 Whirlpool Indicator Lens
6	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6	WP7403P239-60 Whirlpool Oven Switch
6	WP74003122 Whirlpool Infinite Switch Assembly (Dual)
7	MAY 74009230
8	END CAP (RT-BSQ)
9	END CAP (LT-BSQ)
10	MAY 74008727
10	MAY 74009207
11	SHIELD, HEAT VISOR (BSQ)
11	MAY 74008729
12	MAY 74008730
12	MAY 74008836
13	MAY 74009189
14	SCREW
16	MAY 74008531
17	WP74008940 Whirlpool Infinite Switch
18	W10823711 Whirlpool Surface Element Left Front and Right Rear
19	SCREW
20	MAY 74008900
21	SPRING, ELEMENT SUPPORT
22	74008761 Whirlpool Spacer Snap-In
23	W10823692 Whirlpool Dual Radiant Element
24	W10823696 Whirlpool Radiant Surface Element
