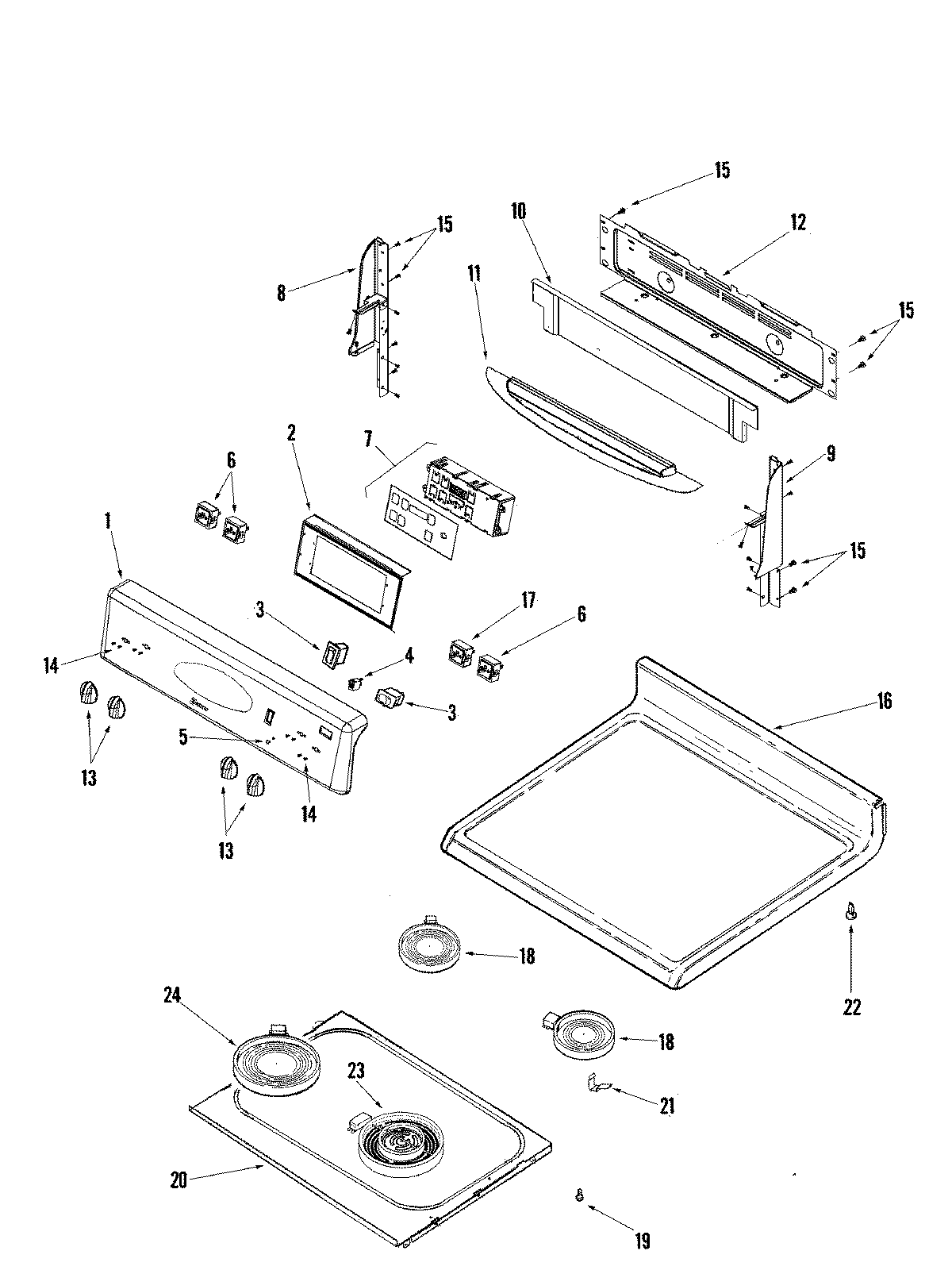

PER5750QAS 03 – CONTROL PANEL/TOP ASSEMBLY

PER5750QAS 03 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

PER5750QAS 03 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74009183
2NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
2BRACKET, CLOCK
37403P985-60 Whirlpool Rocker Switch (Black)
4WP74004153 Whirlpool Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6WP7403P239-60 Whirlpool Oven Switch
6WP74003122 Whirlpool Infinite Switch Assembly (Dual)
7MAY 74009229
8End Cap (Right Black)
9End Cap (Left Black)
10MAY 74009205
10MAY 74008725
11MAY 74009202
11MAY 74008891
12MAY 74008730
12MAY 74008836
14SCREW
16MAY 74009193
17WP74008940 Whirlpool Infinite Switch
18W10823711 Whirlpool Surface Element Left Front and Right Rear
19SCREW
20MAY 74008900
21SPRING, ELEMENT SUPPORT
2274008761 Whirlpool Spacer Snap-In
23W10823692 Whirlpool Dual Radiant Element
24W10823696 Whirlpool Radiant Surface Element
