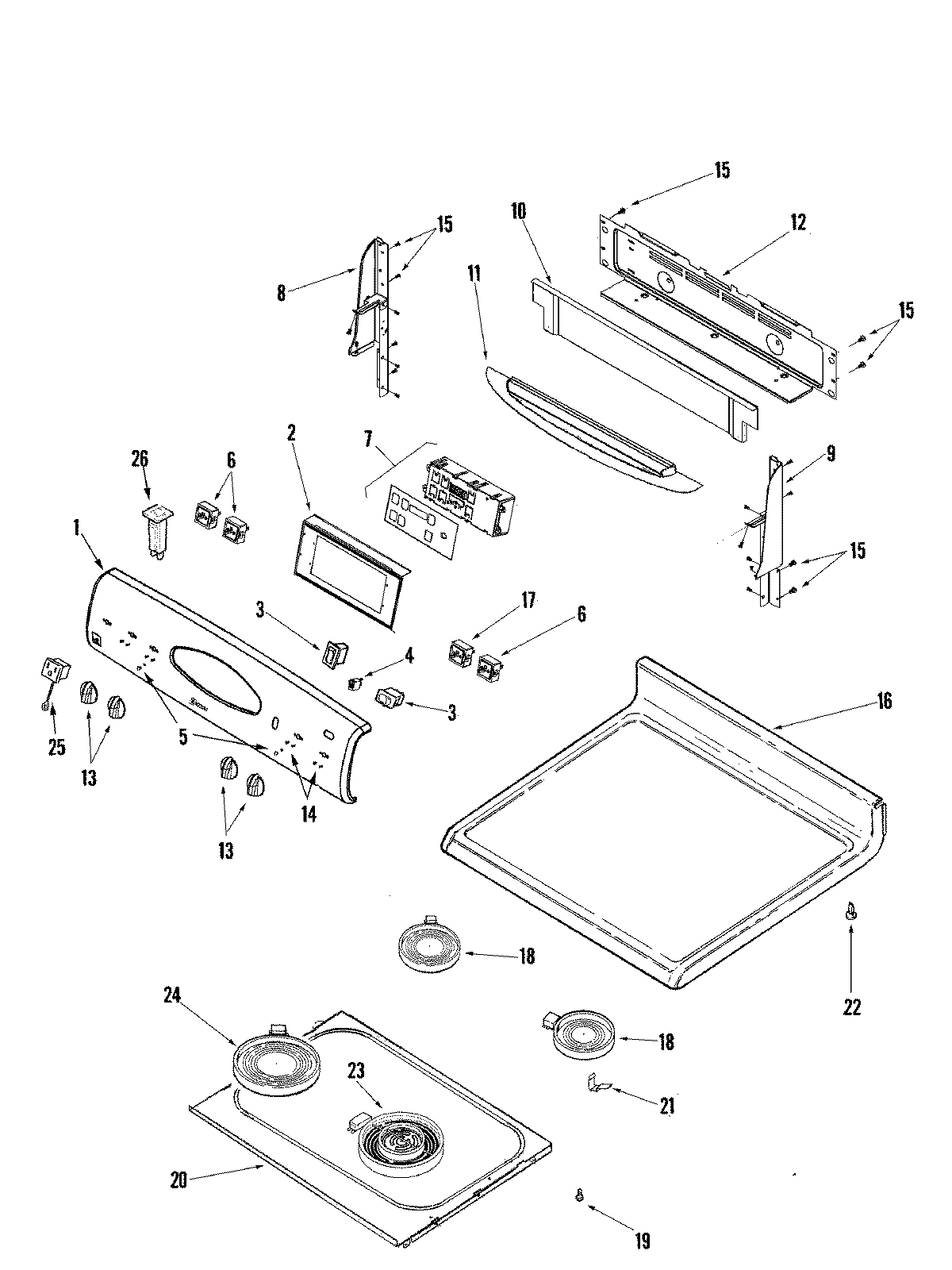

PER5750QCQ 03 – CONTROL PANEL/TOP ASSEMBLY

PER5750QCQ 03 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

PER5750QCQ 03 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74009357
2BRACKET, CLOCK
37403P984-60 Whirlpool RO Switch
4WP74004153 Whirlpool Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6WP74003122 Whirlpool Infinite Switch Assembly (Dual)
6WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6WP7403P239-60 Whirlpool Oven Switch
7MAY 74009230
8END CAP (RT-BSQ)
9END CAP (LT-BSQ)
10MAY 74009207
11SHIELD, HEAT VISOR (BSQ)
12MAY 74008836
12MAY 74009335
13MAY 74009189
14SCREW
16MAY 74008531
17WP74008940 Whirlpool Infinite Switch
18W10823711 Whirlpool Surface Element Left Front and Right Rear
19SCREW
20MAY 74008900
21SPRING, ELEMENT SUPPORT
2274008761 Whirlpool Spacer Snap-In
23W10823692 Whirlpool Dual Radiant Element
24W10823696 Whirlpool Radiant Surface Element
25MAY 74005144
26MAY 74009346
26SCREW (8BX3/8-NI)
