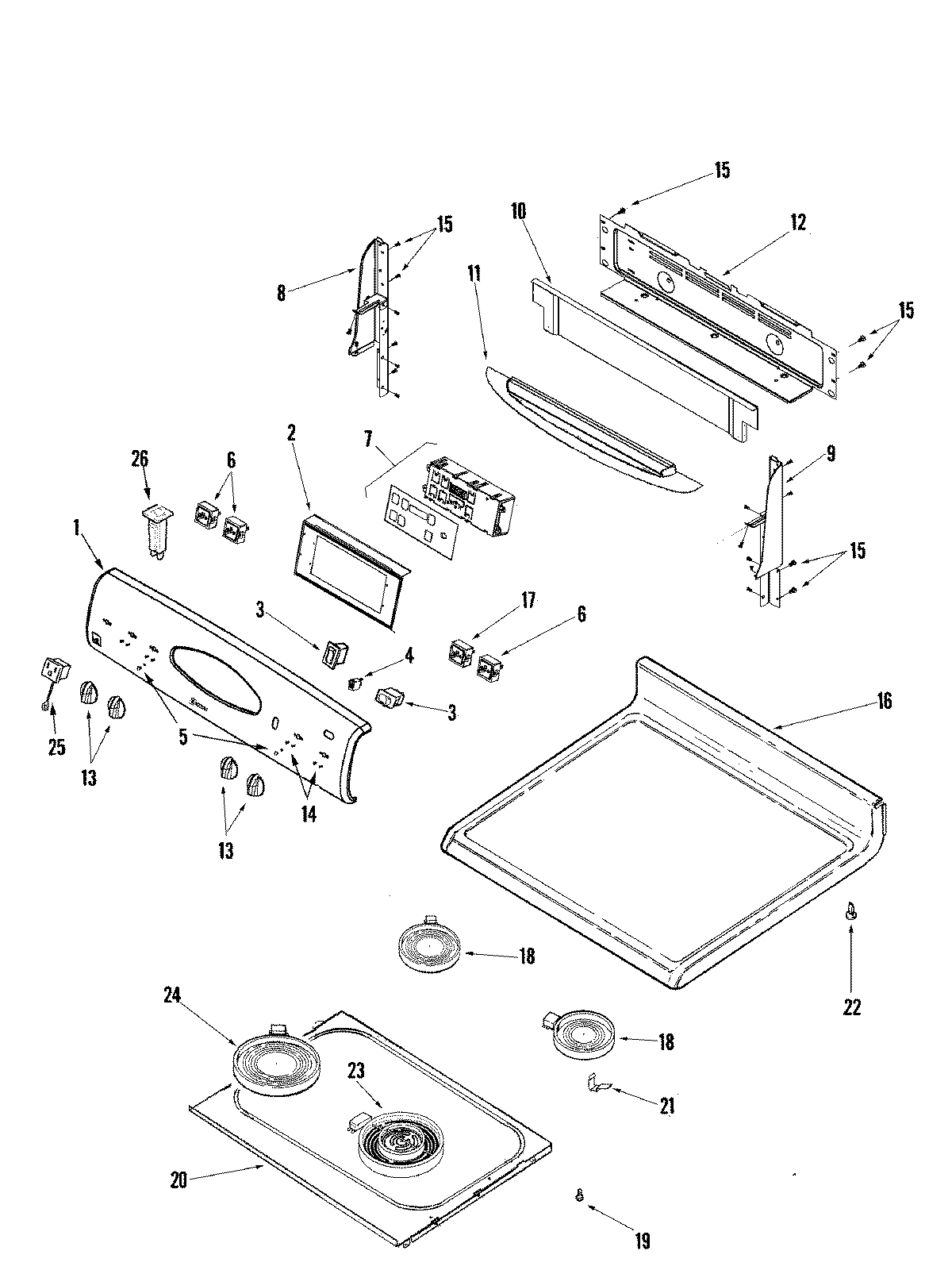

PER5750QCW 03 – CONTROL PANEL/TOP ASSEMBLY

PER5750QCW 03 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

PER5750QCW 03 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74009356
2BRACKET, CLOCK
3WP74010226 Whirlpool RO Switch
4WP74004153 Whirlpool Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6WP7403P239-60 Whirlpool Oven Switch
6WP74003122 Whirlpool Infinite Switch Assembly (Dual)
7MAY 74009228
8End Cap (Right White)
9End Cap (Left White)
10MAY 74009206
11MAY 74009203
12MAY 74008836
12MAY 74009335
13W11197495 Whirlpool Knob
14SCREW
16MAY 74008532
17WP74008940 Whirlpool Infinite Switch
18W10823711 Whirlpool Surface Element Left Front and Right Rear
19SCREW
20MAY 74008900
21SPRING, ELEMENT SUPPORT
2274008761 Whirlpool Spacer Snap-In
23W10823692 Whirlpool Dual Radiant Element
24W10823696 Whirlpool Radiant Surface Element
25MAY 71003069
26MAY 74009322
26SCREW (8BX3/8-NI)
