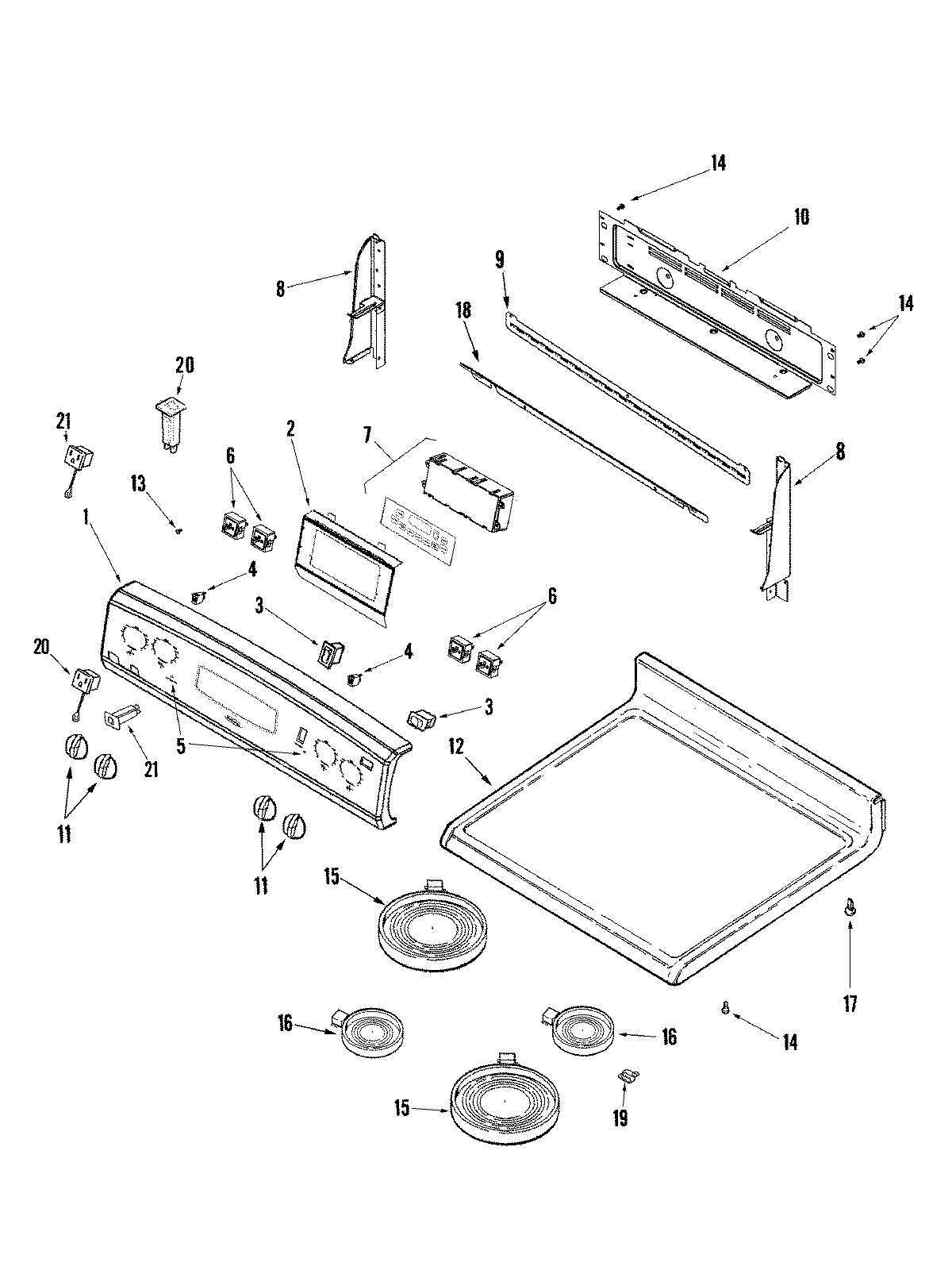

PERL451ACQ 02 – CONTROL PANEL/TOP ASSEMBLY

PERL451ACQ 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

PERL451ACQ 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74011303
2SCREW
2MAY 74008716
374008765 Whirlpool Range Oven Rocker Switch Bisque
4WP74004153 Whirlpool Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6WP74003122 Whirlpool Infinite Switch Assembly (Dual)
6WP7403P239-60 Whirlpool Oven Switch
6WP7403P238-60 Whirlpool Infinite Switch (Small Element)
7MAY 74009759
8MAY 74010712
8WP74009541 Whirlpool Screw Assembly
8MAY 74010714
8WP74003976 Whirlpool Screw
9MAY 74009701
10MAY 74010983
11MAY 74010333
12MAY 74011301
13SCREW
14SCREW (6ABX.25-ZN)
15W10823715 Whirlpool Radiant Surface Element
15MAY 74009898
16W10823711 Whirlpool Surface Element Left Front and Right Rear
17W11189172 Whirlpool Glide Drawer
18WP90767 Whirlpool Screw
18MAY 74009978
198004P093-60 Whirlpool Support C
20MAY 74009346
21MAY 74005144
