PERL451ACW 03 – DOOR/DRAWER

PERL451ACW 03 – DOOR/DRAWER

Written by

in

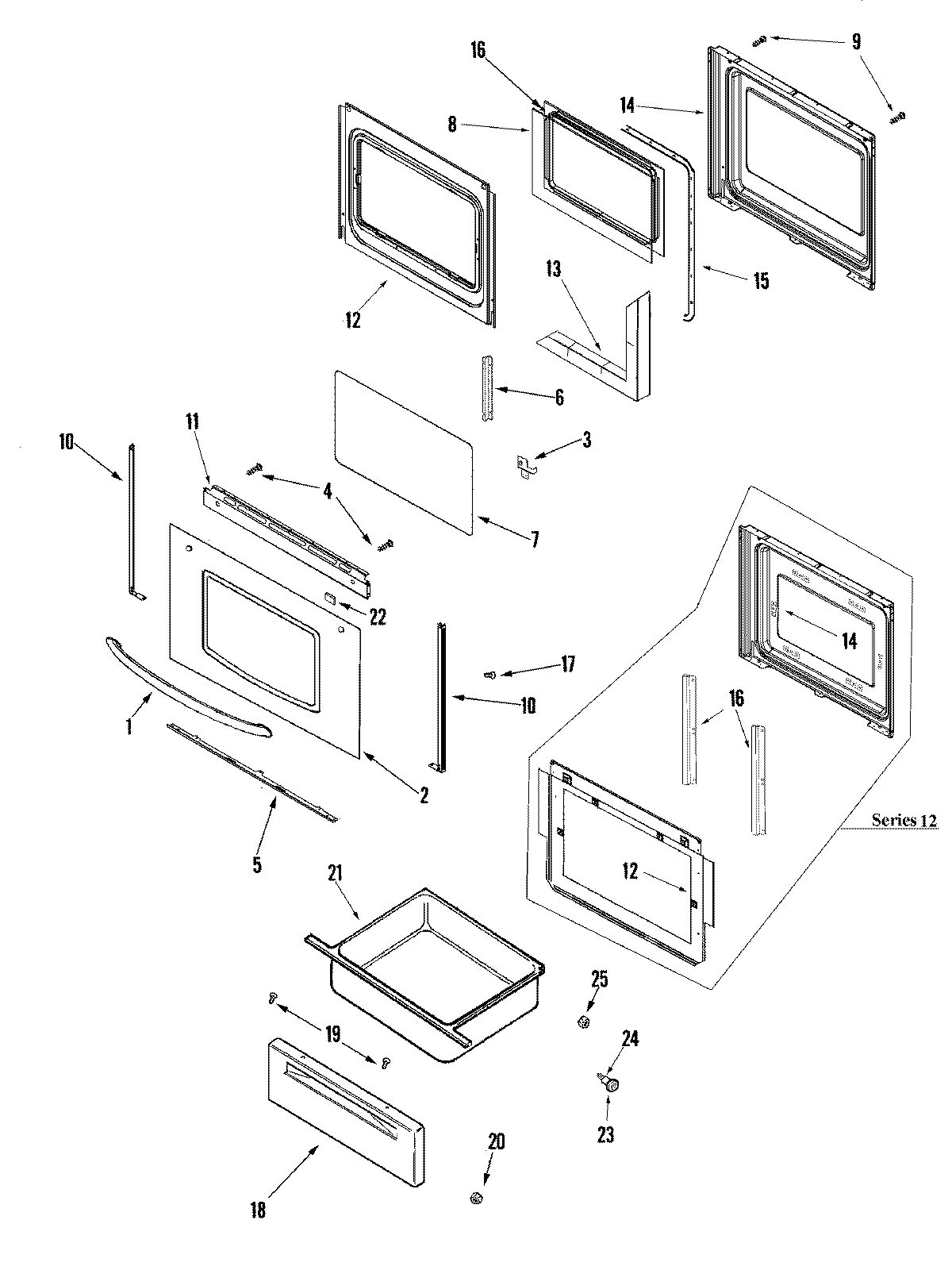

PERL451ACW 03 – DOOR/DRAWER

Products

PositionProduct
1WP74011675 Whirlpool Door Handle
2MAY 74010363
33801F832-45 Whirlpool Bracket
33801F831-45 Whirlpool Bracket Assembly
4WP74006515 Whirlpool Washer Screw
5WP3807F708-71 Whirlpool Support
6MAY 74003650
7GLASS, DOOR
874003645 Whirlpool Range Oven Door Inner Glass
10WP3608F117-71 Whirlpool Door Trim
10WP74004224 Whirlpool Tape
10WP3608F116-71 Whirlpool Door Trim
11WP3608F141-71 Whirlpool Door Trim
123601F373-51 Whirlpool Baffle
12MAY 7101P356-60
12MAY 74011339
13INSULATION, OVEN DOOR
14SCREW
14MAY 74003642
14LINING, DOOR
14NUT, SNAP (ROUND-BLK)
15GASKT-DOOR OVEN
16SCREW, 8 X 1/2
163801F886-51 Whirlpool Mounting Bracket
16FRAME, GLASS
17WP98008544 Whirlpool Screw Assembly
18MAY 74003399
20WPW10131078 Whirlpool Nut Assembly
21MAY 74008337
22WP74005546 Whirlpool RU Spacer
23WP74004078 Whirlpool Door Roller
24SHAFT, STORAGE DRAWER ROLLER
25WP488130 Whirlpool Air Conditioner Nut
