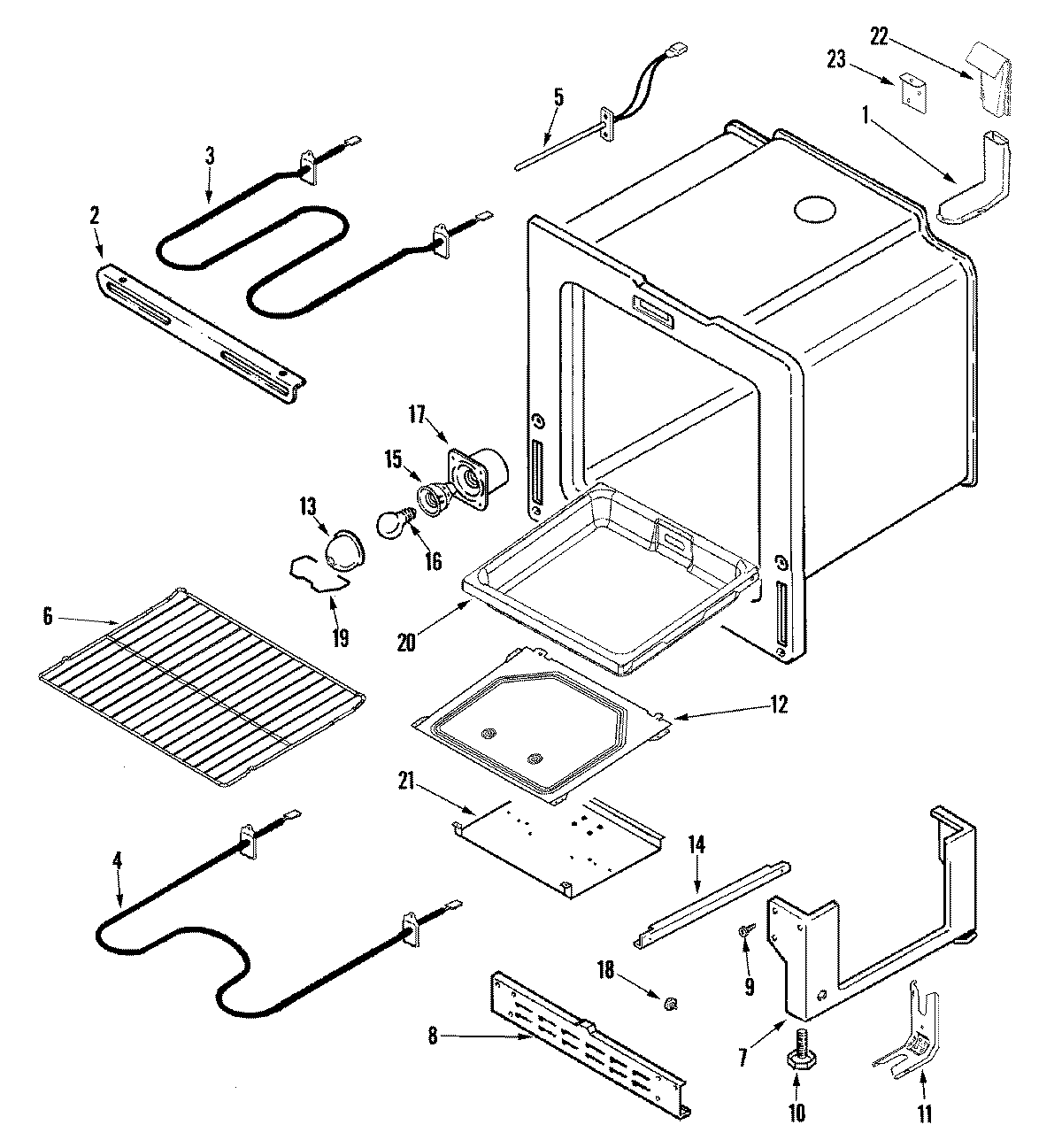

PERL451ACW 04 – OVEN/BASE

Products

Position	Product
1	MAY 74003394
2	SUPPORT, BROIL ELEMENT
3	WPW10310249 Whirlpool Broil Element
4	WP7406P438-60 Whirlpool Bake Element
5	12001656 Whirlpool Range Oven Temperature Sensor
6	WPW10282492 Whirlpool Oven Rack
7	MAY 74006325
8	MAY 4020F001-80
10	W11665456 Whirlpool Range Level Foot
11	WP7101P485-60 Whirlpool Anchor Tip
11	WP3801F656-51 Whirlpool Range Anti-Tip Bracket
12	RETAINER, INSULATION (BOTTOM)
13	MAY 74003389
14	RUNNER, DRAWER
14	SCREW
15	MAY 74003387
16	RANGE ONLY 40W 120V APPL BULB
17	MAY 74003388
18	74005230 Whirlpool Oven Lock Nut (8-32)
18	WP74004078 Whirlpool Door Roller
18	SHAFT, STORAGE DRAWER ROLLER
19	MAY 74003391
20	BOTTOM, DUTCH OVEN
21	MAY 74006591
22	MAY 74009987
22	SCREEN, SMOKE ELIMINATOR
23	MAY 74009988
