PES3759BCS 03 – DOOR/DRAWER (STL)

PES3759BCS 03 – DOOR/DRAWER (STL)

Written by

in

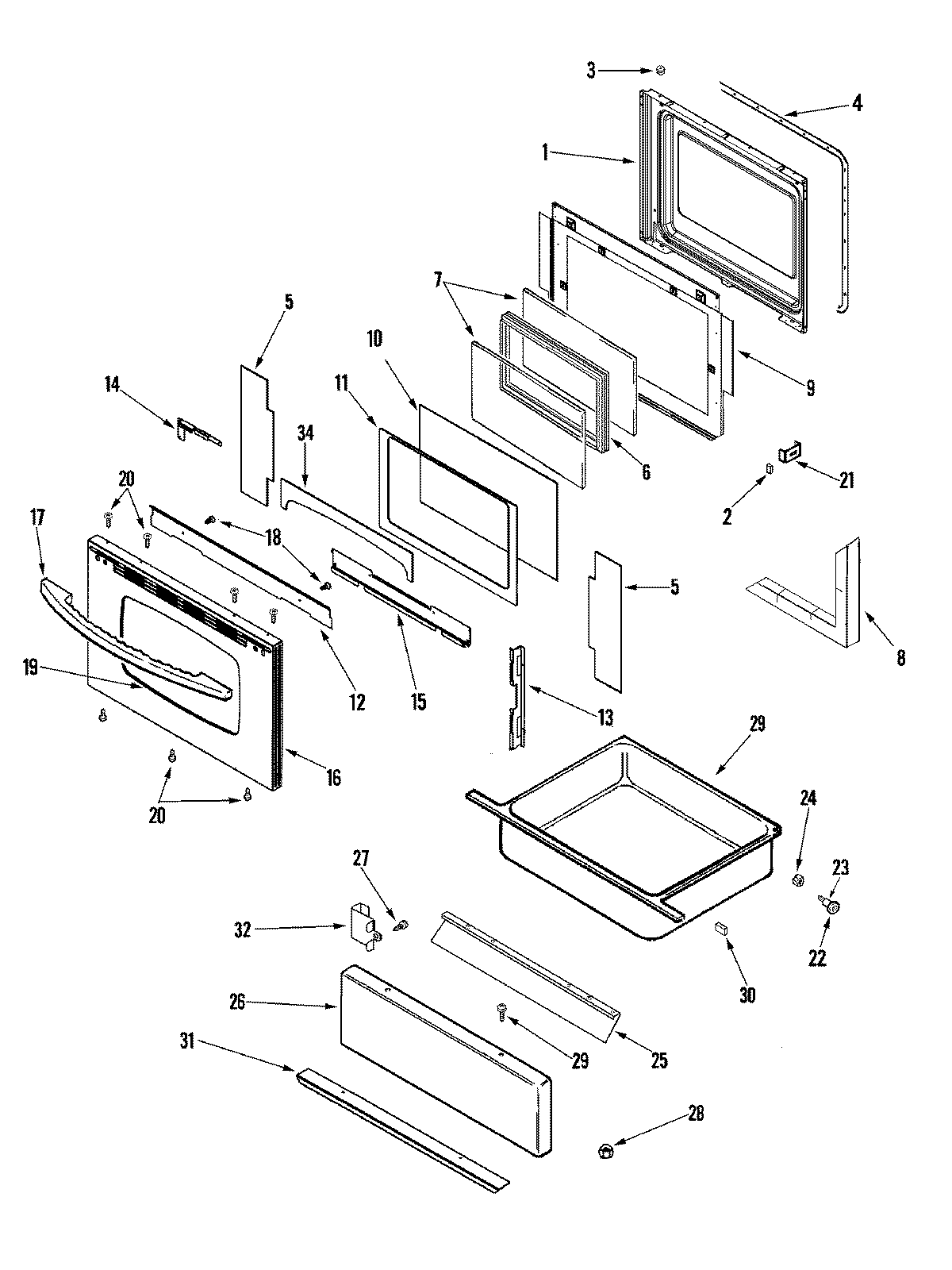

PES3759BCS 03 – DOOR/DRAWER (STL)

Products

PositionProduct
1MAY 74003642
2WP74004224 Whirlpool Tape
3NUT, SNAP (ROUND-BLK)
4GASKT-DOOR OVEN
5INSULATION, FOIL
6FRAME, GLASS
774003645 Whirlpool Range Oven Door Inner Glass
8INSULATION, OVEN DOOR
9MAY 74009502
10GLASS, DOOR (INNER/COATED)
11MAY 74010042
12MAY 74011049
13RETAINER, GLASS SUPPORT
14MAY 74011051
14MAY 74011052
15MAY 74007215
16MAY 74011478
17MAY 74010338
18WP74006515 Whirlpool Washer Screw
19WP74009029 Whirlpool Door Gasket
21CLIP, DOOR
22WP74004078 Whirlpool Door Roller
23SHAFT, STORAGE DRAWER ROLLER
24WP488130 Whirlpool Air Conditioner Nut
25LINING, DRAWER PANEL
26PANEL, DRAWER GAS (STL)
26MAY 74009840
27SCREW
28WPW10131078 Whirlpool Nut Assembly
29DRAWER, STORAGE
30WP74005546 Whirlpool RU Spacer
31HANDLE, DRAWER (STL)
31HANDLE, DRAWER
33MAY 74010896
34MAY 74008859
