PFCF1NFCB BB DOORS

PFCF1NFCB BB DOORS

Written by

in

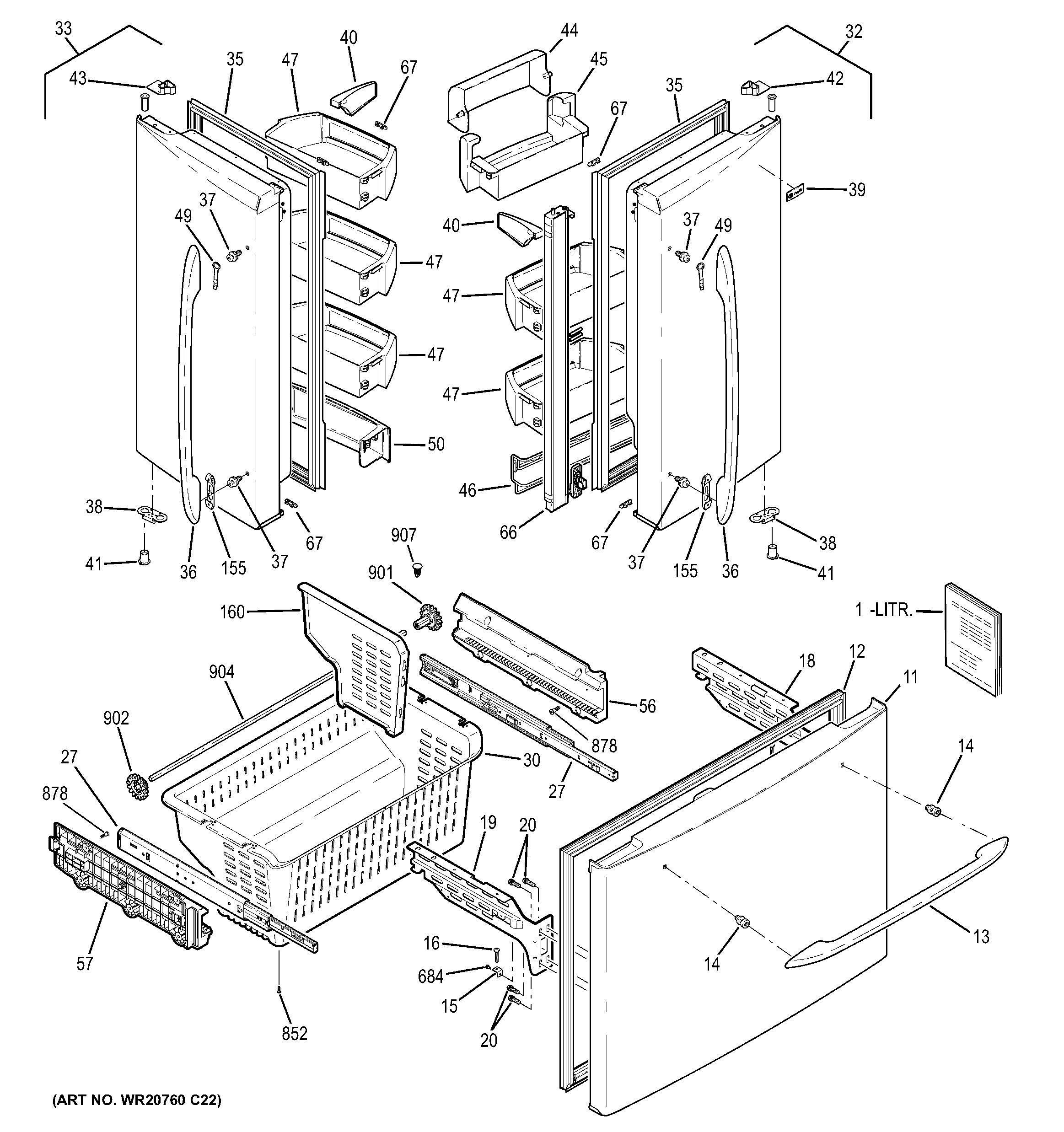

PFCF1NFCB BB DOORS

Products

Position	Product
1	PM MINI WIRING MANUAL
11	GEN WR78X12651
12	WR14X10330 GE Refrigerator Gasket
13	GEN WR12X10846
14	FASTENER HANDLE SS
15	WR02X12870 GE Refrigerator Bracket Support
16	WR01X10843 GE Refrigerator 1/4-20 UNC Screw
18	WR02X13378 GE Refrigerator Lower Right Hand Slide Bracket
19	WR02X13379 GE Refrigerator Left Hand Lower Slide Bracket
20	WR01X10885 GE Refrigerator Screw 1/4-20 RT Flat 3/4 S
27	WR17X20799 GE Refrigerator Slide Lower Assembly 21
30	BASKET LOWER SD
32	GEN WR78X12701
33	GEN WR78X12006
35	WR14X10237 GE Refrigerator French Door Gasket with Flap
36	GEN WR12X10847
37	WR01X10681 GE Refrigerator Fastener Handle Stainless Steel
38	GEN WR02X12407
39	GEN WR04X10161
40	WR02X10582 GE Refrigerator Modu Snug R
41	WR02X12363 GE Refrigerator Door Thimble
42	GEN WR02X12359
43	WR02X12360 GE Refrigerator Left-Hand Cam Closure
44	WR02X12364 GE Refrigerator Clear Dairy Door
45	WR71X10871 GE Refrigerator Dairy Compartment
46	BEVERAGE RACK
47	WR71X10875 GE Refrigerator Module Shelf Assembly
49	WR02X12022 GE Refrigerator Locking Handle
50	WR17X12830 GE Refrigerator Fixed Shelf Module
56	WR02X13380 GE Refrigerator Rail Holder Lower Right Hand 21
57	WR02X13381 GE Refrigerator Lower Left Hand Rail Holder
66	WR17X12753 GE Mullion Articulation
67	WR02X12469 GE Refrigerator French Door Bumper
155	WR02X10643 GE Refrigerator Handle Lock Bracket
160	WR02X13597 GE Refrigerator Divider Basket Bottom 21
684	WR01X10602 GE Refrigerator Screw 8-32 AB IHWS 3/8 S
852	WR01X10858 GE Refrigerator Screw 8-18 AB PNP 5/8 S
878	WR01X10939 GE Refrigerator Screw 10-14 PL FLT20 3/4 S
901	WR02X13387 GE Refrigerator Right Hand Gear Pinion
902	GEAR PINION LH
904	CROSS BAR PINION
907	WR01X10947 GE Refrigerator Fastener Push
