PFCF1PJZB WW CASE PARTS

PFCF1PJZB WW CASE PARTS

Written by

in

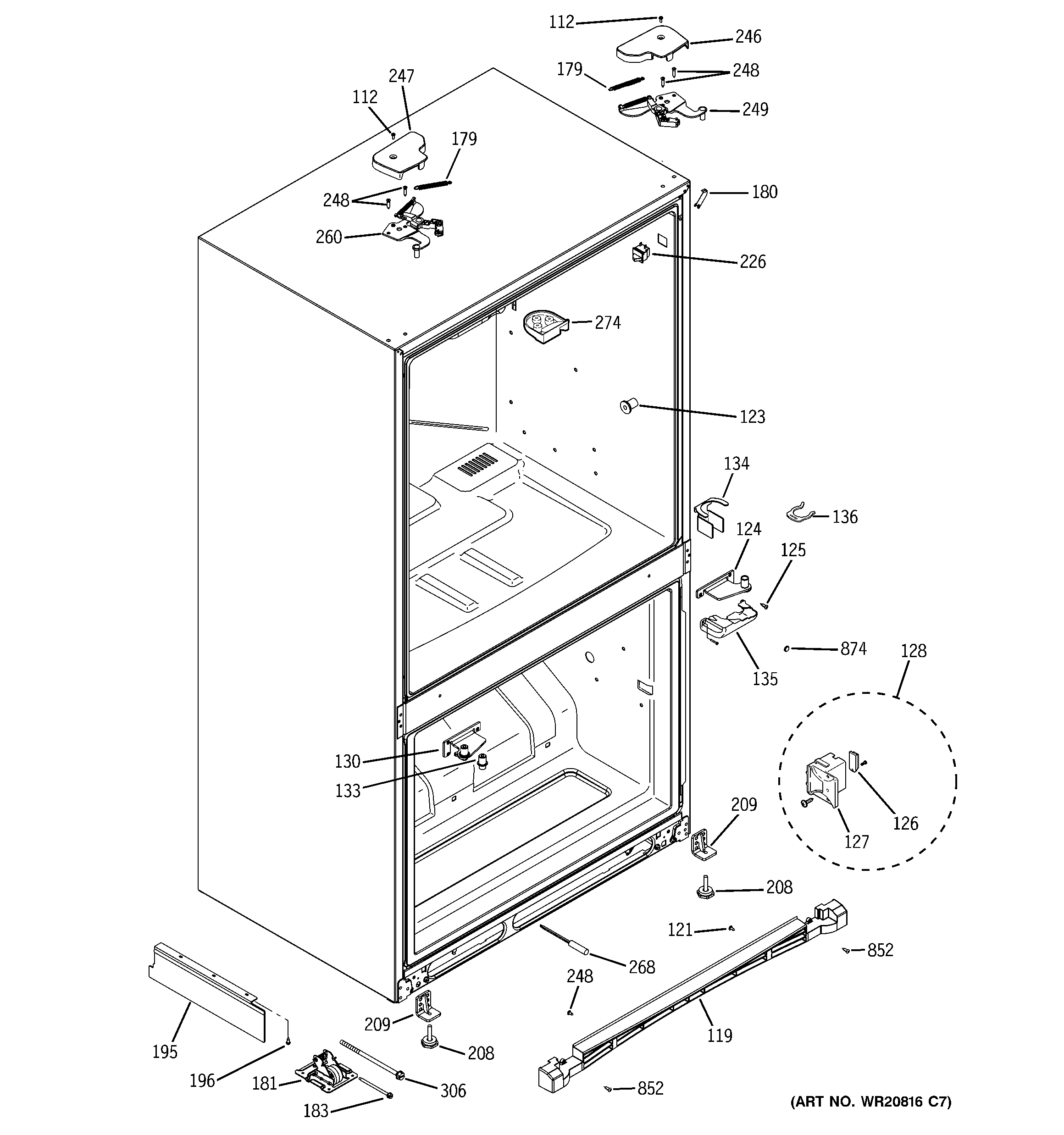

PFCF1PJZB WW CASE PARTS

Products

PositionProduct
112WR01X10379 GE Refrigerator Hinge Cover Screw
119WR02X12380 GE Refrigerator Base Grille Cover
119GEN WR02X12414
121WR01X10918 GE Refrigerator 12-24 Tapping Screw OVT 1.000"
123WR02X12187 GE Refrigerator Support Shelf
124GEN WR13X10432
124GEN WR13X10430
125WR01X10690 GE Refrigerator Screw 12-24 TT HXT20 .90 S
125WR01X10683 GE Refrigerator Screw 12-24 TT HXT20 .90 S
126WR02X12711 GE Refrigerator Humidity Sensor
127WR17X12443 GE Humidity Sensor Housing
128WR55X10748 GE Refrigerator Humidity Sensor Assembly
130WR13X10431 GE Refrigerator Left Hand Center Hinge Assembly
130GEN WR13X10433
133WR01X10793 GE Refrigerator Hinge Adjuster Pin
134SUPPORT WATER LINE
135GEN WR02X12590
135GEN WR02X12589
136CLIP LOCKING
179WR01X10827 GE Refrigerator Closure Spring
180WR02X10781 GE Refrigerator Corner Cap Black
180WR02X10640 GE Refrigerator White Cap Corner OC
181GEN WR02X12334
183WR01X10210 GE Refrigerator Mobility Screw
195WR17X12382 GE Air Separator Hinge Side
196WR01X10588 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
208WR01X10686 GE Refrigerator Leveling Screw
209WR02X12378 GE Leg Assembly Bracket
226WR23X37285 GE Light Switch
246GEN WR02X12415
246GEN WR02X12388
247GEN WR02X12389
247GEN WR02X12416
248WR01X10792 GE Refrigerator Screw 12-24 TT HX 7/8 S
249WR13X10434 GE Refrigerator Hinge Closure Assembly
249GEN WR13X10427
260GEN WR13X10435
260WR13X10429 GE Refrigerator Hinge Closure Assembly
268WR55X10025 GE Refrigerator Temperature Sensor
274WR02X13442 GE Top Mullion Striker
306WR02X12271 GE Refrigerator Mobility Screw
852WR01X10858 GE Refrigerator Screw 8-18 AB PNP 5/8 S
874GEN WR01X10855
