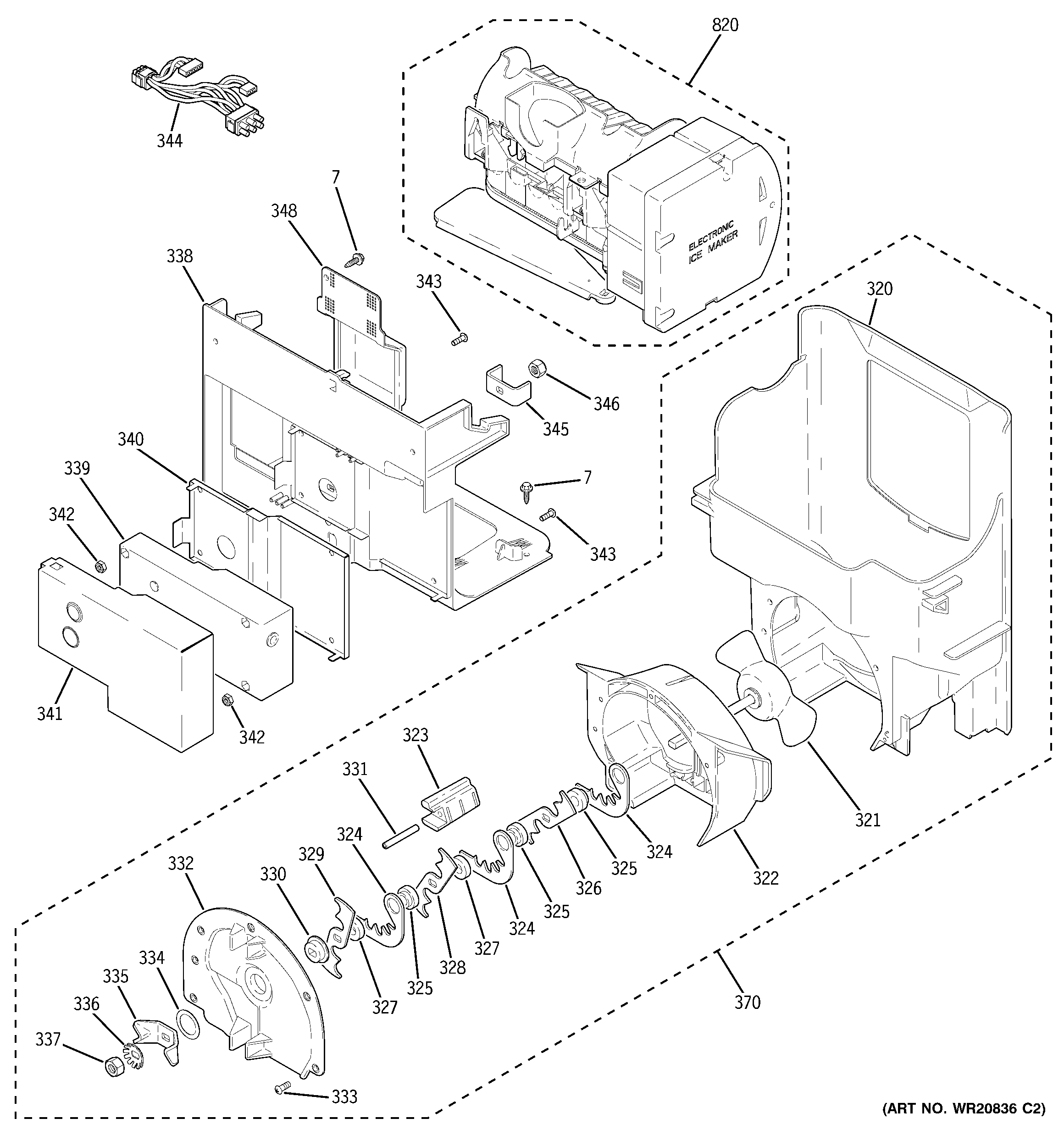

PFCF1RKZAWW ICE MAKER & DISPENSER

Products

Position	Product
7	WR01X10606 GE Refrigerator Screw 8-18 CA HX 1/2 S
320	BUCKET ICE
321	AGITATOR ASM
322	HOUSING CRUSHER
323	HOLDER STATIONARY BLADE
324	BLADE STATIONARY
325	WR2X4138 GE Refrigerator Spacer
326	MOVING BLADE CRUSHER
327	GEN WR02X4139
328	MOVING BLADE CRUSHER
329	MOVING BLADE CRUSHER
330	SPACER ACETAL
331	GEN WR02X4141
332	COVER CRUSHER
333	SCR 10-16 PL PNP 1/2 SS
334	WASHER COUPLING
335	COUPLING BUCKET
336	TAB WASHER
337	NUT 3/8-24 HEX SS
338	AUGER MOTOR COVER
339	MOTOR AUGER DC
340	FRONT COVER
341	REAR COVER
342	NUT HEX SS
343	WR01X10821 GE Screw 8-32 M Hex 1/2 S
344	HARNESS MOTOR AND RELAY
345	FORK
346	LOCK NUT 5/16-18 HEX SS
348	COVER ACCESS
370	ICE BUCKET ASM
820	WR30X28693 GE Refrigerator Icemaker
