PFCS1RKZH SS DISPENSER DOOR

PFCS1RKZH SS DISPENSER DOOR

Written by

in

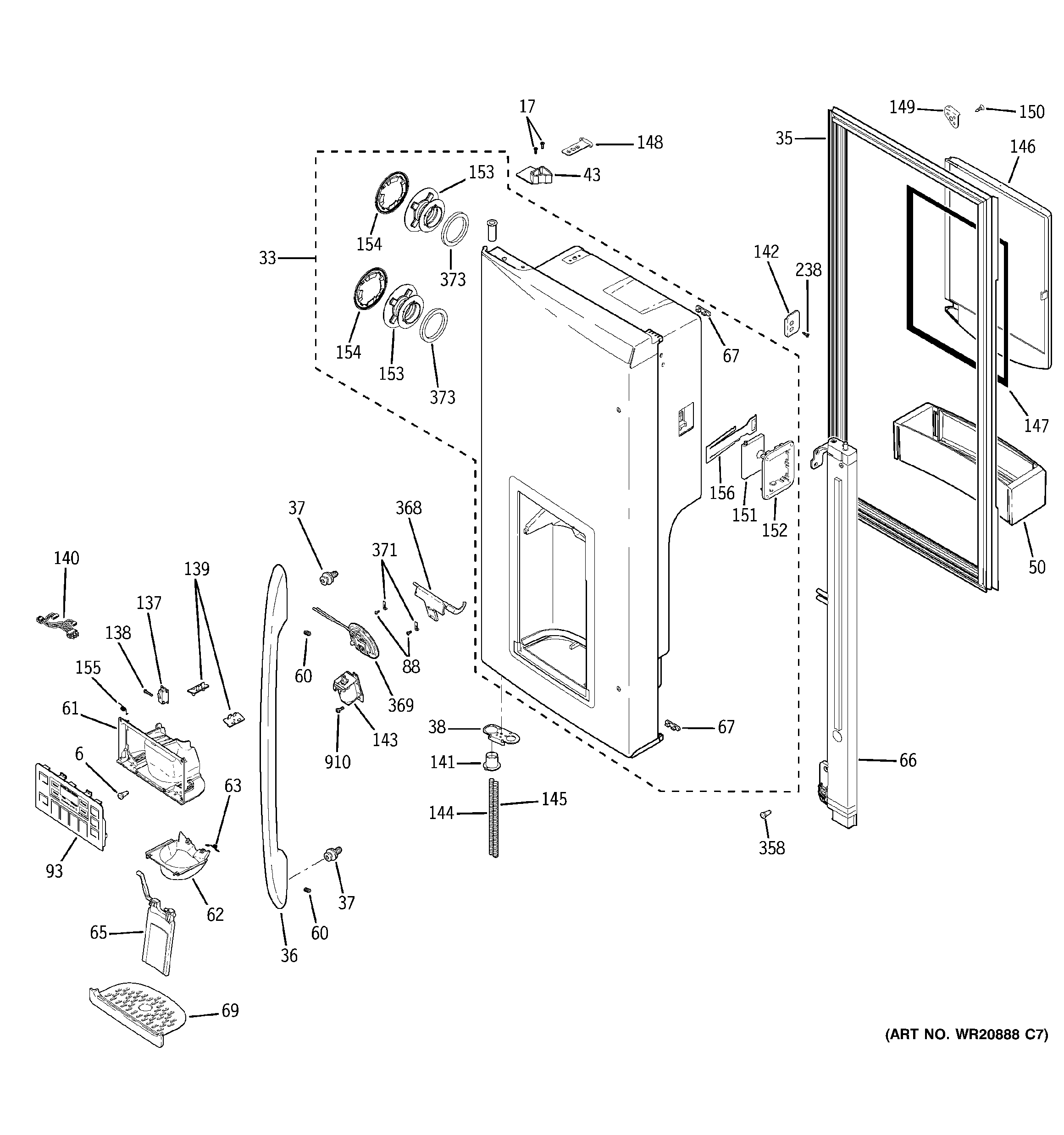

PFCS1RKZH SS DISPENSER DOOR

Products

PositionProduct
6WR02X13502 GE Rivet Clinch
33SERVICE KIT I&W DOOR
35GASKET FRENCH WITH FLAP
36GEN WR12X11028
37WR02X12028 GE Refrigerator Stainless Steel Handle Screw Fastener
38STOP DOOR BM
43CAM FF CLOSURE LH
50MODULE SHELF ASM FF
60WR01X10450 GE Refrigerator Screw Set
61WR17X34385 GE Refrigerator Dispenser Housing Shield Assembly
62WR17X12983 GE Refrigerator Ice Dispenser Funnel
63SPRING TORSION
65PADDLE ASM
66ARTICULATION MULLION ASM
67BUMPER FRENCH DOOR
69GRILL RECESS
93GEN WR55X11092
137WR23X10783 GE Refrigerator Dispenser Micro Switch
138WR02X12257 GE Refrigerator Stainless Steel Screw 4-10 PL PNP 3/4
139WR55X10899 GE Refrigerator Dispenser Lighting Board Assembly
140WR23X10665 GE Dispenser Recess Harness
141THIMBLE DOOR FF
142CLIP MULLION HINGE
143WR62X10055 GE Refrigerator Dispenser Door Solenoid Assembly
144WR02X13488 GE Refrigerator Spring Water Conduit
145SPRING WATER CONDUIT
146WR17X12984 GE Refrigerator Door Ice Box Assembly
147GASKET ICEBOX DOOR
148DOOR ICEBOX HINGE TOP
149DOOR ICEBOX HINGE BOTTOM
150SCR 8-18 HI-LO FLP 1/2 S
151LATCH BUTTON
152LATCH TRIM
153GASKET RETAINER
154PORT GASKET
155SPRING DUCT DOOR
156DOOR LATCH KIT BF I&W
238WR01X10789 GE Refrigerator Stainless Steel Screw 8-18 RNDW 5/8
358WR01X10065 GE Screw
368WR17X10706 GE Refrigerator Door Crank Recess
369DUCT DOOR HEATER ASM
371WR2X8818 GE Refrigerator Retainer
373FOAM TAPE
910WR01X10656 GE Refrigerator Screw 4-10 PL PNP 5/16 S5H
