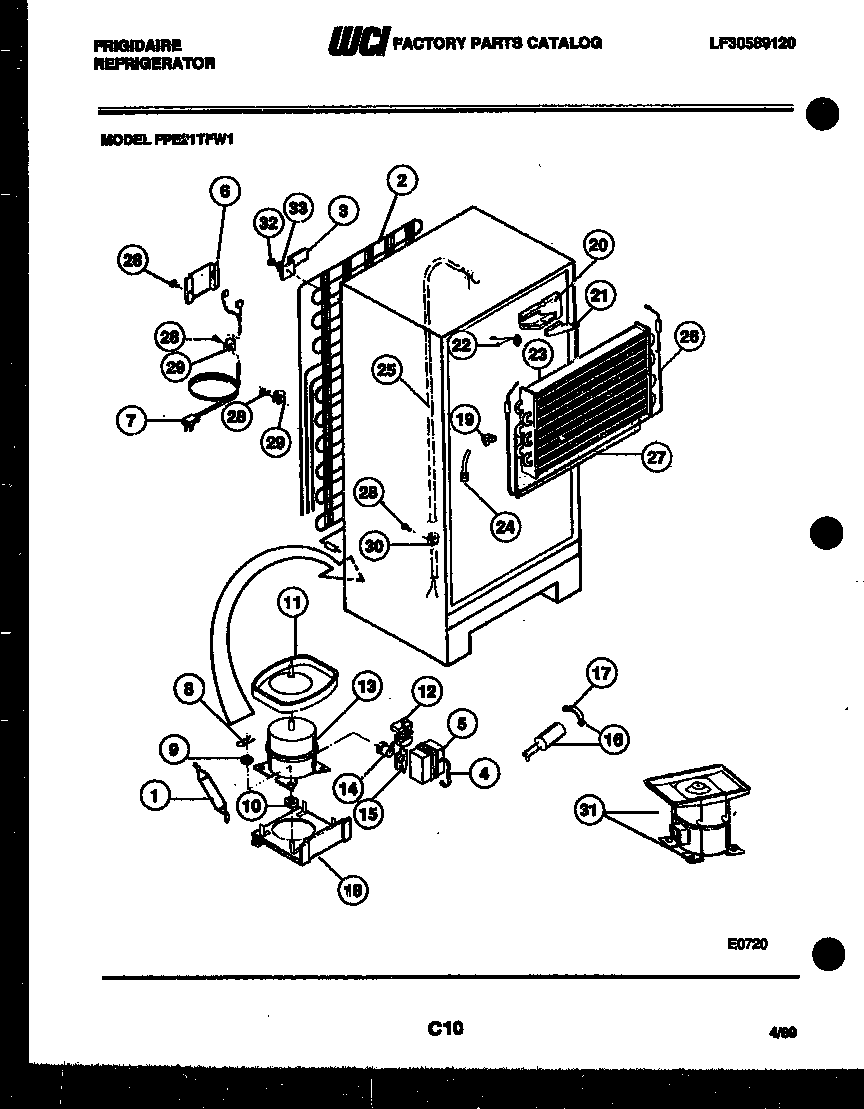

PFE21TFA1 06 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
NI	WCI 08009628
NI	DEFROST PAN & NUT
NI	HARNESS-WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED)
NI	5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
NI	WCI 9960001
NI	NUT
NI	WCI 08000187
1	5303305677 Frigidaire Replacement Filter Dryer Filters
2	WCI 08000094
3	WCI 08003600
4	STRAP-BALE
5	WCI 08016583
6	WCI 08013644
7	WCI 08000064
8	CLIP (4)
9	WCI 08003597
10	218513300 Frigidaire Refrigerator Compressor Mount Grommet
11	WCI 3001349
12	WCI 08017226
13	WCI 08950230
14	WCI 3202863
15	WCI 3202891
16	CAPACITOR-RUN
17	STRAP-CAPACITOR MTG
18	WCI 08013663
19	WCI 08017227
20	WCI 08013648
21	WCI 08013646
22	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
23	WCI 08000062
24	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
25	WCI 08000728
26	5317842502 Frigidaire Defrost Heater
27	WCI 08009569
28	5304455651 Frigidaire Refrigerator Screw
29	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
30	240396801 Frigidaire Refrigerator Tube Clamp
31	PAN RETAINER KIT-SERVICE
32	5308000039 Frigidaire Refrigerator Screw
33	WCI 08009617
