PFE28PYNJFS ICE MAKER & DISPENSER

PFE28PYNJFS ICE MAKER & DISPENSER

Written by

in

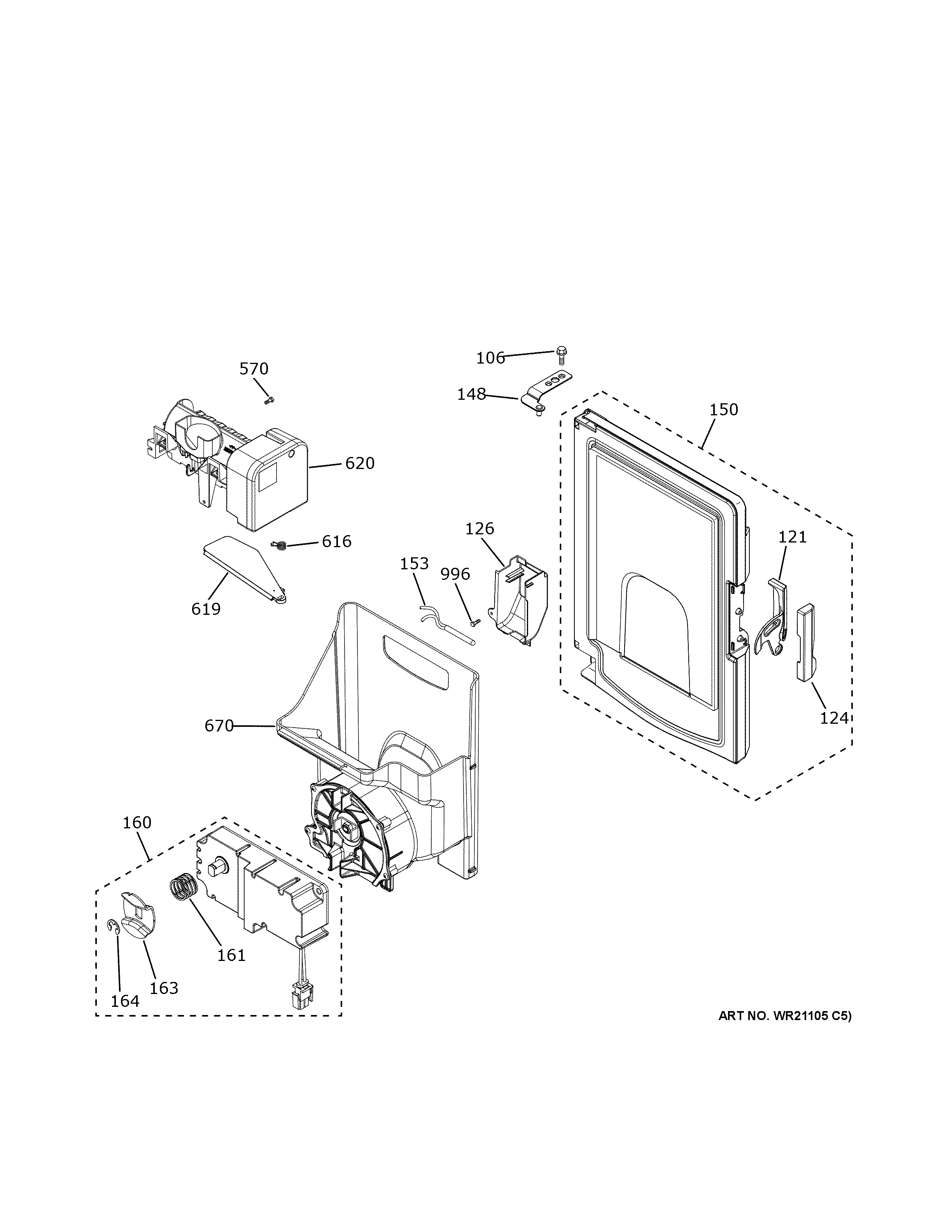

PFE28PYNJFS ICE MAKER & DISPENSER

Products

PositionProduct
106WR02X36719 GE Screw Flat 3.9-1.4 Ab 20 16 S
121LATCH ICEBOX DOOR
124WR02X23032 GE Refrigerator Cover
126ICE BOX THERMISTOR COVER
148WR13X10972 GE Refrigerator Hinge Top Door Icebox
150WR78X26087 GE Refrigerator Icebox Door Assembly
153WR55X10025 GE Refrigerator Temperature Sensor
160WR49X10322 GE Refrigerator Ice Bucket and Motor Kit
161WR02X13645 GE Refrigerator Clutch Spring Assembly
163WR02X13647 GE Refrigerator Clutch Coupling AM
164WR02X13648 GE Refrigerator E-Clip
570WR02X36721 GE Screw St4.0-1.4 Ab Ihxwt20 20
616WR01X11033 GE Refrigerator Spring Feeler Arm
619WR29X10110 GE Refrigerator IM Feeler Arm
620ICEMAKER
670WR30X10174 GE Refrigerator Ice Bucket and Crusher
996WR02X36717 GE Screw St4.8-1.6 Ab Trt20 19 S
