PFIC1NFZABV FREEZER SECTION

PFIC1NFZABV FREEZER SECTION

Written by

in

PFIC1NFZABV FREEZER SECTION

Products

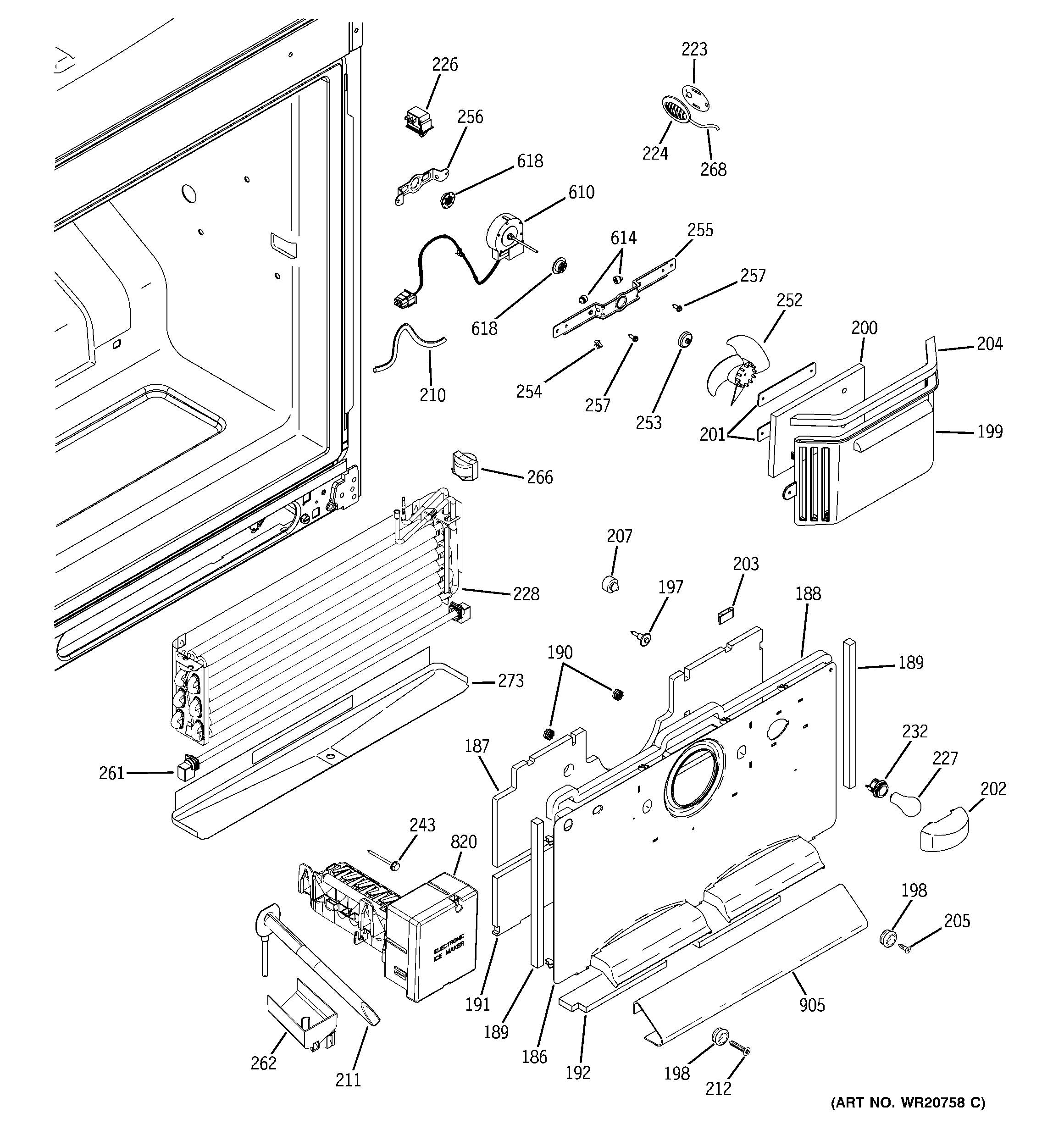

PositionProduct
186GEN WR17X12856
187FOAM PAD COVER EVAP
188WR14X10221 GE Refrigerator Foam Strip Adhesive
189WR14X10222 GE Adhesive Foam Strip
190WR02X11331 GE Refrigerator Grommet
191INSULATION COVER EVAP
192GEN WR14X10334
197WR01X10685 GE Scraper 8-18 Assembly
198WR02X10678 GE Refrigerator Grommet
199WR17X12254 GE Refrigerator Cover Evaporator Fan
200FOAM PAD COVER EVAP
201HOLDER FOAM PAD
202SHIELD LIGHT FZ
203WR02X10522 GE Refrigerator Clamp Tube
204WR14X10223 GE Adhesive Foam Strip
205WR01X10789 GE Refrigerator Stainless Steel Screw 8-18 RNDW 5/8
207BUMPER LID
210WR14X10267 GE Insulation Harness
211GROMMET AND TUBE ASM
212WR01X10857 GE Scr 8-18 Ab Flp 7/8 S
223WR02X10668 GE Refrigerator Shunt Sensor
224WR02X10647 GE Refrigerator Grille Sensor
226WR23X37285 GE Light Switch
227RANGE ONLY 40W 120V APPL BULB
228LOW SIDE ASM
232WR2X9391 GE Socket and Terminal
243WR01X10626 GE Refrigerator Screw 8-18 AB HXW 5/4 S
252EVAPORATOR FAN BLADE
253WR02X10322 GE Refrigerator Dust Cap B02
254WR02X11607 GE Refrigerator Wire Tie
255WR17X12507 GE Evaporator Fan Front Bracket
256WR02X10764 GE Refrigerator Evaporator Bracket
257WR01X10620 GE Refrigerator Screw 10-32
261WR51X10094 GE Refrigerator Defrost Heater
262WR29X10092 GE Refrigerator Ice Maker Fill Cup
266THERMOSTAT DEF
268WR55X10025 GE Refrigerator Temperature Sensor
273WR17X12303 GE Refrigerator Drain Trough Tube
610WR60X10277 GE Refrigerator Evaporator Fan DC Motor Assembly
614BUMPER
820WR30X35285 GE Refrigerator Icemaker Assembly
905DIVERTER AIR
