PFIE1NFWBABV FREEZER SECTION

PFIE1NFWBABV FREEZER SECTION

Written by

in

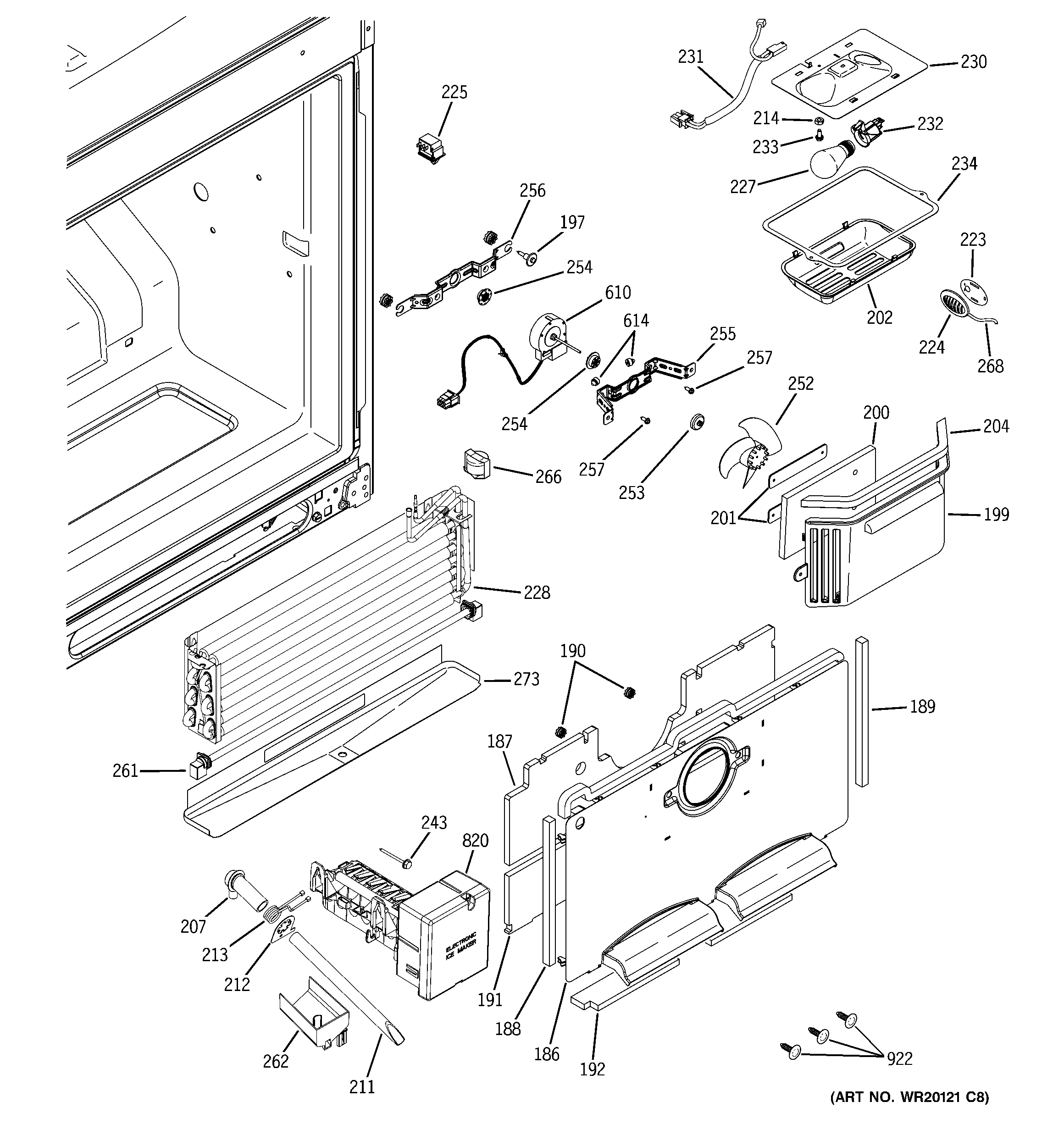

PFIE1NFWBABV FREEZER SECTION

Products

PositionProduct
186GEN WR17X12251
187GEN WR14X10220
188WR14X10221 GE Refrigerator Foam Strip Adhesive
189WR14X10222 GE Adhesive Foam Strip
190WR02X11331 GE Refrigerator Grommet
191INSULATION COVER EVAP
192GEN WR14X10224
197WR01X10685 GE Scraper 8-18 Assembly
199WR17X12254 GE Refrigerator Cover Evaporator Fan
200FOAM PAD COVER EVAP
201HOLDER FOAM PAD
202GEN WR17X12255
204WR14X10223 GE Adhesive Foam Strip
207WR2X8474 GE Fill Tube
211GEN WR17X12258
212GEN WR17X12259
213GEN WR51X10099
214WR01X10212 GE Refrigerator 8-32 Nut
223WR02X10668 GE Refrigerator Shunt Sensor
224WR02X10647 GE Refrigerator Grille Sensor
225FREEZER LIGHT SWITCH
227WR02X12207 GE Refrigerator Net Bulb Light
228LOW SIDE ASM
230GEN WR02X12386
231WR23X10536 GE Freezer Light Harness
232WR2X9014 GE Refrigerator Socket & Terminal C02
233WD2X323D GE Dishwasher Screw Package
234GEN WR14X10236
243WR01X10626 GE Refrigerator Screw 8-18 AB HXW 5/4 S
252EVAPORATOR FAN BLADE
253WR02X10322 GE Refrigerator Dust Cap B02
254WR02X12008 GE Refrigerator Evaporator Fan Grommet
255WR17X12269 GE Refrigerator Evaporator Fan Front Bracket
256WR17X12270 GE Rear Evaporator Fan Bracket
257WR01X10620 GE Refrigerator Screw 10-32
261HEATER DEF ASM
262WR29X10092 GE Refrigerator Ice Maker Fill Cup
266THERMOSTAT DEF
268WR55X10025 GE Refrigerator Temperature Sensor
273WR17X12303 GE Refrigerator Drain Trough Tube
610WR60X10185 GE Refrigerator Evaporator Fan Motor
614BUMPER
820WR30X10081 GE Refrigerator Electronic IM INTL ROHS
922GEN WR02X10975
