PFQ83HSLW0WW CONTROLS & DISPENSER

Products

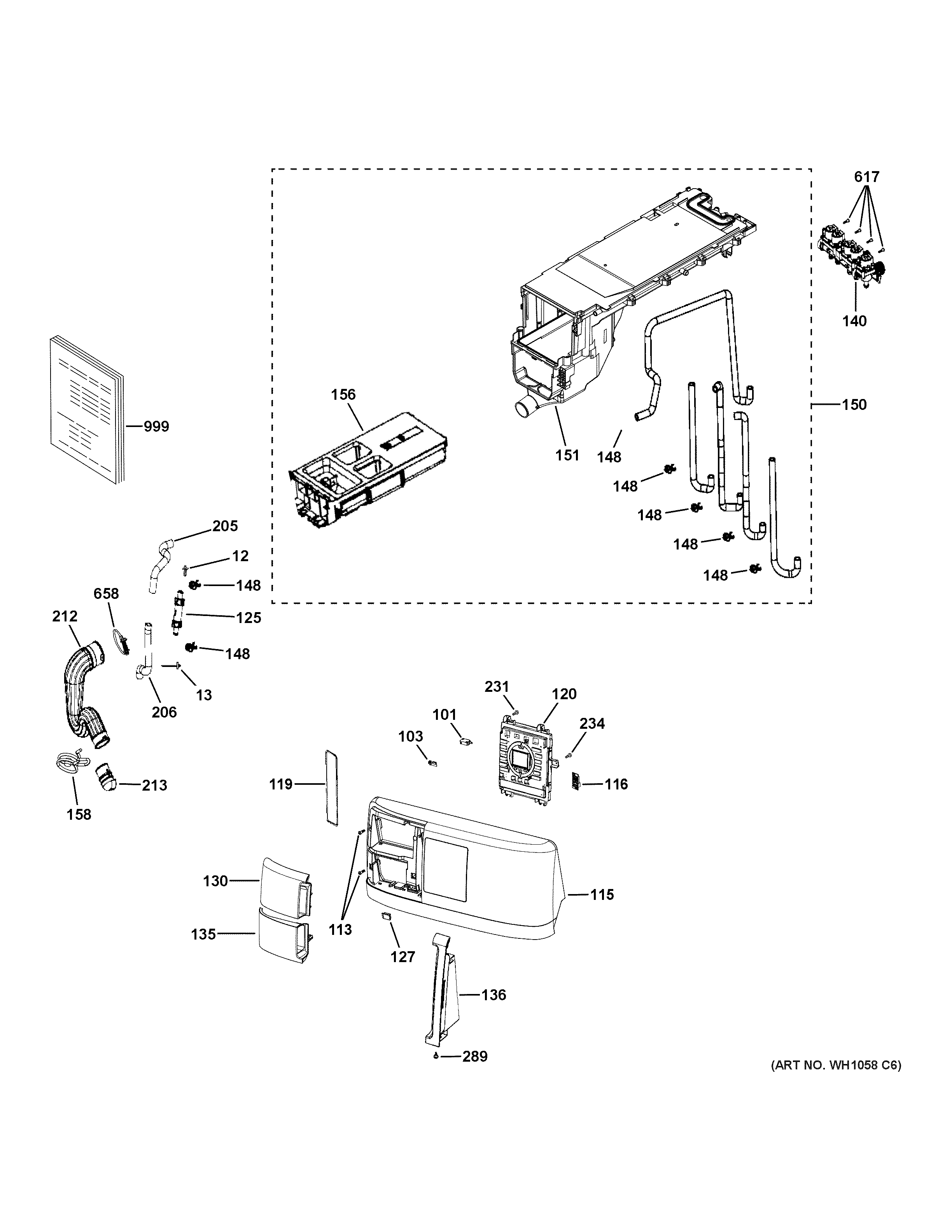

PositionProduct
12WH02X29626 GE Ground Harness Clamp
13WR01X10745 GE Wire Tie
101OUT OF BALANCE MICRO SWITCH
103MICRO SWITCH (LINT FILTER) GAS
113WE02X26338 GE Front Panel Screws
115CONTROL PANEL COMBO WHITE
116WH22X36577 GE Wi-Fi and Bluetooth Board with Instructions
119WH01X36261 GE Heat Shield User Interface
120UI ASM COMBO CORE
125WE04X27737 GE One-Way Valve
127WH01X29669 GE RJ45 Cover
130DETERGENT DRAWER HANDLE WHITE PET HAIR
135LOWER DISPENSER FASCIA WHITE
136LINT FILTER HANDLE COMBO WHITE
140WH23X35712 GE Water Valve Assembly
148WH01X26244 GE Clamp Tube
150MANUAL DISPENSER ASSEMBLY
151WH41X36319 GE Dispenser Tank Assembly
156DETERGENT DISPENSER DRAWER
158WH01X26320 GE Internal Drain Hose To Air C
205WH41X36777 GE Glass Cleaning Hose Lower
206WH41X36778 GE Upper Glass Cleaning Hose
212WH41X35729 GE Dispenser Hose to Gasket
213WH41X29621 GE Dispenser Nozzle Fill Hose
231WH02X27685 GE Screw St4 10-B
234WH02X26515 GE Screw
289WH02X29618 GE Door Strike Screw
617WH02X27118 GE Water Valve Screws
658WH01X27149 GE Washer Clamp
999PM QUICK OWNERS MANUAL
999PM MINI MANUAL AND WIRING
