PFQ83HSPW0RS FRONT PANEL & DOOR

PFQ83HSPW0RS FRONT PANEL & DOOR

Written by

in

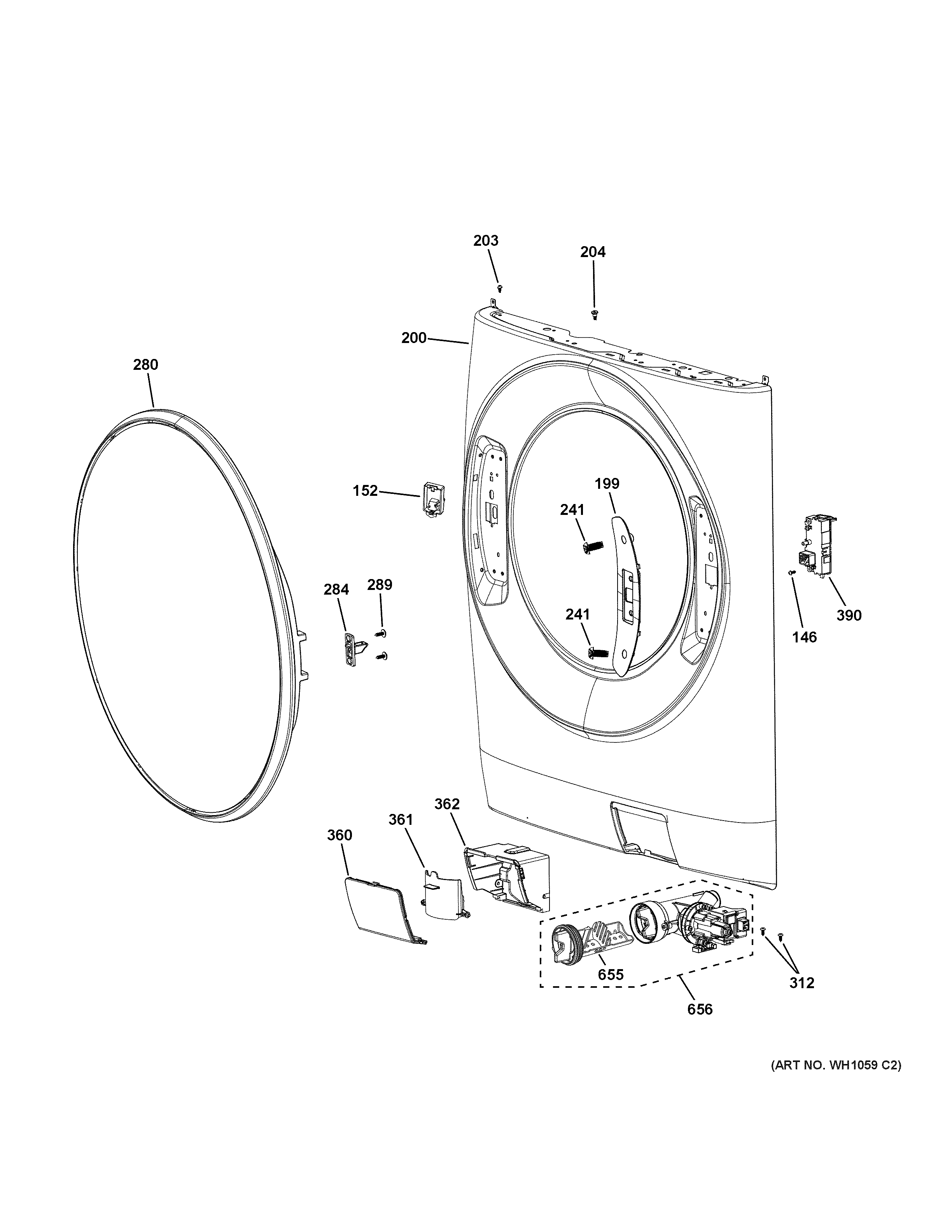

PFQ83HSPW0RS FRONT PANEL & DOOR

Products

PositionProduct
146WH02X26240 GE Screw
199WH01X30359 GE Dishwasher Door Latch Harness Holder
200FRONT PANEL COMBO SAPPHIRE BLUE
203WH02X30339 GE Ground Screw
204WH02X26236 GE Screw Assembly
241WH02X30337 GE Door Hinge Screw
280DOOR ASSEMBLY COMBO CORE
284WH01X32580 GE Washer Door Latch
289WH02X29618 GE Door Strike Screw
312WH02X30340 GE Drain Hose Fixing Screw
360WH11X30365 GE Royal Drain Pump Access Door
361WH11X29650 GE Drain Pump Funnel
362WH11X29644 GE Drain Pump Housing
390WH01X29528 GE Door Lock
655WH23X38617 GE Pump Filter with Seal
656DRAIN PUMPS & FILTER
