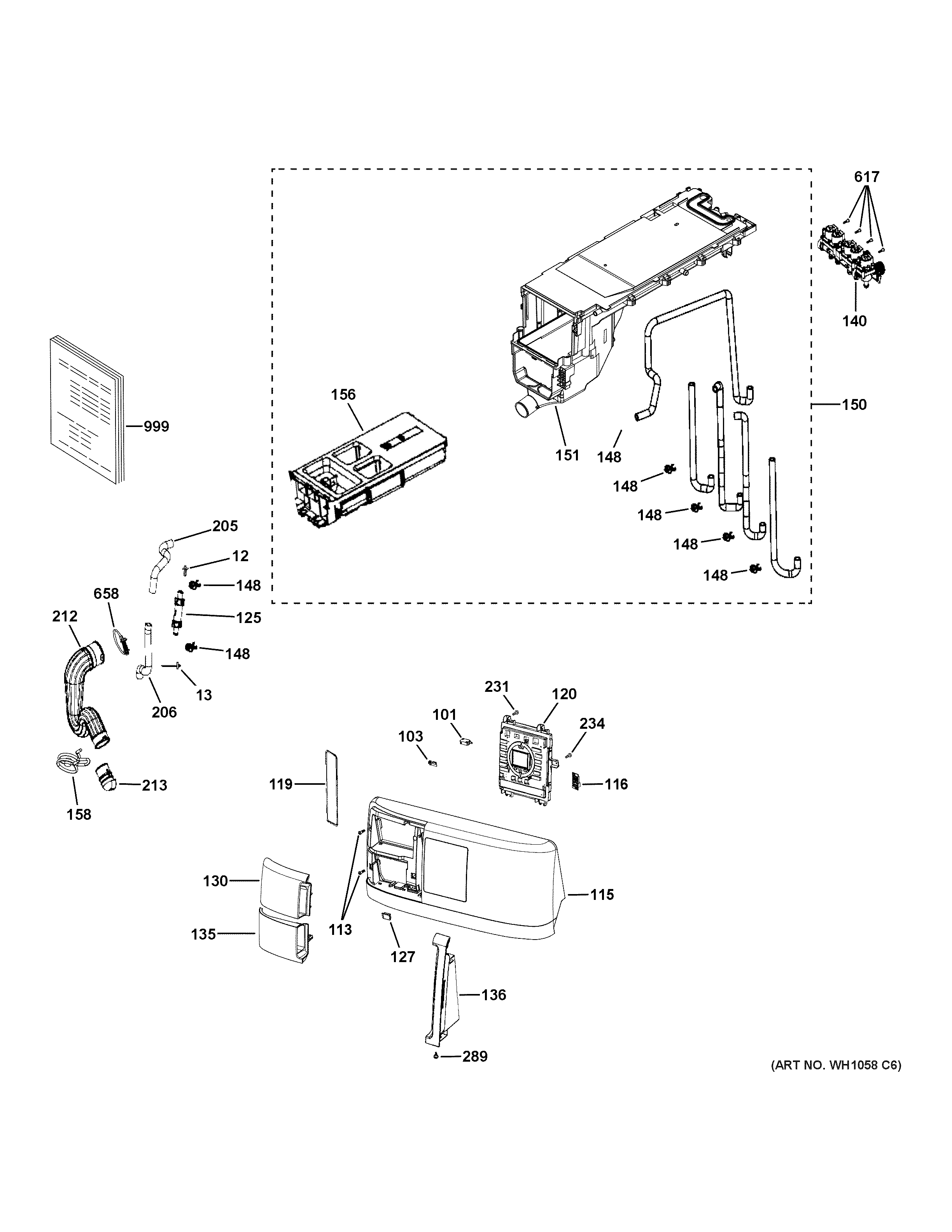

PFQ83HSSW0WW CONTROLS & DISPENSERadmin2025-04-26T11:04:02+00:00PFQ83HSSW0WW CONTROLS & DISPENSER ProductsPositionProduct12WH02X29626 GE Ground Harness Clamp13WR01X10745 GE Wire Tie101OUT OF BALANCE MICRO SWITCH103MICRO SWITCH (LINT FILTER) GAS113WE02X26338 GE Front Panel Screws115CONTROL PANEL COMBO WHITE116WH22X36577 GE Wi-Fi and Bluetooth Board with Instructions119WH01X36261 GE Heat Shield User Interface120UI ASM COMBO CORE125WE04X27737 GE One-Way Valve127WH01X29669 GE RJ45 Cover130DETERGENT DRAWER HANDLE WHITE POWERSTEAM135LOWER DISPENSER FASCIA WHITE136LINT FILTER HANDLE COMBO WHITE140WH23X35712 GE Water Valve Assembly148WH01X26244 GE Clamp Tube150MANUAL DISPENSER ASSEMBLY151WH41X36319 GE Dispenser Tank Assembly156DETERGENT DISPENSER DRAWER158WH01X26320 GE Internal Drain Hose To Air C205WH41X36777 GE Glass Cleaning Hose Lower206WH41X36778 GE Upper Glass Cleaning Hose212WH41X35729 GE Dispenser Hose to Gasket213WH41X29621 GE Dispenser Nozzle Fill Hose231WH02X27685 GE Screw St4 10-B234WH02X26515 GE Screw289WH02X29618 GE Door Strike Screw617WH02X27118 GE Water Valve Screws658WH01X27149 GE Washer Clamp999PM QUICK OWNERS MANUAL999PM MINI MANUAL AND WIRING
