PFQ83HSSW0WW TUB & MOTOR

PFQ83HSSW0WW TUB & MOTOR

Written by

in

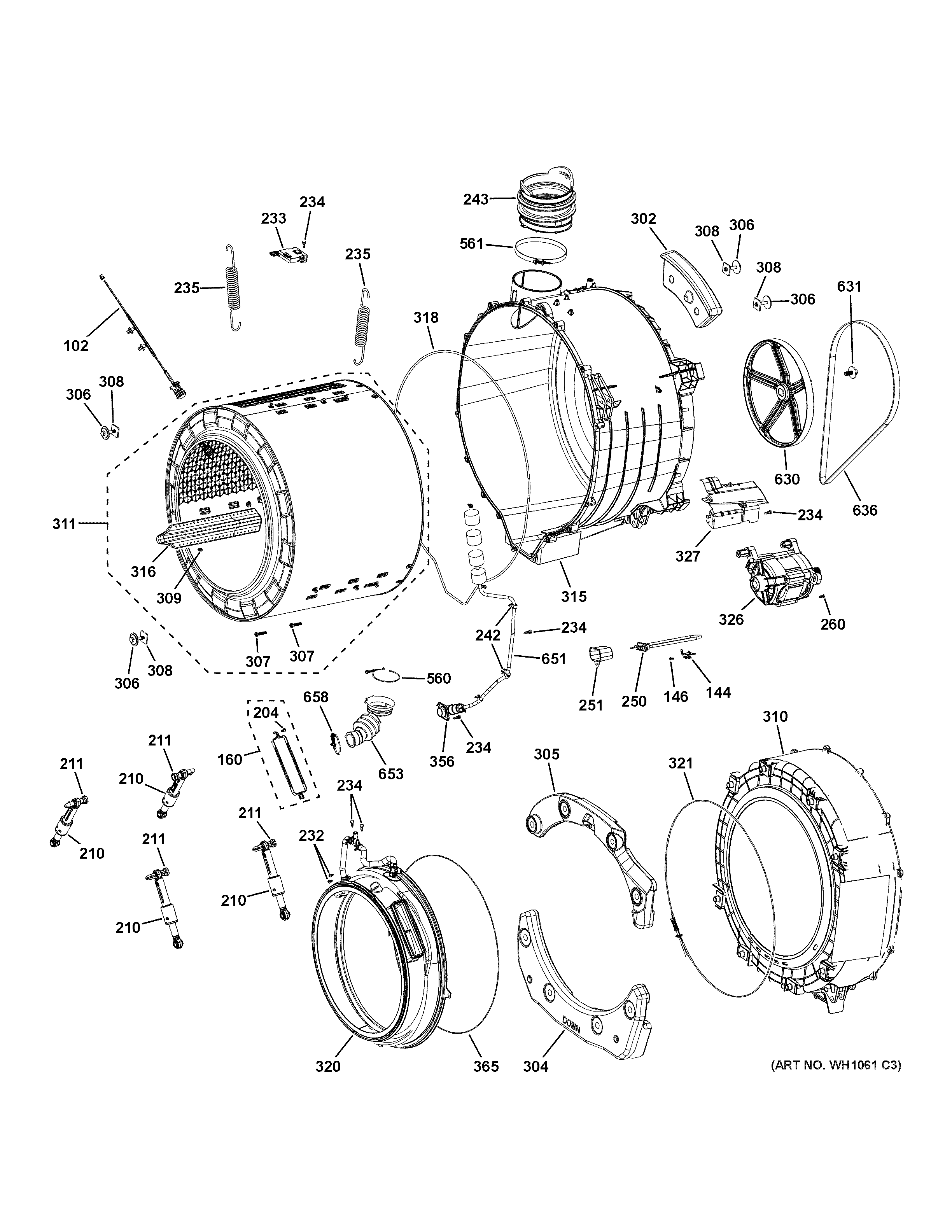

PFQ83HSSW0WW TUB & MOTOR

Products

PositionProduct
102WH01X29685 GE LED Light
144WH13X29684 GE Heater Bracket
146WH02X26240 GE Screw
160LOWER TRANSITION DUCT CLAMP
204WH02X26236 GE Screw Assembly
210WH03X29516 GE Suspension Damper
211DAMPER PIN
232WH02X30343 GE Hinge Base Fastening Screw
233ACCELEROMETER
234WH02X26515 GE Screw
235WH02X35716 GE Suspension Spring
242WH02X29656 GE Pressure Hose Clamp
243DUCT BOOT (TUB TO HP)
250WH11X29552 GE Heater
251WH13X29683 GE Heater Shield
260WH02X26905 GE Drive Motor Bolt
302WH02X29660 GE Rear Counterweight Assembly
304WH01X29648 GE Counterweight Lower
305UPPER FRONT COUNTERWEIGHT
306WH02X29657 GE Bolt Counterweight
307WH02X26297 GE Tub Bolt
308COUNTERWEIGHT FLANGE NUT
309WH02X30341 GE Basket Baffle Screw
310WH21X29646 GE Front Tub Assembly
311BASKET, BAFFLE & TRUNION ASSEMBLY
315WH21X35696 GE Rear Tub Assembly
316WH13X29679 GE Baffle
318WH05X29620 GE Seal Tub
320WH05X35706 GE Combo Tub Gasket
321WH01X29615 GE Inner Clamp Gasket
326MOTOR
327WH01X33597 GE Motor Shield
356AIR CHAMBER MODULE
365BOOT GASKET CLAMP
560WH01X26319 GE Washer Hose Clip Connector
561DUCT BOOT CLAMP
630WH03X29622 GE Appliance Pulley
631WH02X30342 GE Screw Pulley
636WH03X29522 GE Driver Belt Assembly
651WH41X29630 GE Hose Pressure
653WH41X29628 GE Tub to Pump Hose
658WH01X27149 GE Washer Clamp
