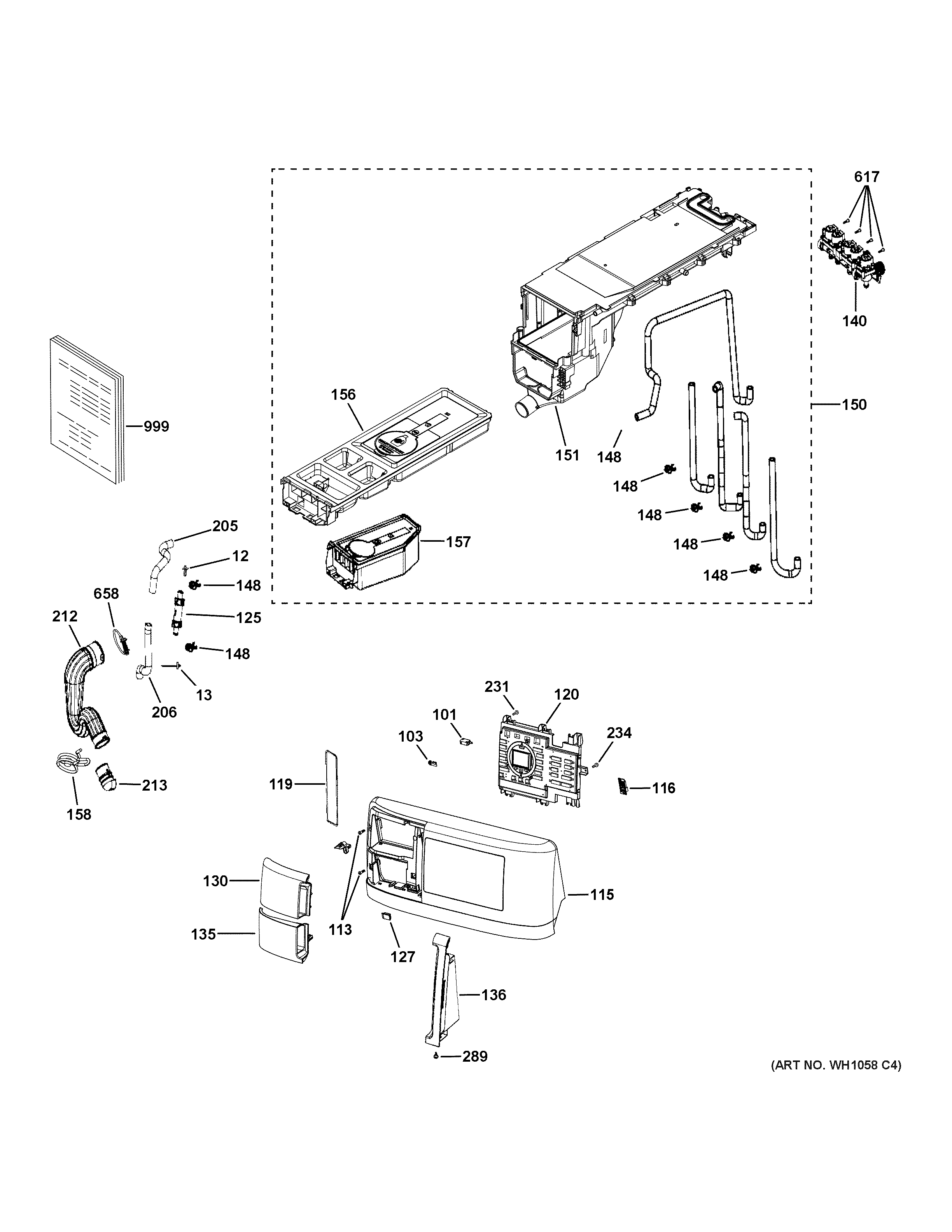

PFQ97HSPV0DS CONTROLS & DISPENSER

Written by

Products

Position	Product
12	WH02X29626 GE Ground Harness Clamp
13	WR01X10745 GE Wire Tie
101	OUT OF BALANCE MICRO SWITCH
103	MICRO SWITCH (LINT FILTER) GAS
113	WE02X26338 GE Front Panel Screws
115	WH13X36271 GE Control Panel Combo Dark Slate
116	WH22X36577 GE Wi-Fi and Bluetooth Board with Instructions
119	WH01X36261 GE Heat Shield User Interface
120	WH22X35724 GE User Interface Combo Board
125	WE04X27737 GE One-Way Valve
127	WH01X29669 GE RJ45 Cover
130	WH01X35703 GE Detergent Drawer Handle
135	SOFTENER DRAWER HANDLE
136	WH01X35710 GE Lint Filter Handle
140	WH23X35712 GE Water Valve Assembly
148	WH01X26244 GE Clamp Tube
150	WH41X36779 GE Smart Dispenser Assembly
151	WH41X36319 GE Dispenser Tank Assembly
156	DETERGENT SMART DISPENSER
157	SOFTENER DISPENSER DRAWER
158	WH01X26320 GE Internal Drain Hose To Air C
205	WH41X36777 GE Glass Cleaning Hose Lower
206	WH41X36778 GE Upper Glass Cleaning Hose
212	WH41X35729 GE Dispenser Hose to Gasket
213	WH41X29621 GE Dispenser Nozzle Fill Hose
231	WH02X27685 GE Screw St4 10-B
234	WH02X26515 GE Screw
289	WH02X29618 GE Door Strike Screw
617	WH02X27118 GE Water Valve Screws
658	WH01X27149 GE Washer Clamp
999	PM QUICK OWNERS MANUAL
999	PM MINI MANUAL AND WIRING
