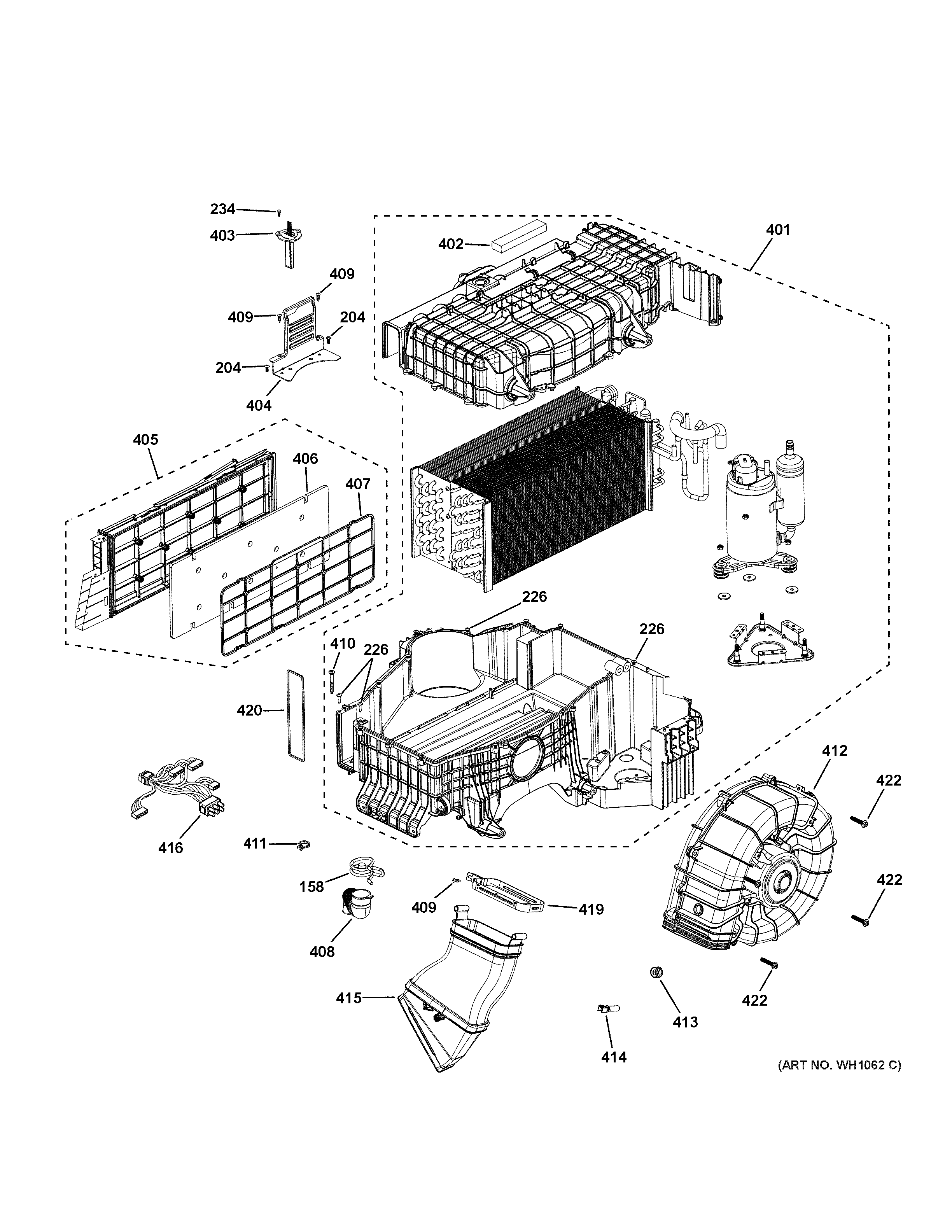

PFQ97HSPV0DS HEAT PUMP & FILTER ASSEMBLYadmin2025-04-26T11:04:53+00:00PFQ97HSPV0DS HEAT PUMP & FILTER ASSEMBLY ProductsPositionProduct158WH01X26320 GE Internal Drain Hose To Air C204WH02X26236 GE Screw Assembly226WH02X26247 GE Housing Screw ST4 12234WH02X26515 GE Screw401WE03X36780 GE Heat Pump Module and Support Assembly402TOP FOAM BLOCK403WE04X35682 GE Humidity Sensor (NTC4) Outlet Temperature404HP SUPPORT405WH01X35685 GE Lint Filter Assembly406WH01X35719 GE Washer Dryer Filter Sponge407WE16X36877 GE Scaffold Lint Filter408WE41X35738 GE Water Pipe Condenser409TOP PANEL GUIDE PIN SCREW410SCREW ST4.2*60411WH01X26245 GE Tub Vent Hose Clamp412WE16X35694 GE Blower Fan Assembly413WE05X29927 GE Temperature Sensor Gasket414TEMPERATURE SENSOR415WH01X35708 GE Transition Duct (Fan To Gasket416WE08X36258 GE Heat Exchanger Power Harness419CLAMP FAN TO GASKET420WE01X36265 GE Lint Filter Handle Seal Strip422WE02X27161 GE Air Plenum to Tub Bracket
