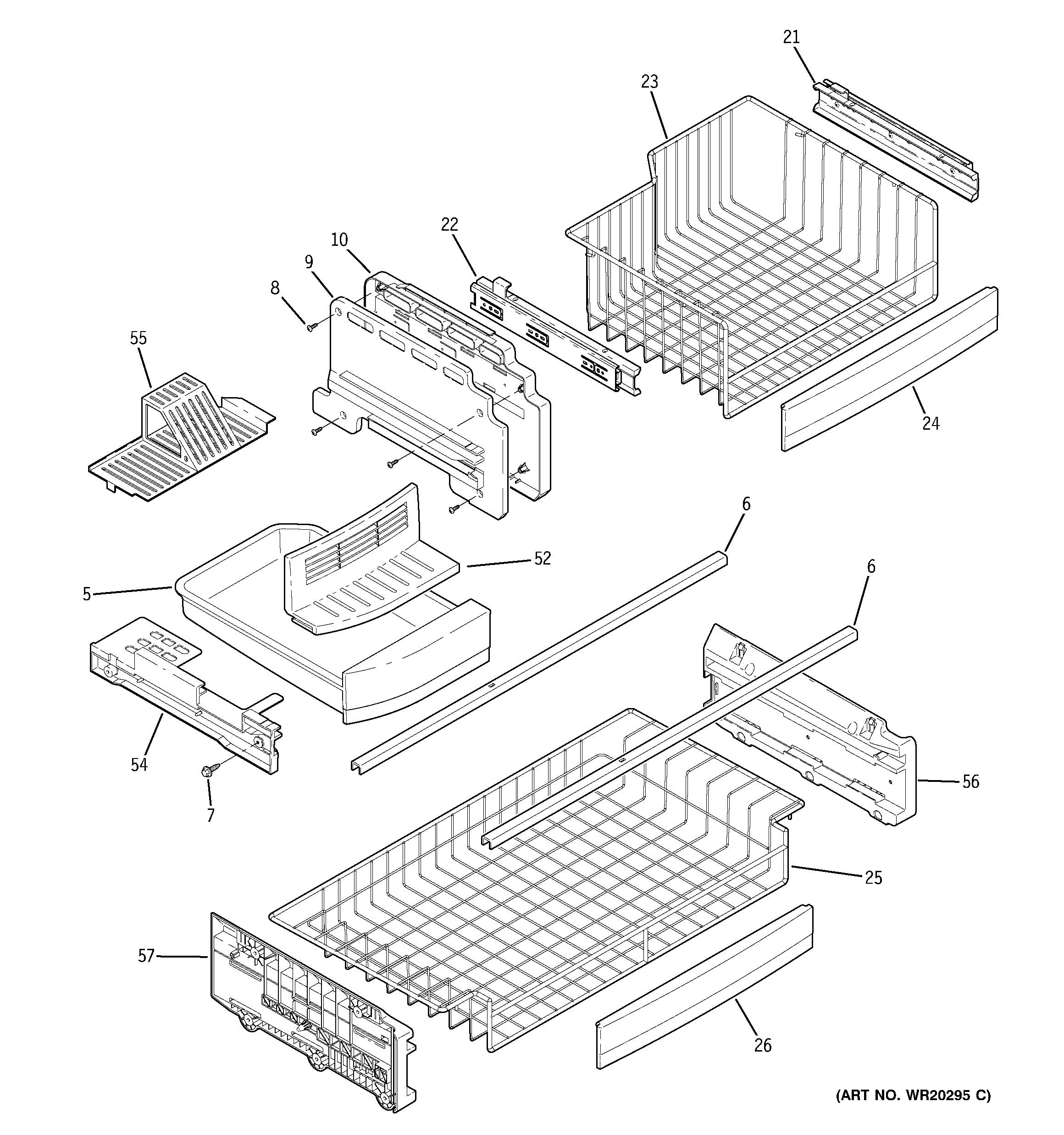

PFSE5NJWBDSS FRESH FOOD SECTION

PFSE5NJWBDSS FRESH FOOD SECTION

Written by

in

PFSE5NJWBDSS FRESH FOOD SECTION

Products

PositionProduct
5GEN WR30X10088
6GEN WR02X12692
7WR01X10606 GE Refrigerator Screw 8-18 CA HX 1/2 S
8WR01X10607 GE Scraper 8-18 Ab Phr 1/2 S
9GEN WR02X12418
10GEN WR02X12417
21SLIDE ASM UPPER
22WR72X10278 GE Refrigerator Slide Assembly Upper
23GEN WR21X10173
24GEN WR12X10849
25GEN WR21X10144
26GEN WR12X10850
52GEN WR17X12312
54GEN WR72X10228
55COVER BUCKET ICE
56GEN WR02X12374
57GEN WR02X12375
214WR01X10212 GE Refrigerator 8-32 Nut
216WR17X12260 GE Air Tower Cover
217WR17X12261 GE EPS Air Tower
218WR17X12262 GE Refrigerator Air Tower Back EPS
219AIR DAMPER ASSM
220GASKET FF INLET
221WR14X10228 GE Refrigerator Tower Gasket
222GASKET TOWER FF
223WR02X10668 GE Refrigerator Shunt Sensor
224WR02X10647 GE Refrigerator Grille Sensor
227WR02X12207 GE Refrigerator Net Bulb Light
229GEN WR17X12264
232WR2X9014 GE Refrigerator Socket & Terminal C02
235GEN WR17X12265
236WR17X12266 GE Refrigerator EPS Vent Duct Vertical
240WR02X12387 GE Refrigerator Reflector
241GEN WR01X1792
263GEN WR17X12300
264GSWF GE Replacement GE SmartWater Water Filter Cartridge
265GEN WR17X12415
268WR55X10025 GE Refrigerator Temperature Sensor
269WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
270WR17X12301 GE Refrigerator Filter and Tube Assembly
271WR17X22073 GE Refrigerator GSWF Bypass
272WR17X12299 GE Refrigerator Lower Filter Cover Assembly
