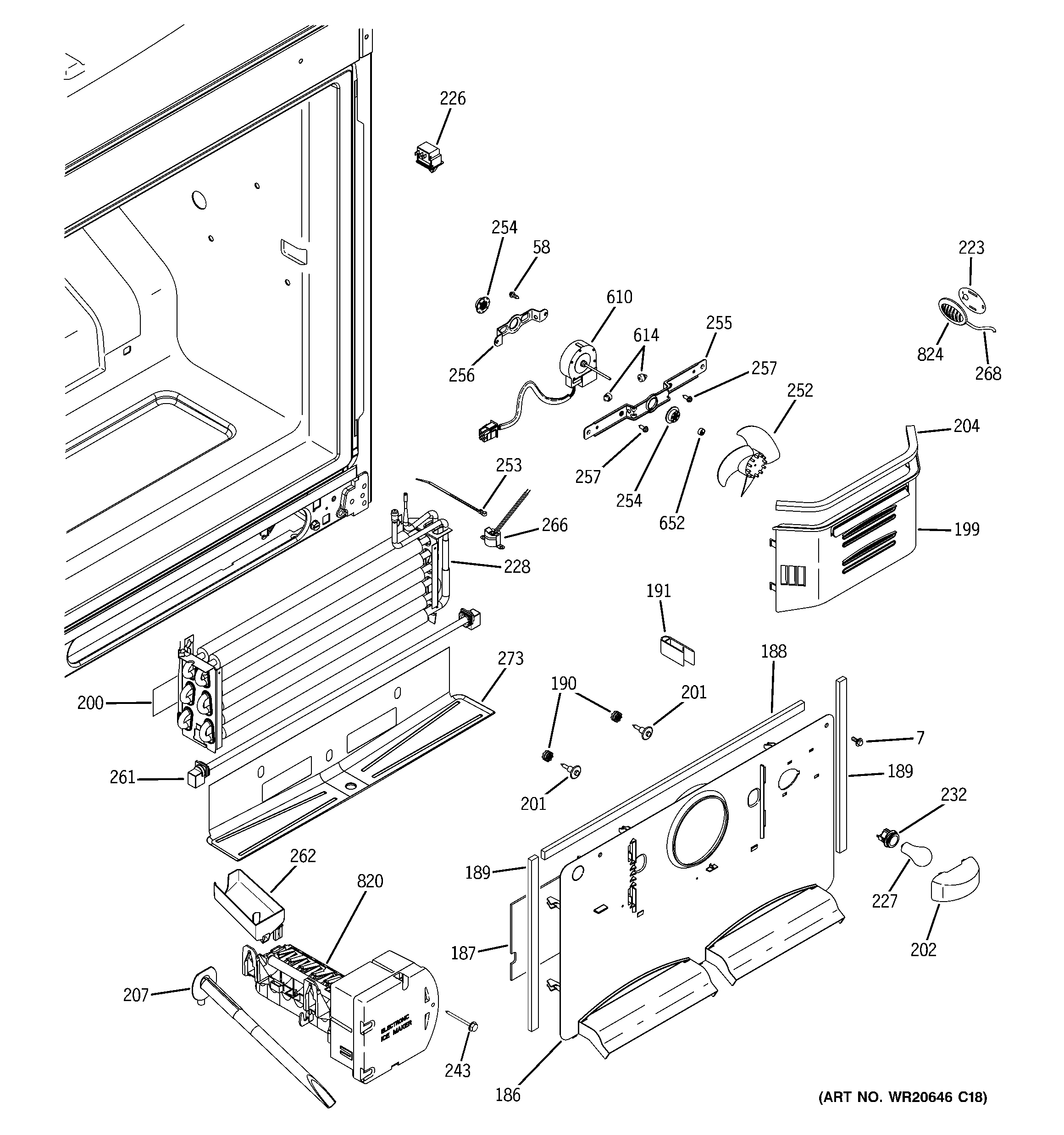

PFSF0MFCA BB FREEZER SECTION

PFSF0MFCA BB FREEZER SECTION

Written by

in

PFSF0MFCA BB FREEZER SECTION

Products

PositionProduct
7WR01X10606 GE Refrigerator Screw 8-18 CA HX 1/2 S
186COVER EVAP
187FOAM COVER EVAP
188WR14X10276 GE Adhesive Foam Strip
189GEN WR14X10262
190WR02X11331 GE Refrigerator Grommet
199GEN WR17X12575
200WR14X10267 GE Insulation Harness
201WR01X10685 GE Scraper 8-18 Assembly
202SHIELD LIGHT FZ
204GEN WR14X10264
207GEN WR17X12788
223WR02X10668 GE Refrigerator Shunt Sensor
226WR23X37285 GE Light Switch
227RANGE ONLY 40W 120V APPL BULB
228LOW SIDE ASM
232WR2X9391 GE Socket and Terminal
243WR01X10626 GE Refrigerator Screw 8-18 AB HXW 5/4 S
252EVAPORATOR FAN BLADE
255WR02X11863 GE Refrigerator Condenser Fan Bracket (Mounting)
256WR17X12507 GE Evaporator Fan Front Bracket
266THERMOSTAT DEF
268WR55X10025 GE Refrigerator Temperature Sensor
273TROUGH DRAIN ASM
610WR60X10277 GE Refrigerator Evaporator Fan DC Motor Assembly
614BUMPER
652WR02X12149 GE Refrigerator Ring
820WR30X10093 GE Refrigerator Ice Maker
824WR02X13224 GE Refrigerator Grille Sensor
