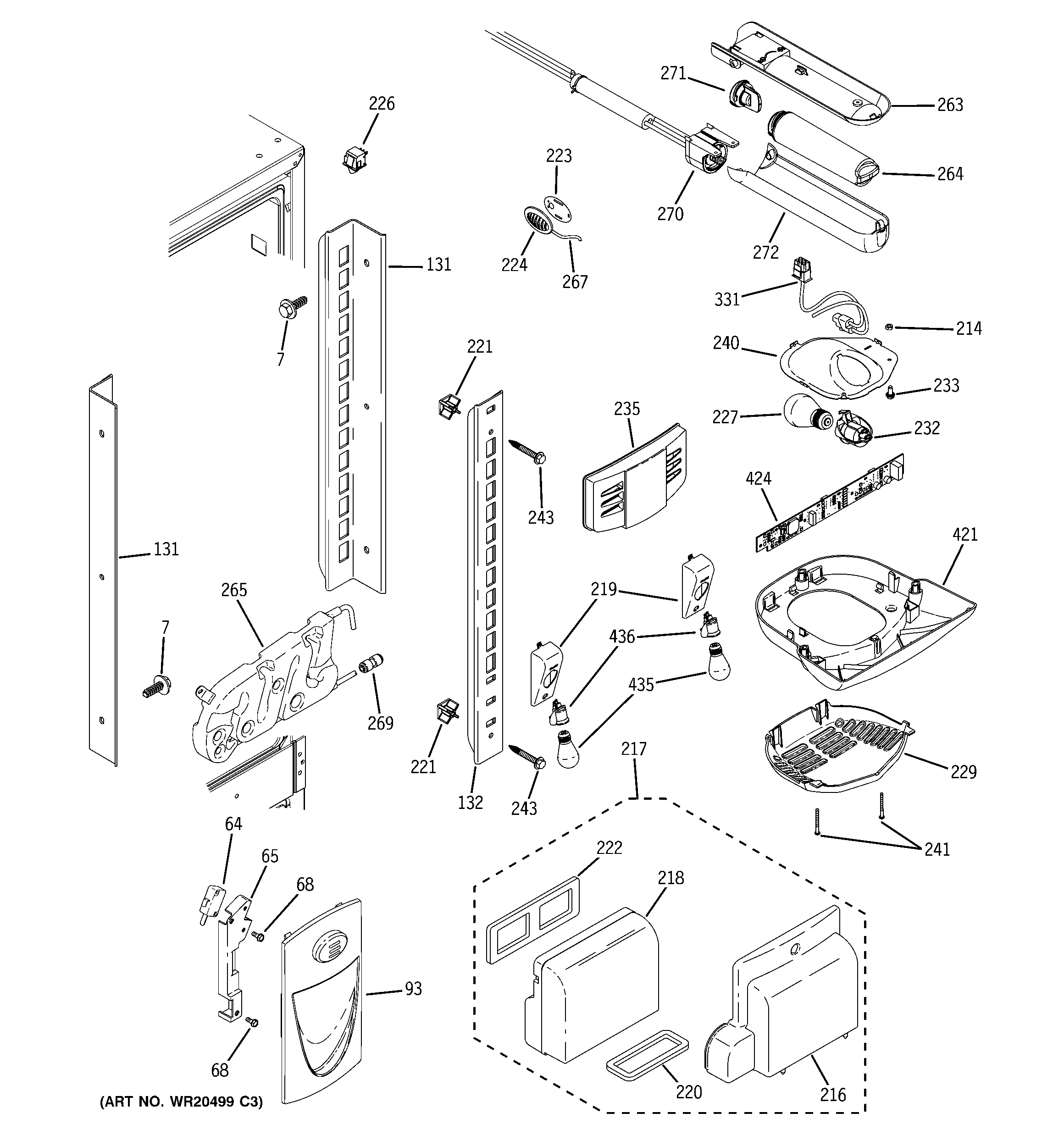

PFSF2MIXBBB FRESH FOOD SECTION

PFSF2MIXBBB FRESH FOOD SECTION

Written by

in

PFSF2MIXBBB FRESH FOOD SECTION

Products

PositionProduct
7WR01X10606 GE Refrigerator Screw 8-18 CA HX 1/2 S
64WR23X10333 GE Refrigerator Actuator Switch
65WR02X11614 GE Refrigerator Cover Harness
68WR01X10605 GE Refrigerator Screw 6-22 PL IHXW 3/8 S
93DISPENSER ASM
131GEN WR72X10305
132GEN WR72X10304
214WR01X10212 GE Refrigerator 8-32 Nut
216GEN WR17X12565
217WR17X12573 GE Refrigerator Damper Duct Assembly
218GEN WR17X12566
219REFLECTOR MIDDLE LAMP
220GEN WR14X10268
221GEN WR02X10892
222GEN WR14X10269
223WR02X10668 GE Refrigerator Shunt Sensor
224WR02X10647 GE Refrigerator Grille Sensor
226WR23X37285 GE Light Switch
229GEN WR17X12567
232WR2X9391 GE Socket and Terminal
233WD2X323D GE Dishwasher Screw Package
235GEN WR17X12585
240GEN WR02X12873
241GEN WR01X1792
243WR01X10626 GE Refrigerator Screw 8-18 AB HXW 5/4 S
263GEN WR17X12300
264GSWF GE Replacement GE SmartWater Water Filter Cartridge
265WR17X12793 GE Refrigerator Water Tank Dispenser Assembly
267WR55X10025 GE Refrigerator Temperature Sensor
269WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
270WR17X12301 GE Refrigerator Filter and Tube Assembly
271WR17X22073 GE Refrigerator GSWF Bypass
272WR17X12299 GE Refrigerator Lower Filter Cover Assembly
331HARNESS FF CTRL & LT
421CONTROL CUSTOM ASM
424WR55X10684 GE Refrigerator Temperature Control Board Assembly
435RANGE ONLY 40W 120V APPL BULB
436SOCKET & TERMINAL ASM
