PFSF6PKWBBB FRESH FOOD SECTION

PFSF6PKWBBB FRESH FOOD SECTION

Written by

in

PFSF6PKWBBB FRESH FOOD SECTION

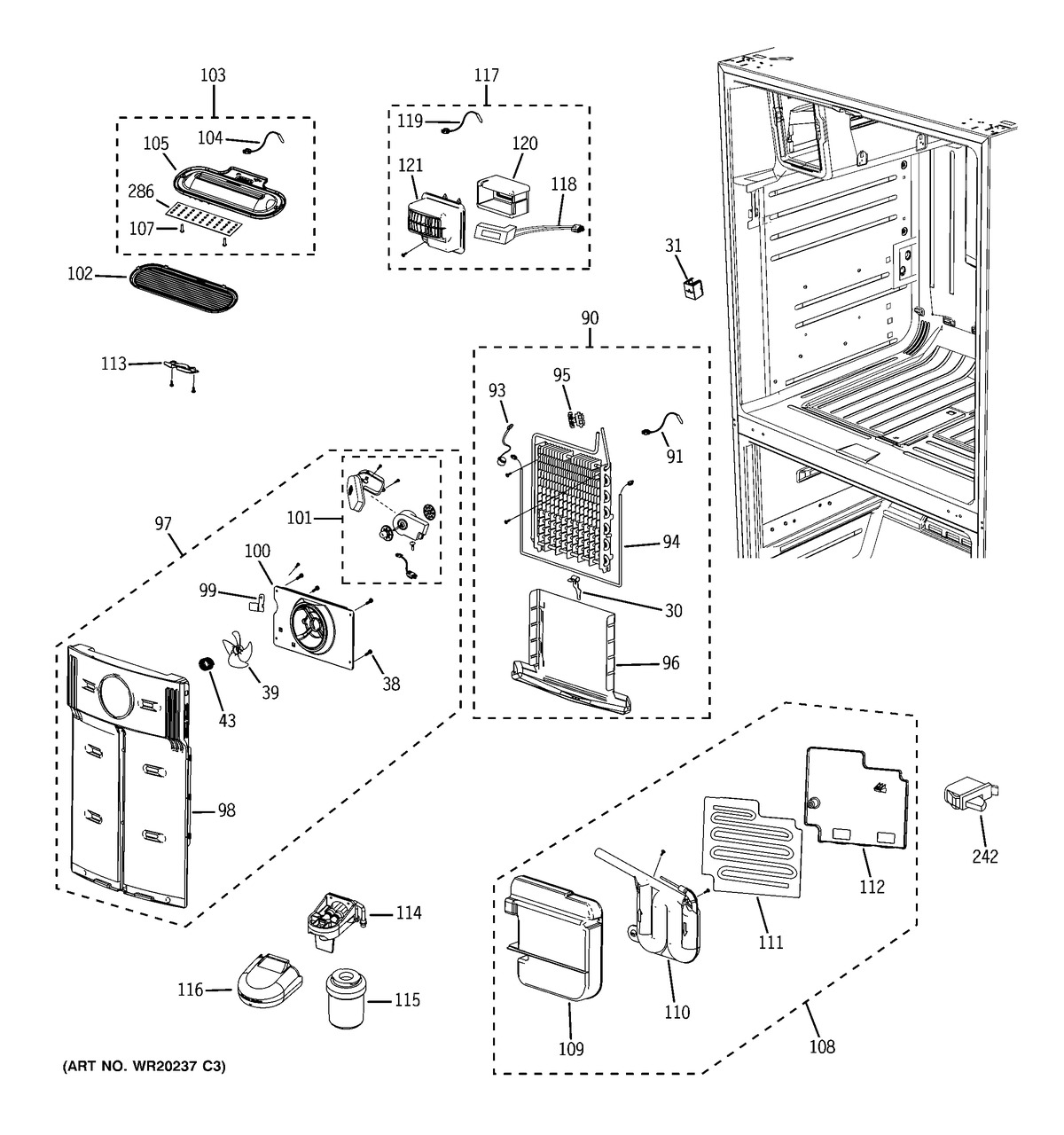

Products

PositionProduct
30HEATER METAL SHEATH
31HOUSING COVER HOLDER
38SCREW TAPPING
39EVAP FAN BLADE
43RETAINING SPRING FAN
90GEN WR85X10097
91WR23X10582 GE Refrigerator Temperature Sensor Assembly
93BIMETAL
94DEFROST HEATER
95SENSOR CLAMP
96GEN WR13X10512
97WR13X10573 GE Refrigerator Assembly Cover Evaporator
98GEN WR17X12389
99EVAP HOSUING CLIP
100EVAP MOTOR HOSUING
102GEN WR13X10492
103GEN WR13X10536
104GEN WR23X10578
105LIGHT HOLDER
107SCREW TAPPING
108WR17X12468 GE Refrigerator Water Tank Assembly
109COVER TANK WATER
110WR17X12390 GE Refrigerator Water Tank Assembly
111GEN WR13X10500
112COVER TANK HEATER
113DOOR GUIDE
114WR17X12469 GE Refrigerator Water Filter Head
115MWFP GE Replacement Water Filter Pureline for Refrigerator
116GEN WR13X10495
117GEN WR09X10170
118WR60X10253 GE Refrigerator Assembly Damper Motor
119SENSOR TEMP PANTRY
120DAMAPER INLET
121GEN WR13X10484
242SWITCH DOOR
286GEN WR02X12653
