PFSF6PKWBWW CASE PARTS

Products

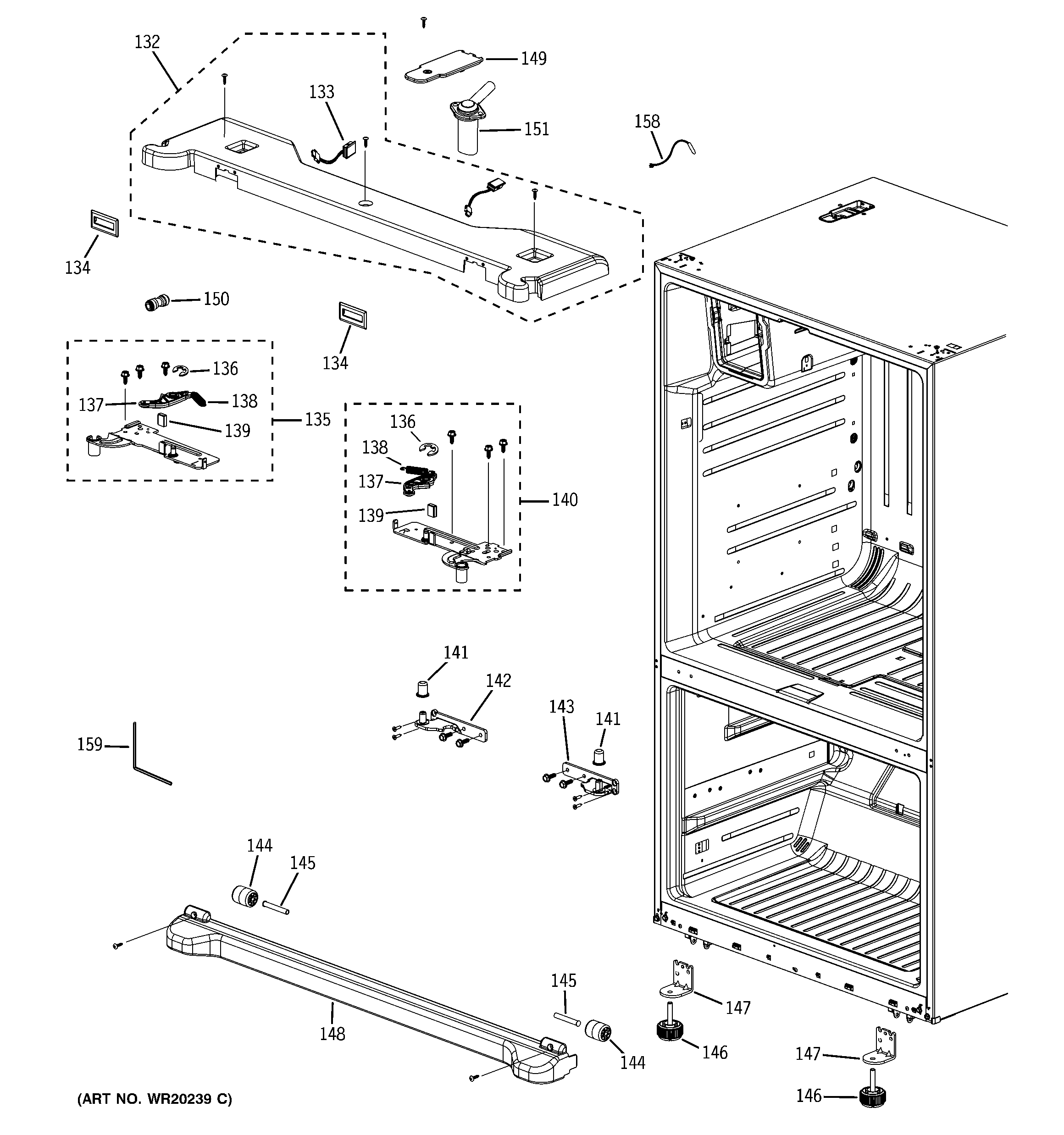

Position	Product
132	ASM CONTROL PANEL COVER
133	SWITCH REED ASM
134	GEN WR13X10576
135	ASM HINGE UPP LEFT
136	C - CLIP
137	SPRING AUTO CLOASE
138	GEN WR02X12673
139	GROMMET LEVER
140	ASM HINGE UPPER RIGHT
141	GROMMET HINGLE MIDDLE
142	ASM HINGE MID LEFT
143	ASM HINGE MID RIGHT
144	FRONT WHEEEL
145	WHEEL AXLE
146	FOOT FRONT
147	SUPPORT FOOT FRONT
148	GEN WR79X10047
149	GEN WR02X12752
150	TUBE CONNECTOR
151	GEN WR02X12750
158	SENSOR TEMP
159	WRENCH
