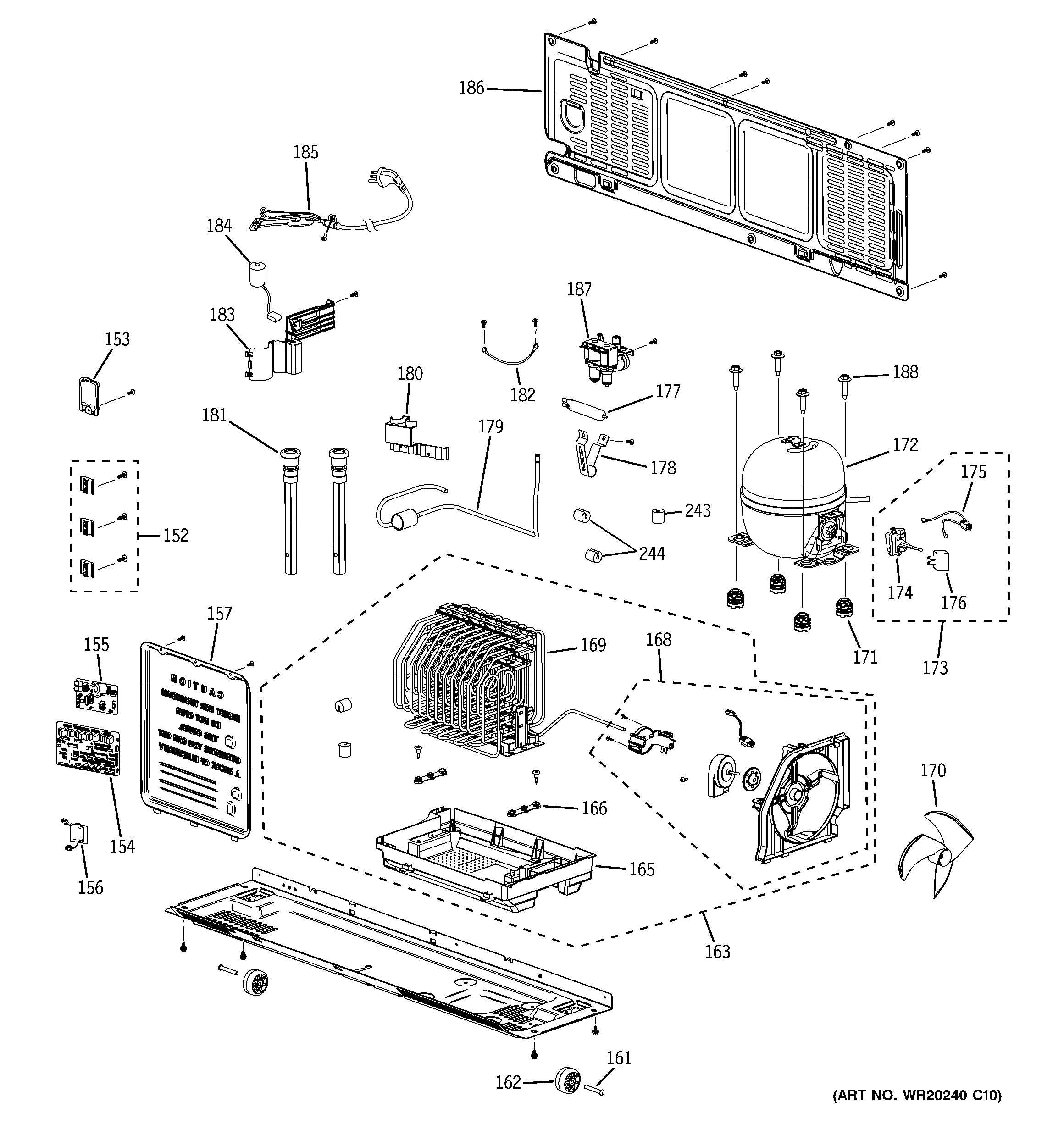

PFSF6PKXBBB UNIT PARTS

Products

Position	Product
152	WATER LINE HOLDER
153	WATER LINE COVER
154	WR55X10856 GE Refrigerator Main Circuit Board
155	POWER SUPPLY BOARD
156	GEN WR55X10765
157	ASM MAIN BOARD COVER
161	GEN WR02X13154
162	REAR WHEEL
163	WR13X10741 GE Refrigerator Assembly Tray-Drain Water
165	TRAY DRAIN WATER
166	GROMMET CONDENSER
168	ASM CONDENSER FAN
169	CONDENSER
170	CONDENSER FAN BLADE
171	GROMMET-COMP
172	WR87X10170 GE Refrigerator Compressor
173	GEN WR87X10164
174	GEN WR07X10107
175	GEN WR23X10586
176	OVERLOAD
177	DRYER
178	CLIP DRYER
179	COMP SUCTION LINE
180	WR02X12609 GE Refrigerator Suction Line Clamp
181	WR02X12751 GE Refrigerator Drain Line Assembly
182	WIRE HARNESS GROUND
183	COVER NOISE FILTER
184	EMI NOISE FILTER
185	POWER CORD
186	MACHINE TOP CPVER
187	WR57X10082 GE Refrigerator Water Valve
188	BOLT COMPRESSOR
243	GROMMET-SUCT PIPE A
244	GROMMET-SUCT PIPE B
