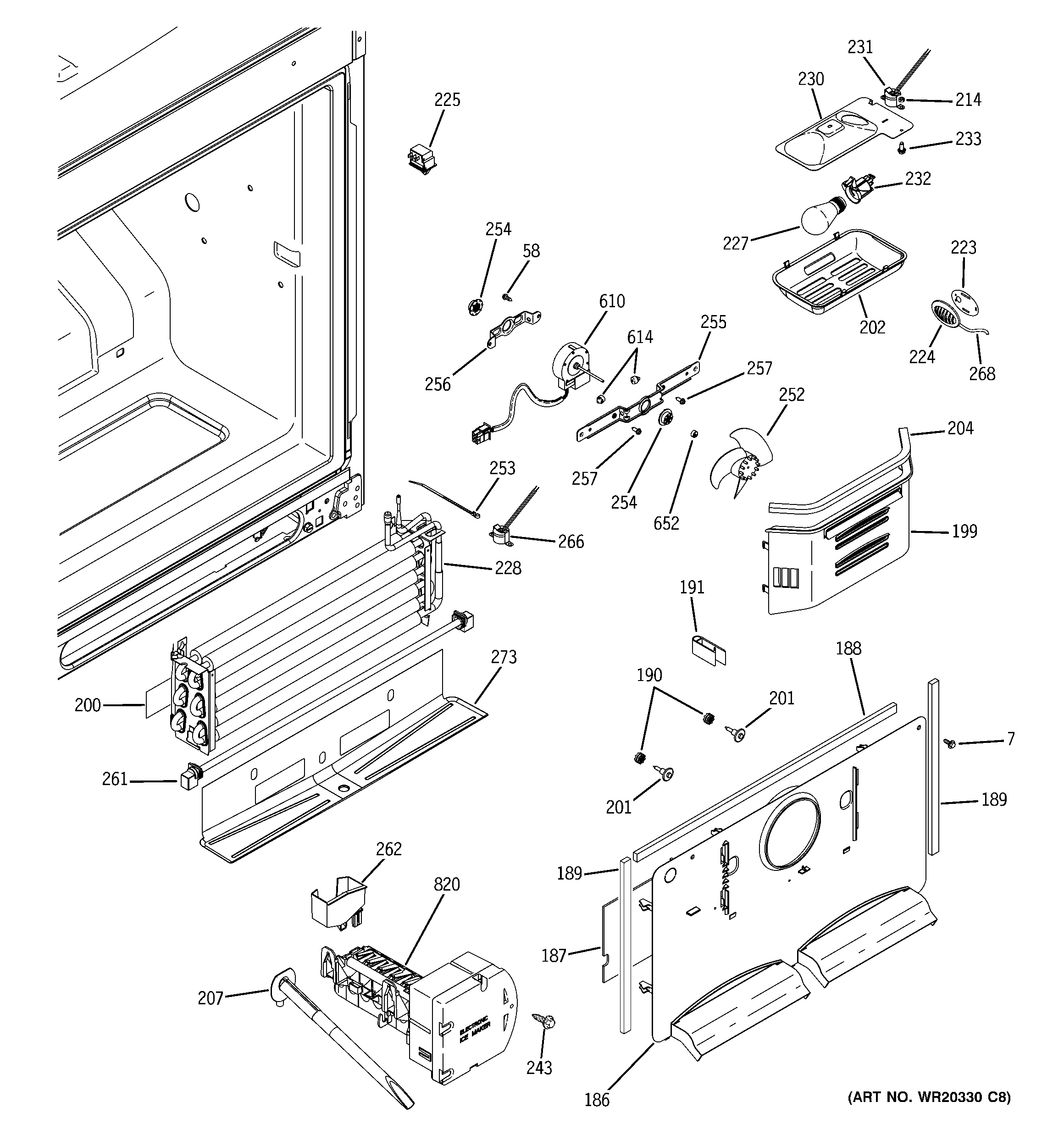

PFSS2MIXBSS FREEZER SECTION

PFSS2MIXBSS FREEZER SECTION

Written by

in

PFSS2MIXBSS FREEZER SECTION

Products

PositionProduct
7WR01X10606 GE Refrigerator Screw 8-18 CA HX 1/2 S
58WR01X10588 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
186GEN WR17X12504
187GEN WR14X10260
188GEN WR14X10261
189GEN WR14X10262
190WR02X11331 GE Refrigerator Grommet
191WR02X10522 GE Refrigerator Clamp Tube
199GEN WR17X12505
200WR14X10267 GE Insulation Harness
201WR01X10685 GE Scraper 8-18 Assembly
202GEN WR17X12255
204GEN WR14X10264
207GROMMET AND TUBE ASM
214WR01X10212 GE Refrigerator 8-32 Nut
223WR02X10668 GE Refrigerator Shunt Sensor
224WR02X10647 GE Refrigerator Grille Sensor
225FREEZER LIGHT SWITCH
227RANGE ONLY 40W 120V APPL BULB
228WR85X10107 GE Refrigerator Low Side Assembly
230GEN WR02X12805
231WR23X10536 GE Freezer Light Harness
232WR2X9391 GE Socket and Terminal
233WD2X323D GE Dishwasher Screw Package
243WR01X10626 GE Refrigerator Screw 8-18 AB HXW 5/4 S
252EVAPORATOR FAN BLADE
253WR02X11607 GE Refrigerator Wire Tie
255WR17X12507 GE Evaporator Fan Front Bracket
256WR02X10764 GE Refrigerator Evaporator Bracket
257WR01X10620 GE Refrigerator Screw 10-32
261HEATER DEF ASM
262WR29X10092 GE Refrigerator Ice Maker Fill Cup
266WR50X10068 GE Refrigerator Defrost Thermostat
268WR55X10025 GE Refrigerator Temperature Sensor
273GEN WR17X12506
610WR60X10277 GE Refrigerator Evaporator Fan DC Motor Assembly
614BUMPER
652WR02X12149 GE Refrigerator Ring
820WR30X10093 GE Refrigerator Ice Maker
