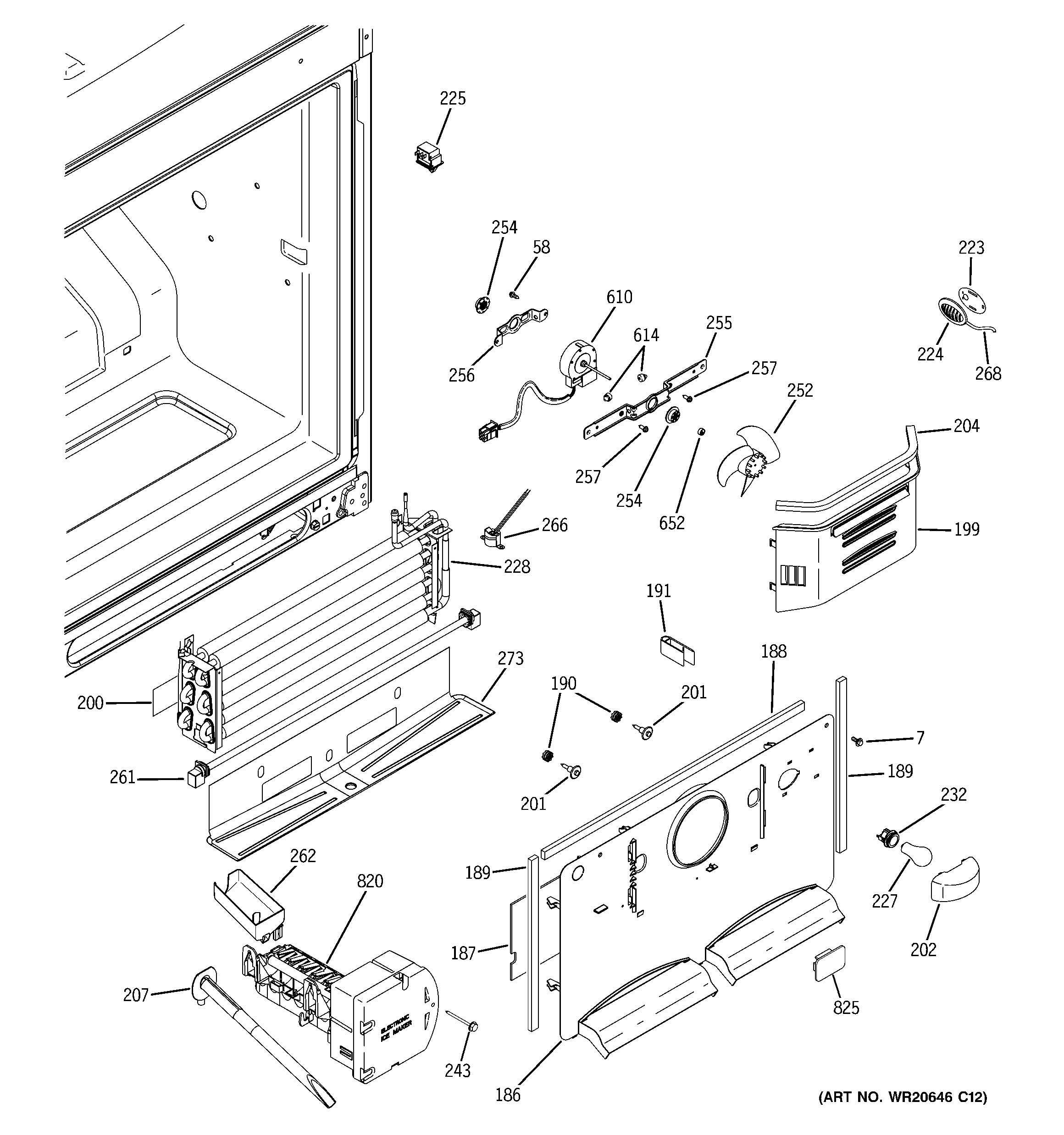

PFSS2MIYJ SS FREEZER SECTION

PFSS2MIYJ SS FREEZER SECTION

Written by

in

PFSS2MIYJ SS FREEZER SECTION

Products

PositionProduct
7GEN 8911410-9M
7WR01X10606 GE Refrigerator Screw 8-18 CA HX 1/2 S
58WR01X10588 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
186GEN WR17X12816
187GEN WR14X10260
188GEN WR14X10261
189GEN WR14X10262
190WR02X11331 GE Refrigerator Grommet
191WR02X10522 GE Refrigerator Clamp Tube
199GEN WR17X12575
200WR14X10267 GE Insulation Harness
201WR01X10685 GE Scraper 8-18 Assembly
202SHIELD LIGHT FZ
204GEN WR14X10264
207GEN WR17X12788
223WR02X10668 GE Refrigerator Shunt Sensor
224WR02X10647 GE Refrigerator Grille Sensor
225WR23X37285 GE Light Switch
227RANGE ONLY 40W 120V APPL BULB
228WR85X10107 GE Refrigerator Low Side Assembly
232WR2X9391 GE Socket and Terminal
243WR01X10626 GE Refrigerator Screw 8-18 AB HXW 5/4 S
252EVAPORATOR FAN BLADE
255WR17X12507 GE Evaporator Fan Front Bracket
256WR02X10764 GE Refrigerator Evaporator Bracket
257WR01X10620 GE Refrigerator Screw 10-32
261HEATER DEF ASM
262WR29X10092 GE Refrigerator Ice Maker Fill Cup
266THERMOSTAT DEF
268WR55X10025 GE Refrigerator Temperature Sensor
273GEN WR17X12506
610WR60X10277 GE Refrigerator Evaporator Fan DC Motor Assembly
614BUMPER
652WR02X12149 GE Refrigerator Ring
820WR30X10093 GE Refrigerator Ice Maker
825GEN WR02X13245
