PFSS5NJXCSS CASE PARTS

PFSS5NJXCSS CASE PARTS

Written by

in

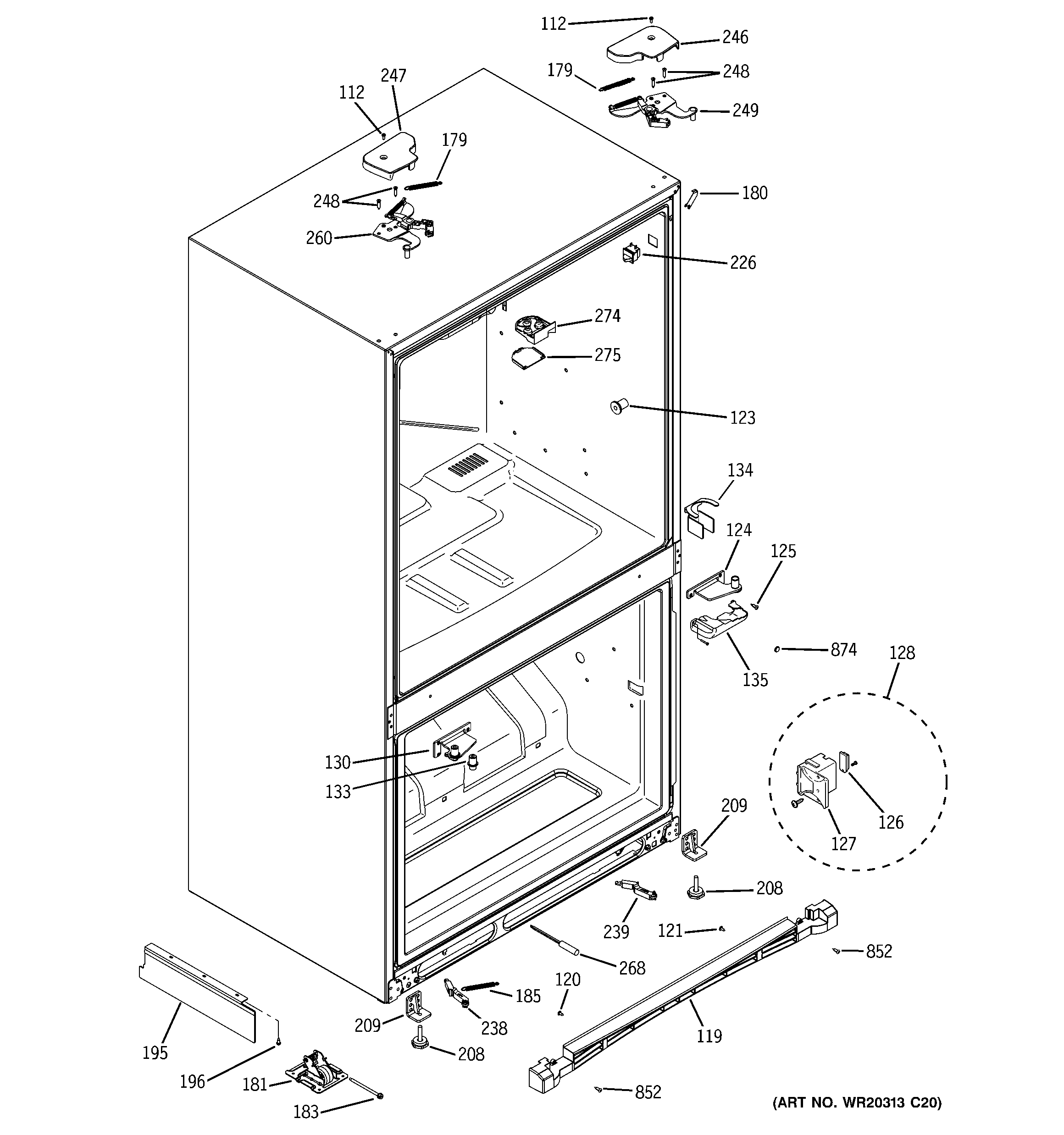

PFSS5NJXCSS CASE PARTS

Products

PositionProduct
112WR01X10379 GE Refrigerator Hinge Cover Screw
119WR02X12380 GE Refrigerator Base Grille Cover
120WR01X10613 GE Refrigerator Screw 8-18 AB PNT20 7/16 S
121WR01X10447 GE Refrigerator SCR-8-18-AB-UFL
123WR02X12187 GE Refrigerator Support Shelf
124GEN WR13X10430
125WR01X10683 GE Refrigerator Screw 12-24 TT HXT20 .90 S
126WR02X12711 GE Refrigerator Humidity Sensor
127WR17X12443 GE Humidity Sensor Housing
128WR55X10748 GE Refrigerator Humidity Sensor Assembly
130WR13X10431 GE Refrigerator Left Hand Center Hinge Assembly
133WR01X10793 GE Refrigerator Hinge Adjuster Pin
134SUPPORT WATER LINE
135GEN WR02X12589
179WR01X10827 GE Refrigerator Closure Spring
180WR02X10781 GE Refrigerator Corner Cap Black
181GEN WR02X12334
183WR01X10210 GE Refrigerator Mobility Screw
185WR1X2027 GE Refrigerator Spring Closure
195GEN WR17X12424
196WR01X10588 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
208WR01X10686 GE Refrigerator Leveling Screw
209WR02X12378 GE Leg Assembly Bracket
226WR23X37285 GE Light Switch
238WR11X10016 GE Refrigerator Lever Arm Closure Assembly
239WR11X10017 GE Refrigerator Lever Arm Closure Assembly
246GEN WR02X12388
247GEN WR02X12389
248WR01X10792 GE Refrigerator Screw 12-24 TT HX 7/8 S
249GEN WR13X10427
260WR13X10429 GE Refrigerator Hinge Closure Assembly
268WR55X10025 GE Refrigerator Temperature Sensor
274WR02X12685 GE Refrigerator Top Mullion Striker
275WR02X12684 GE Refrigerator Top Cover Striker
852WR01X10858 GE Refrigerator Screw 8-18 AB PNP 5/8 S
874GEN WR01X10855
