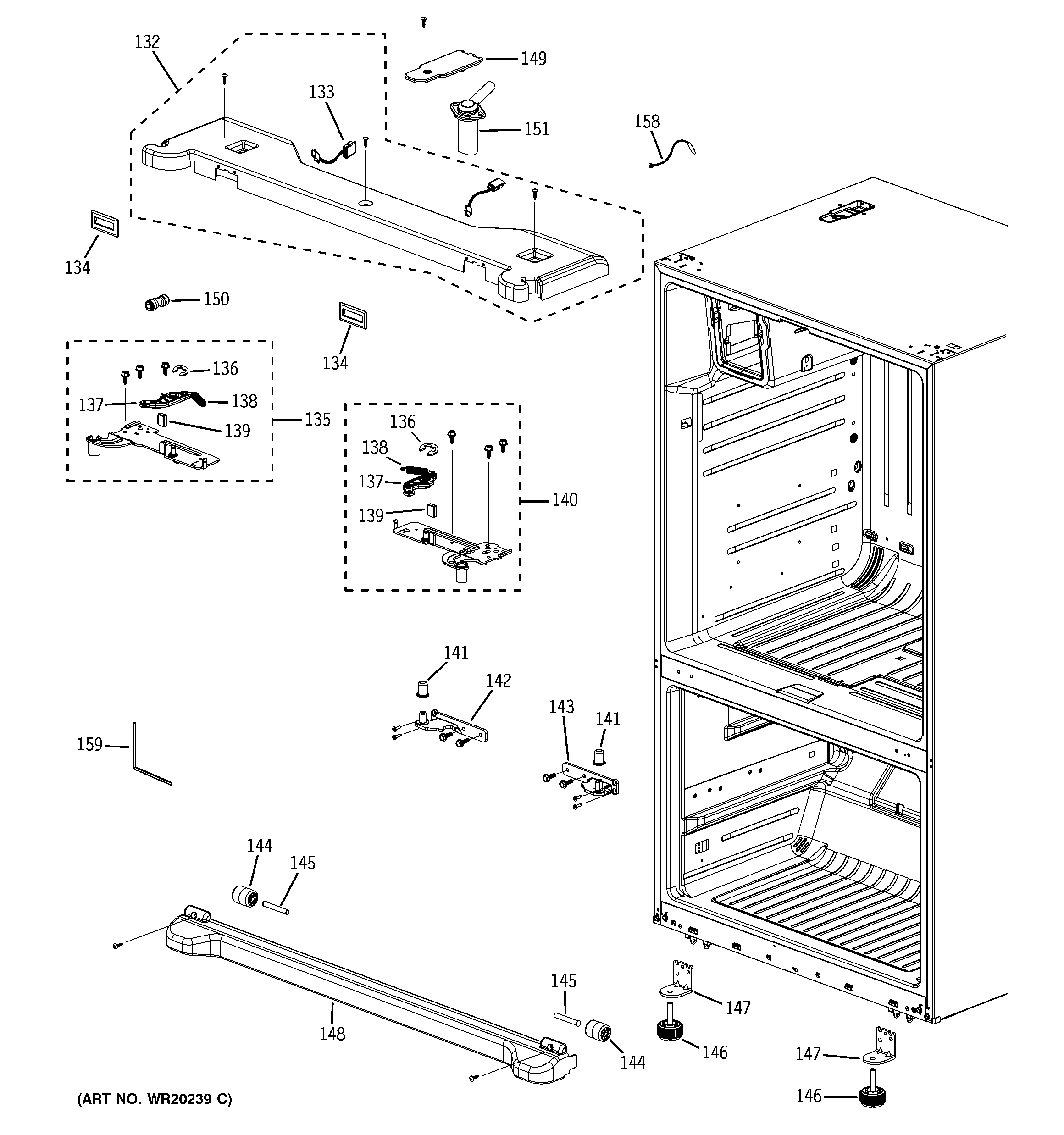

PFSS6PKWBSS CASE PARTS

PFSS6PKWBSS CASE PARTS

Written by

in

PFSS6PKWBSS CASE PARTS

Products

PositionProduct
132GEN WR13X10549
133SWITCH REED ASM
134GEN WR13X10575
135WR13X10546 GE Refrigerator Upper Left Hinge Assembly
136C – CLIP
137SPRING AUTO CLOASE
138GEN WR02X12668
139GROMMET LEVER
140GEN WR13X10547
141GROMMET HINGLE MIDDLE
142ASM HINGE MID LEFT
143ASM HINGE MID RIGHT
144FRONT WHEEEL
145WHEEL AXLE
146FOOT FRONT
147SUPPORT FOOT FRONT
148GEN WR79X10046
149GEN WR02X12749
150TUBE CONNECTOR
151GEN WR02X12750
158SENSOR TEMP
159WRENCH
