PFSS6SMXESS CASE PARTS
Written by
in

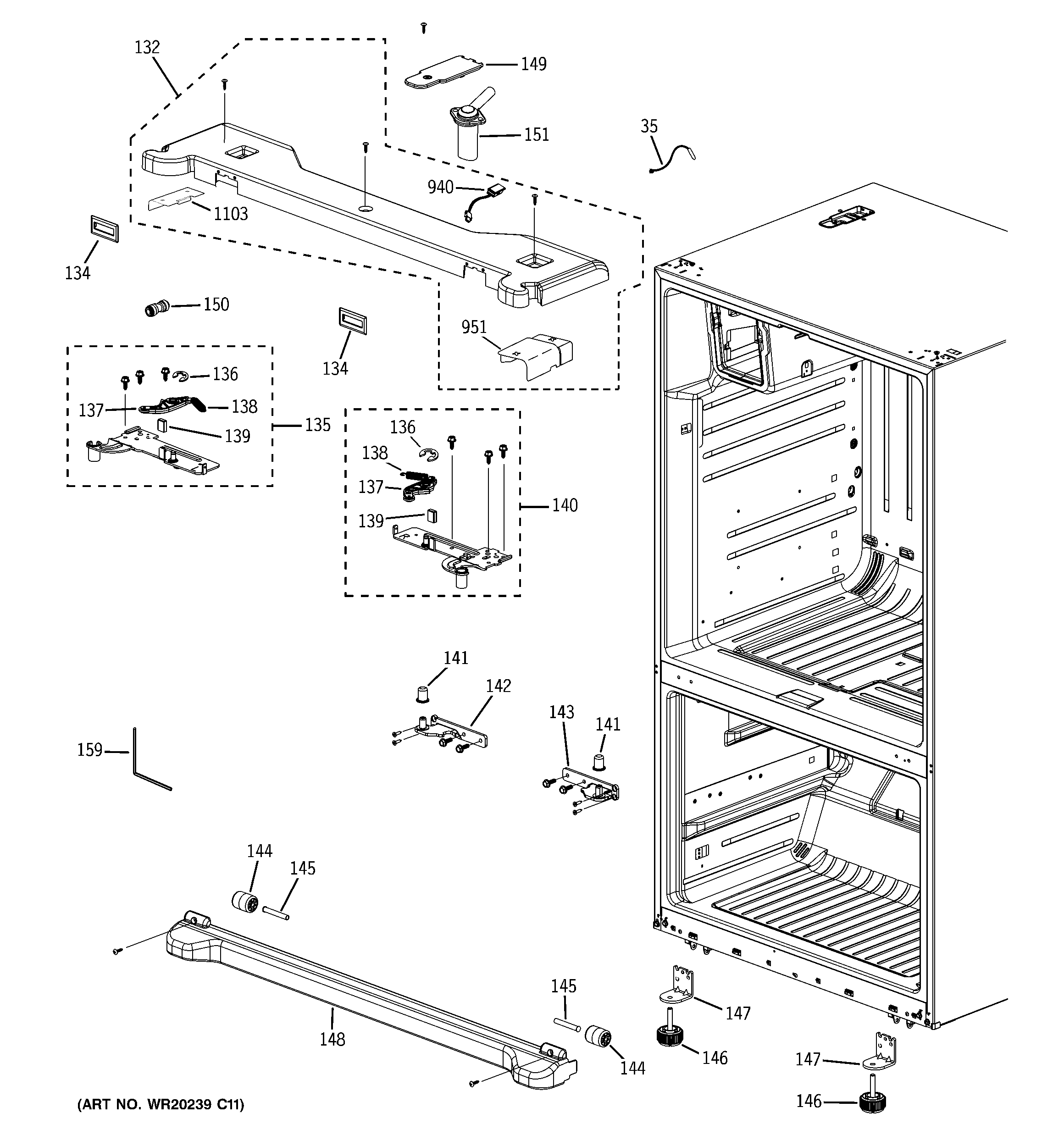

PFSS6SMXESS CASE PARTS
Products
| Position | Product |
|---|---|
| 35 | SENSOR TEMP |
| 132 | GEN WR13X10670 |
| 134 | GEN WR13X10575 |
| 135 | ASM HINGE UPP-L SS |
| 136 | C – CLIP |
| 137 | GEN WR02X12668 |
| 138 | SPRING AUTO CLOASE |
| 139 | GROMMET LEVER |
| 140 | GEN WR13X10547 |
| 141 | GROMMET HINGLE MIDDLE |
| 142 | GEN WR13X10764 |
| 143 | GEN WR13X10765 |
| 144 | FRONT WHEEL |
| 145 | WHEEL AXLE |
| 146 | FOOT FRONT |
| 147 | SUPPORT FOOT FRONT |
| 148 | COVER-LEG FRONT |
| 149 | ASM-COVER PIPE WATER |
| 151 | ASM PIPE-WATER |
| 159 | WRENCH |
| 940 | GEN WR23X10628 |
| 1103 | CASE TOP COVER |
