PFW955SPW0GN TUB & MOTOR

PFW955SPW0GN TUB & MOTOR

Written by

in

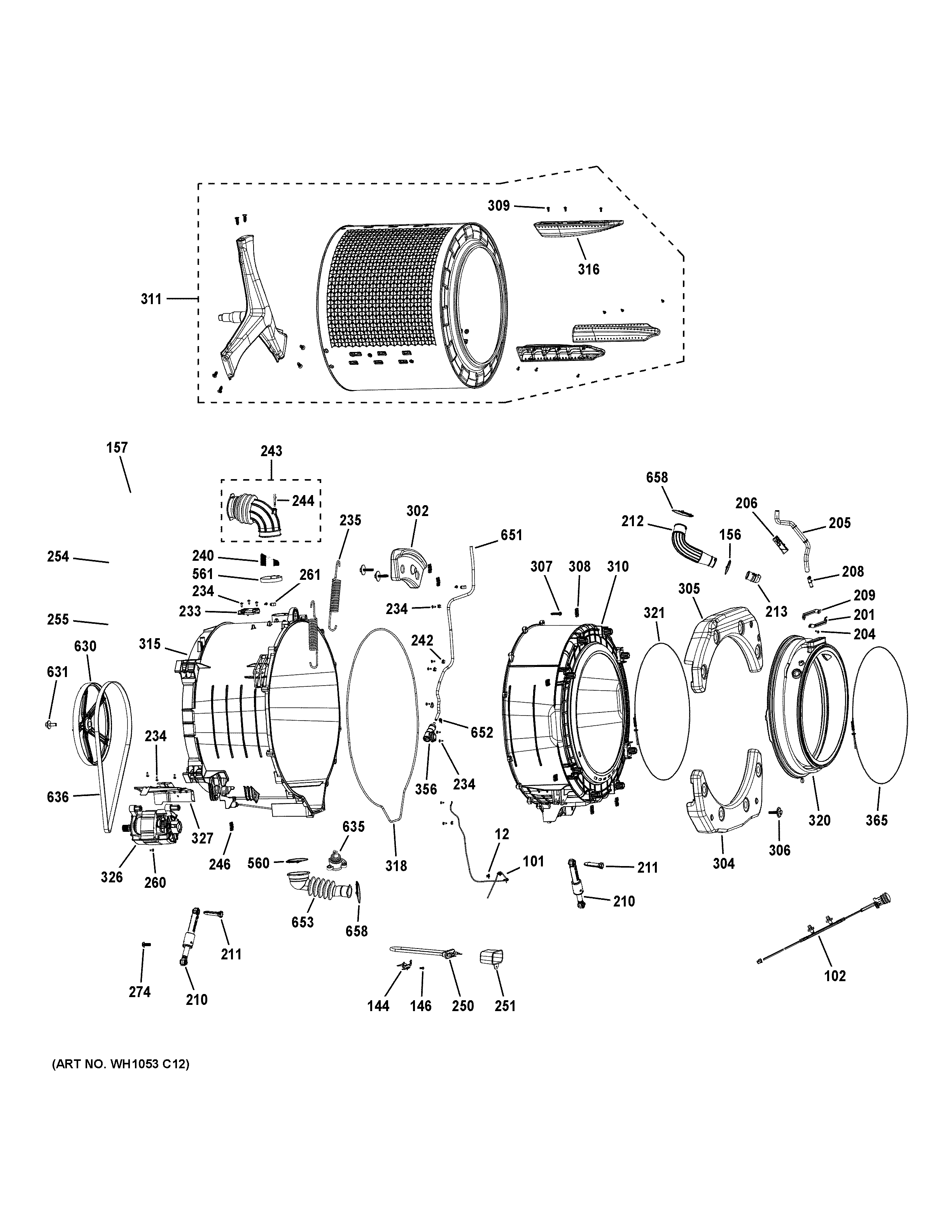

PFW955SPW0GN TUB & MOTOR

Products

PositionProduct
12WH02X29626 GE Ground Harness Clamp
101WH08X29642 GE Ground Harness
102WH01X29685 GE LED Light
144WH13X29684 GE Heater Bracket
146WH02X26240 GE Screw
156WH01X26320 GE Internal Drain Hose To Air C
157OVERNIGHT DRY SPRAY HOSE
201WH01X29610 GE Refrigerator Front Damper Gasket Clamp
204WH02X26236 GE Screw Assembly
205WH01X29641 GE Door Glass Hose
206WH01X29612 GE Hose Guide
208WH01X29223 GE Spray Nozzle to Glass
209WH01X29661 GE Rear Damper Gasket Clamp
210WH03X29516 GE Suspension Damper
211DAMPER PIN
212DISPENSER FILL HOSE
213WH41X29621 GE Dispenser Nozzle Fill Hose
233ACCELEROMETER W/INSTRUCTIONS
234WH02X26515 GE Screw
235WH03X29511 GE Suspension Spring
240WH01X34126 GE Overnight Dry Filter
242WH02X29656 GE Pressure Hose Clamp
243OVERNIGHT DRY HOSE & FILTER SPRAY NOZZLE
244OVERNIGHT DRY FILTER SPRAY NOZZLE
246WH02X29677 GE Drive Motor Flan Nut
250WH11X29552 GE Heater
251WH13X29683 GE Heater Shield
254OVERNIGHT DRY HOSE CONNECTOR
255WH41X30361 GE Tube
260WH02X26905 GE Drive Motor Bolt
261WH13X29645 GE Accelerator Clamp
274WH02X29609 GE Ground Screw
302WH02X29660 GE Rear Counterweight Assembly
304WH01X29648 GE Counterweight Lower
305WH02X29636 GE Upper Counterweight
306WH02X29657 GE Bolt Counterweight
307WH02X26297 GE Tub Bolt
308COUNTERWEIGHT FLANGE NUT
309WH02X30341 GE Basket Baffle Screw
310WH21X30360 GE Tub Front
311WH21X34129 GE Basket Assembly
315REAR TUB
316WH13X29679 GE Baffle
318WH05X29620 GE Seal Tub
320GASKET
321WH01X29615 GE Inner Clamp Gasket
326MOTOR
327WH01X33597 GE Motor Shield
356WH03X29654 GE Pressure Chamber
365BOOT GASKET CLAMP
560WH01X26319 GE Washer Hose Clip Connector
561WH02X29623 GE Overnight Dry Hose Clamp
630WH03X29622 GE Appliance Pulley
631WH02X30342 GE Screw Pulley
635WH08X32891 GE Turbidity Sensor
636WH03X29522 GE Driver Belt Assembly
651WH41X29630 GE Hose Pressure
652WH01X26324 GE Upper Pressure Hose Clamp
653WH41X30355 GE Sump Hose
658WH01X27149 GE Washer Clamp
