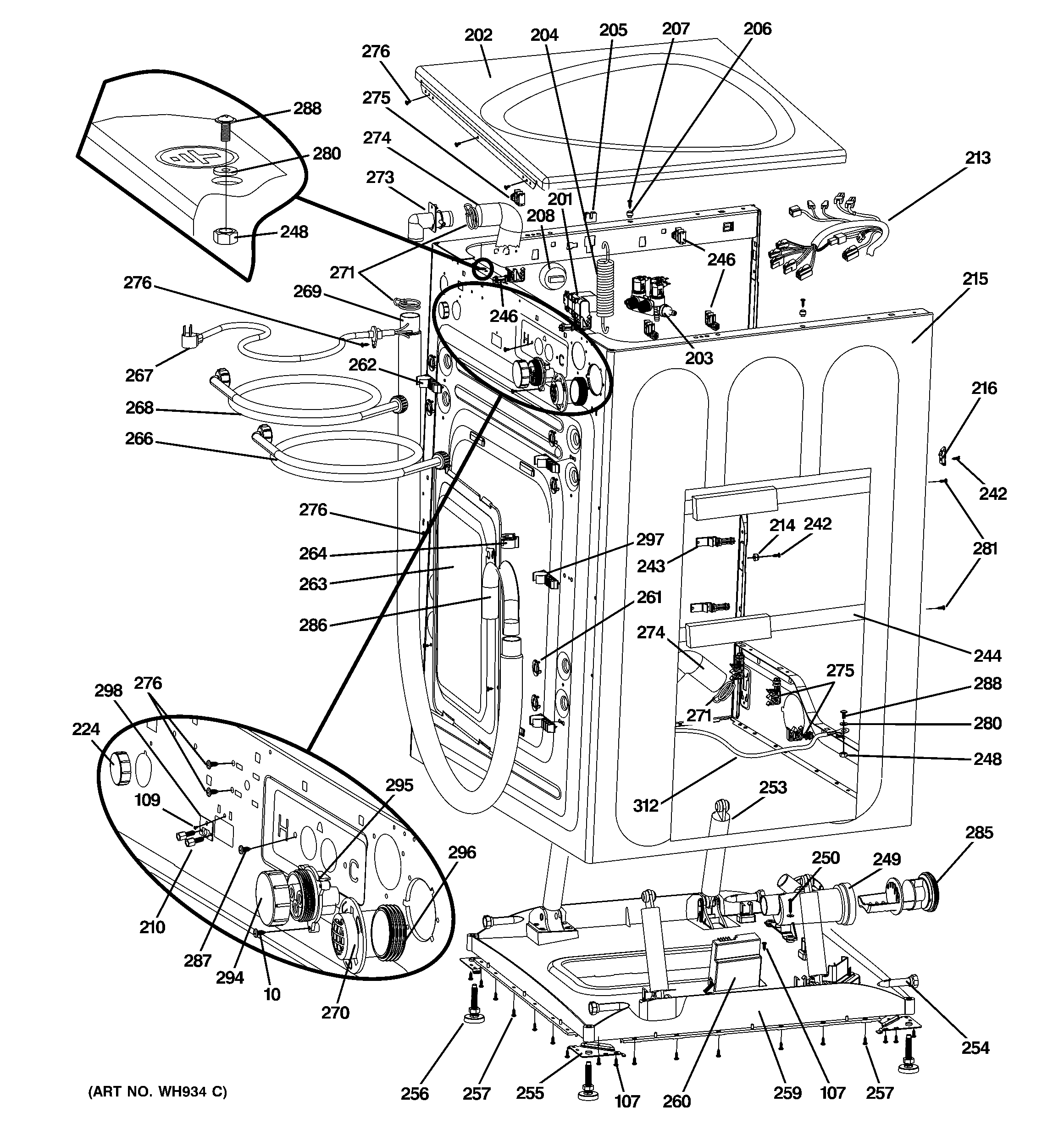

PFWS4605L0MG CABINET & TOP PANEL

PFWS4605L0MG CABINET & TOP PANEL

Written by

in

PFWS4605L0MG CABINET & TOP PANEL

Products

PositionProduct
10WH02X10223 GE Screw St4 10
107WH02X10183 GE Screw ST4 13
109WH02X10184 GE Screw 4.2 x 13
201WH41X10301 GE EMI Filter
202GEN WH44X10257
202GEN WH44X10262
203WH49X26074 GE LCHA Water Valve Kit
204WH05X10012 GE Suspension Spring
205WH01X10251 GE Han R Spring
206WH01X10252 GE Top Panel Pin
207GEN WH02X10187
208GEN WH12X10390
210GEN WH02X10268
213GEN WH19X10072
214WH01X10253 GE Front Panel Pin
216WH16X10073 GE Front Panel
224GEN WH01X10382
242GEN WH02X10182
243WH16X10074 GE Catch Wire
244GEN WH16X10075
246WH16X10076 GE Wire Catch
248GEN WH02X10199
249PUMP
250WH02X10200 GE Screw ST4*25
253GEN WH01X10385
254WH01X10261 GE Damper Pin
255WH16X10077 GE Corner Bracket
256GEN WH46X10243
257WH02X10201 GE Screw ST4.2 13
260GEN WH12X10493
261WH44X10206 GE Cover Screw
262WH01X10262 GE Drain Hose Catch
263WH46X10237 GE Rear Cabinet Cover
264WH01X10263 GE Washer Inside Drain Hose
266GEN WH41X10215
267GEN WH19X10071
268GEN WH41X10216
269WH41X10126 GE Drain Hose Outside
270WH01X10527 GE Vent Hose Coupling
271WH01X10265 GE Drain Hose Clamp
273WH01X10266 GE Drain Hose Coupling
274GEN WH41X10127
275WH16X10078 GE Wire Catch
276GEN WH02X10203
280GEN WH02X10218
281WH02X10219 GE Screw ST4 10
285PUMP FILTER
286WH41X10133 GE Drain Hose U-Shape
287GEN WH02X10220
288WH02X10234 GE Screw M5 12
294GEN WH01X10399
295GEN WH01X10391
296GEN WH08X10052
297GEN WH01X10430
298GEN WH16X10116
312GEN WH19X10067
