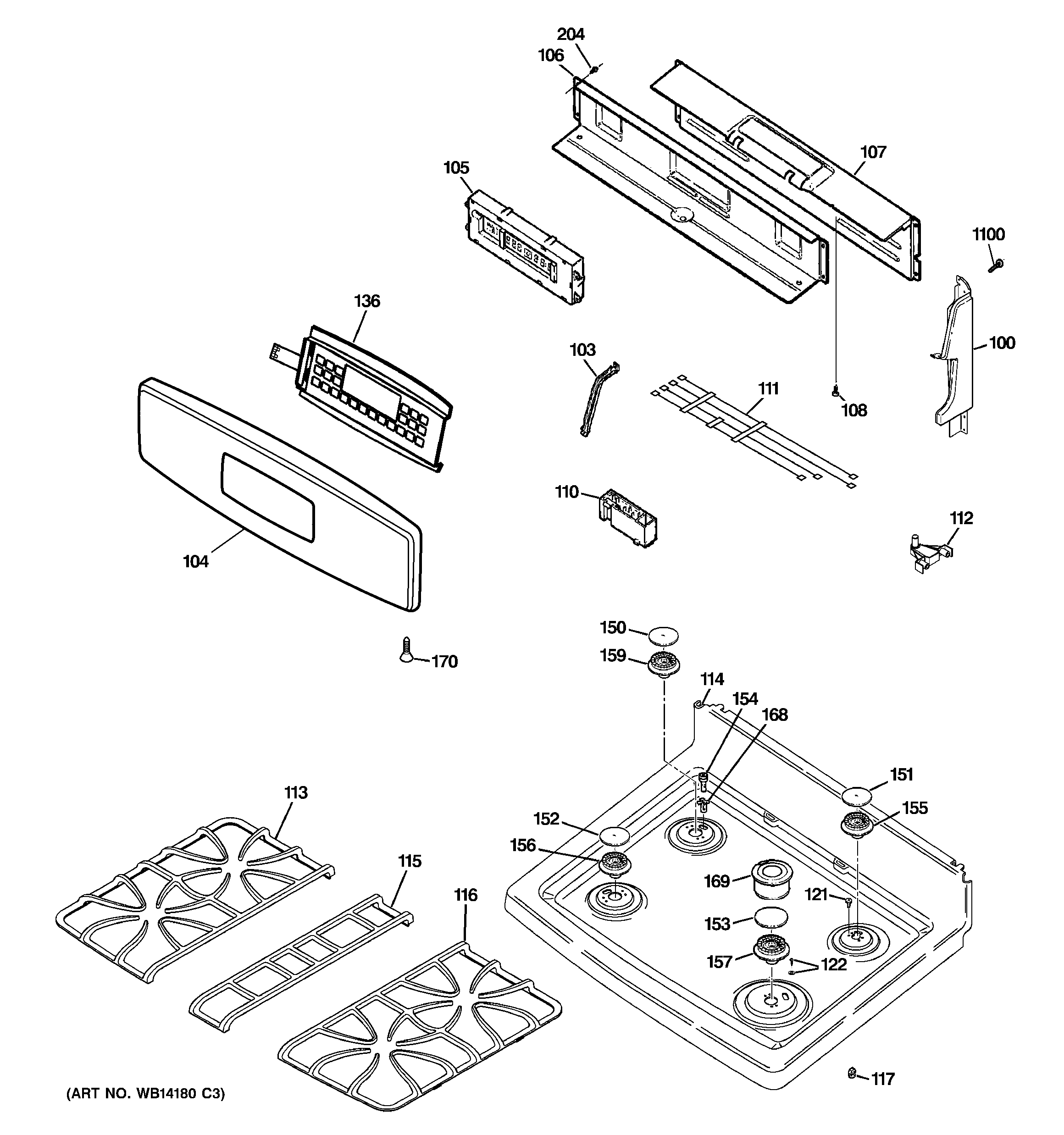

PGB900DEM4WW CONTROL PANEL & COOKTOP

Products

PositionProduct
100END SUPPORT RT WH
100END SUPPORT LF WH
100END SUPPORT RT
100END SUPPORT LF
100END SUPPORT RT
100END SUPPORT LF
103WB02K10150 GE Oven Control Bracket
104GEN WB36K10645
104GEN WB36K10695
104GEN WB36K10697
105GEN WB27K10246
106COVER BACK UPPER
107GEN WB34K10091
110WB13K10029 GE Oven Spark Module
111WB18K10035 GE Oven Wire Harness
112WB14K10003 GE Range Top Hinge
113GEN WB31K10111
113GEN WB31K10097
113GEN WB31K10108
114GEN WB62K10091
114GEN WB62K10087
114GEN WB62K10090
115GEN WB31K10110
115GEN WB31K10099
115GEN WB31K10113
116GEN WB31K10098
116GEN WB31K10109
116GEN WB31K10112
117WB14K10004 GE Oven Pin Locator
121WB1K5119 GE Oven Screw
122GEN WB01K10008
136GEN WB27K10270
136GEN WB27K10252
136GEN WB27K10269
150WB29K10001 GE Oven Burner Cap
150WB29K10004 GE Oven Gray Burner Cap
150CAP-BURNER MED TAUPE
151WB29K10002 GE Range Oven Cooktop Small Burner Cap
151WB29K10009 GE Oven Burner Cap
151CAP-BURNER SMALL TAUPE
152WB29K10007 GE Oven Burner Cap, Left
152WB29K10006 GE Oven Burner Cap
152WB29X36765 GE Large Cap Burner Taupe Rep
153GEN WB28K10221
153WB28K10213 GE Oven Burner Cap Assembly (15K)
153GEN WB28K10223
154GEN WB13K10014
155WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
156BURNER 12K
157WB16K10062 GE Oven Surface Burner Base
159WB16K10055 GE Oven Burner Base
168WB01K10112 GE Range Oven Electrode Clip
169GEN WB16K10045
170GEN WB01X5874
170GEN WB01X5716
170WB1X5364 GE Oven Mounting Screw
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
1100WB01T10016 GE Oven Screw 8-18 AB Hex
