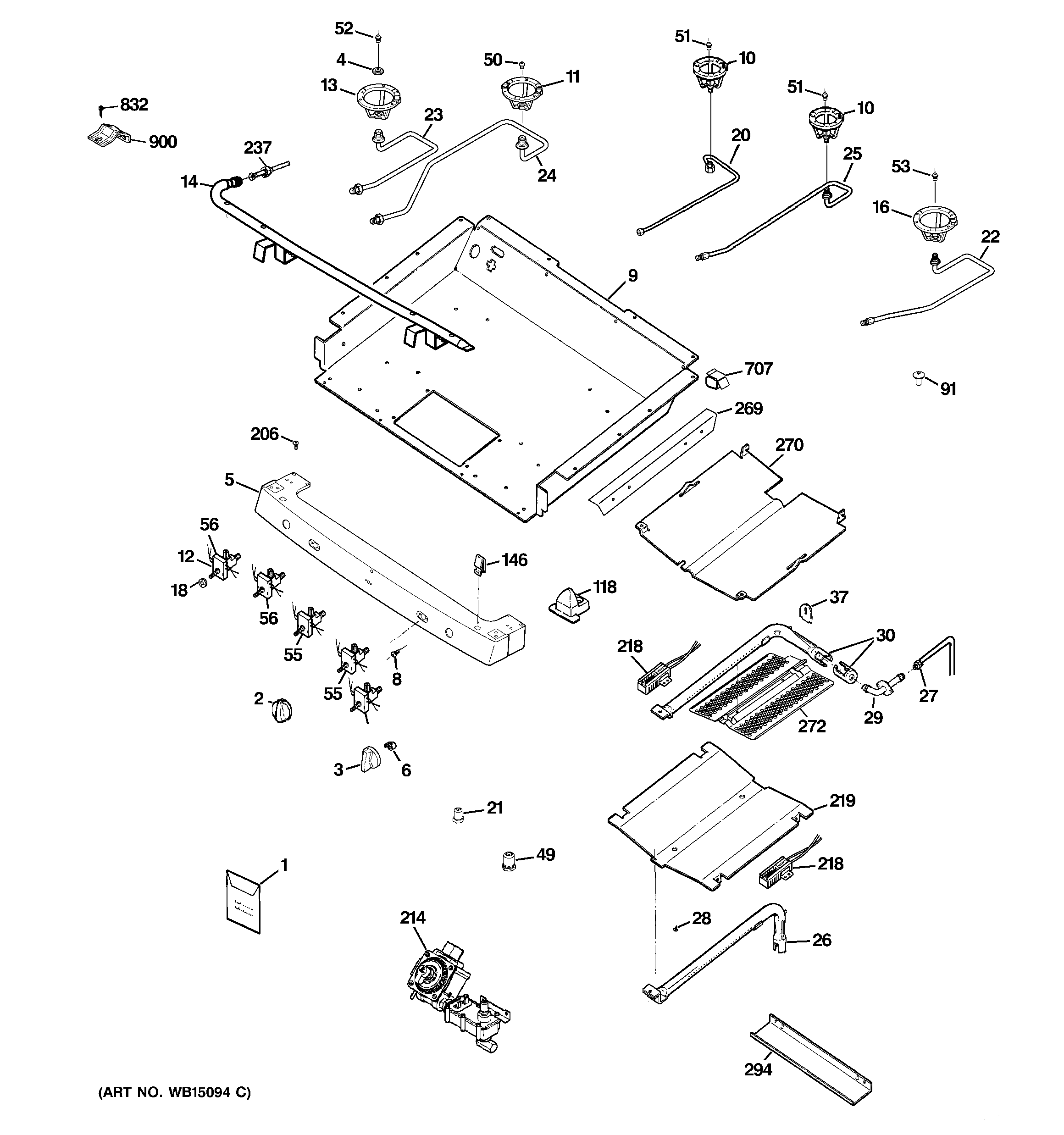

PGB900DET1BB GAS & BURNER PARTS

Products

PositionProduct
1GEN 31-21394
1GEN 49-85189-1
2KNOB COVER ASM
2GEN WB03K10321
3GEN WB03K10322
3KNOB COVER ASM
3WB28K10023 GE Oven Orifice
4WB01K10037 GE Oven Economic Nut
5MANIFOLD PANEL
5GEN WB36K10922
6GEN WB03K10320
8WB01K10002 GE Oven Screw 8-32
9WB63K10190 GE Burner Box Assembly
10WB02K10360 GE Oven Circuit Bracket Small
11WB02K10361 GE Oven Orifice Holder
12GEN WB18K10078
13WB02K10362 GE Oven CKT Bracket MDM & L
14ROUND MANIFOLD PIPE
16WB02K10082 GE Oven Bracket XL Cooktop
18WB2K24 GE Oven Valve Cover
20ORIFICE HOLDER ASM
21GEN WB28K10718
22ORIFICE HOLDER RF
23ORIFICE HOLDER LF
24ORIFICE HOLDER LR NG
25ORIFICE HOLDER RR
26WB16K10035 GE Range Oven Burner Bar with Igniter
27WB28K10168 GE Oven Burner Supply Tube
28WB1X1293 GE Oven Screw
29GEN WB28K10719
30WB16K10086 GE Range Broil Burner
37WB34K14 GE Igniter Cover
49GEN WB28K10720
50WB28K10215 GE Oven Orifice
51GEN WB28K10732
51WB28K10031 GE Oven Orifice
52GEN WB28K10733
52WB28K10214 GE Oven Orifice
53GEN WB28K10734
53GEN WB28K10216
55WB21K10113 GE Oven Burner Valve 270
56VALVE BURNER 270
91WB01T10008 GE Oven Screw 10-32
118GEN WB14K10005
118WB02K10104 GE Base Spacer
146GEN WB02K0052
206WB01K10091 GE Oven Screw
214WB19K10074 GE Oven Control Valve Assembly
218WB13X25261 GE Oven Igniter Glowbar
218WB13K21 GE Oven Igniter with 7 Leads
219OVEN DEFLECTOR
219DEFLECTOR OVEN
237WB28X24772 GE Oven Gas Tube Connector
237GEN WB28K10587
269GEN WB35K10048
270WB49K10025 GE Range Deflector
272WB49K10045 GE Broil Shield
294GEN WB63K10040
707WB02K10267 GE Wire Clip
832WB01K10080 GE Oven Thermostat Screw
900WB02K10297 GE Oven Valve Bracket
