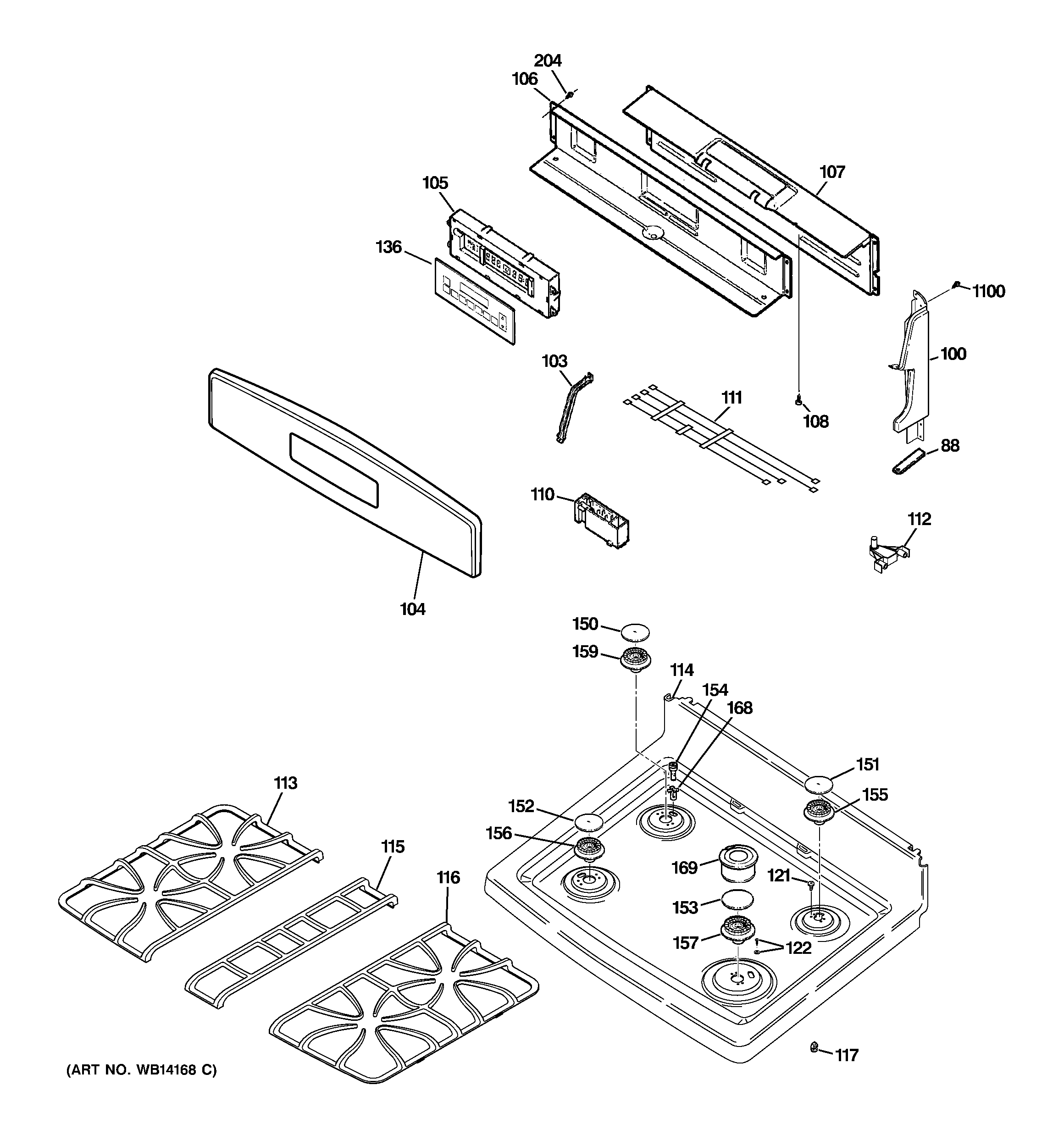

PGB900SEM2SS CONTROL PANEL & COOKTOP

PGB900SEM2SS CONTROL PANEL & COOKTOP

Written by

in

PGB900SEM2SS CONTROL PANEL & COOKTOP

Products

PositionProduct
88WB2K64 GE Oven Felt Pad Black
100END SUPPORT RT
100END SUPPORT LF
103WB02K10150 GE Oven Control Bracket
104WB36K10650 GE Oven Trim Control
105GEN WB27K10246
106GEN WB34K10092
107GEN WB34K10091
108WB1X5364 GE Oven Mounting Screw
110WB13K10029 GE Oven Spark Module
111WB18K10035 GE Oven Wire Harness
112WB14K10003 GE Range Top Hinge
113GEN WB31K10114
114GEN WB62K10087
115GEN WB31K10116
116GEN WB31K10115
117WB14K10004 GE Oven Pin Locator
121WB1K5119 GE Oven Screw
122GEN WB01K10008
136GEN WB27K10252
150WB29K10023 GE Oven Burner Cap Assembly
151WB29K10022 GE Oven Burner Cap Assembly
152WB29K10024 GE Burner Cap Oven
153CAP BURNER ASM (15K)
154GEN WB13K10014
155WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
156BURNER 12K
157WB16K10062 GE Oven Surface Burner Base
159WB16K10055 GE Oven Burner Base
168WB01K10112 GE Range Oven Electrode Clip
169GEN WB16K10045
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
1100WB01T10016 GE Oven Screw 8-18 AB Hex
