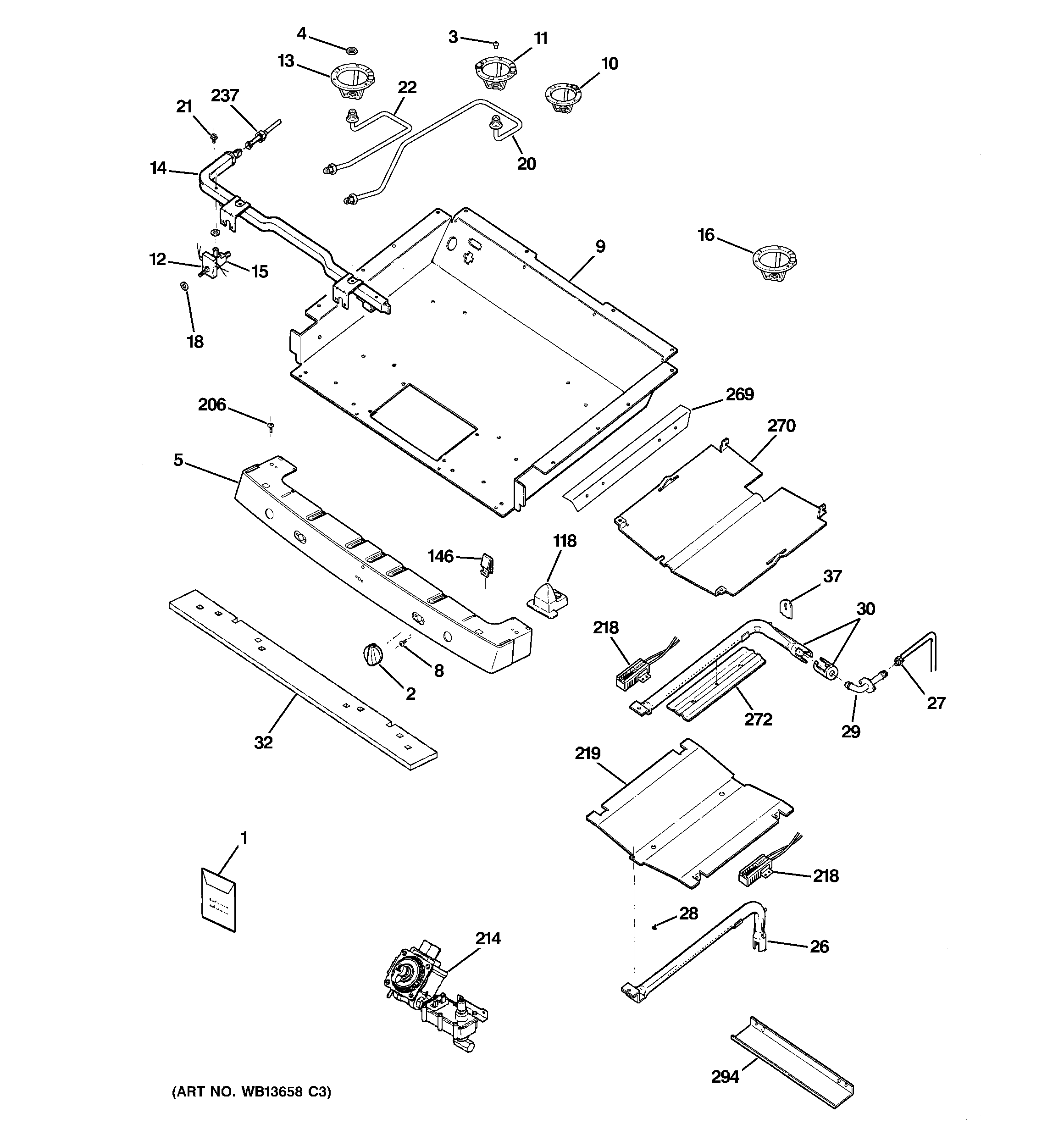

PGB900SEM3SS GAS & BURNER PARTS

Products

PositionProduct
1GEN 49-85131
1GEN WB28K10559
1GEN 31-21394
1WB02T10111 GE Cleaner Stainless Steel
1GEN 31-21340
2WB03X43926 GE Burner Knob Kit
3GEN WB28K10216
3WB28K10215 GE Oven Orifice
3WB28K10214 GE Oven Orifice
3WB28K10031 GE Oven Orifice
4WB01K10037 GE Oven Economic Nut
5GEN WB36K10745
8WB01K10002 GE Oven Screw 8-32
9GEN WB63K10037
10WB02K10360 GE Oven Circuit Bracket Small
11WB02K10361 GE Oven Orifice Holder
12GEN WB24K10023
12GEN WB24K10024
13WB02K10362 GE Oven CKT Bracket MDM & L
14GEN WB28K10379
15GEN WB21K10072
15GEN WB21K10040
15GEN WB21K10038
15GEN WB21K10039
16WB02K10082 GE Oven Bracket XL Cooktop
18WB2K24 GE Oven Valve Cover
20GEN WB28K10212
20GEN WB28K10211
21WB01K10066 GE Oven Screw 8 HD 10-32
22GEN WB28K10210
22GEN WB28K10209
26WB16K10035 GE Range Oven Burner Bar with Igniter
27WB28K10168 GE Oven Burner Supply Tube
28WB1X1293 GE Oven Screw
29GEN WB28K10308
30GEN WB16K10004
32INSULATION BURNER BOX
37WB34K14 GE Igniter Cover
118GEN WB14K10005
146GEN WB02K0052
206WB01K10091 GE Oven Screw
214WB19K10041 GE Oven Safety Valve and Regulator Assembly
218WB13X25261 GE Oven Igniter Glowbar
218WB13K21 GE Oven Igniter with 7 Leads
219OVEN DEFLECTOR
237WB28X24772 GE Oven Gas Tube Connector
269GEN WB35K10048
270DEFLECTOR
272WB34K10 GE Oven Broil Shield
294GEN WB63K10040
