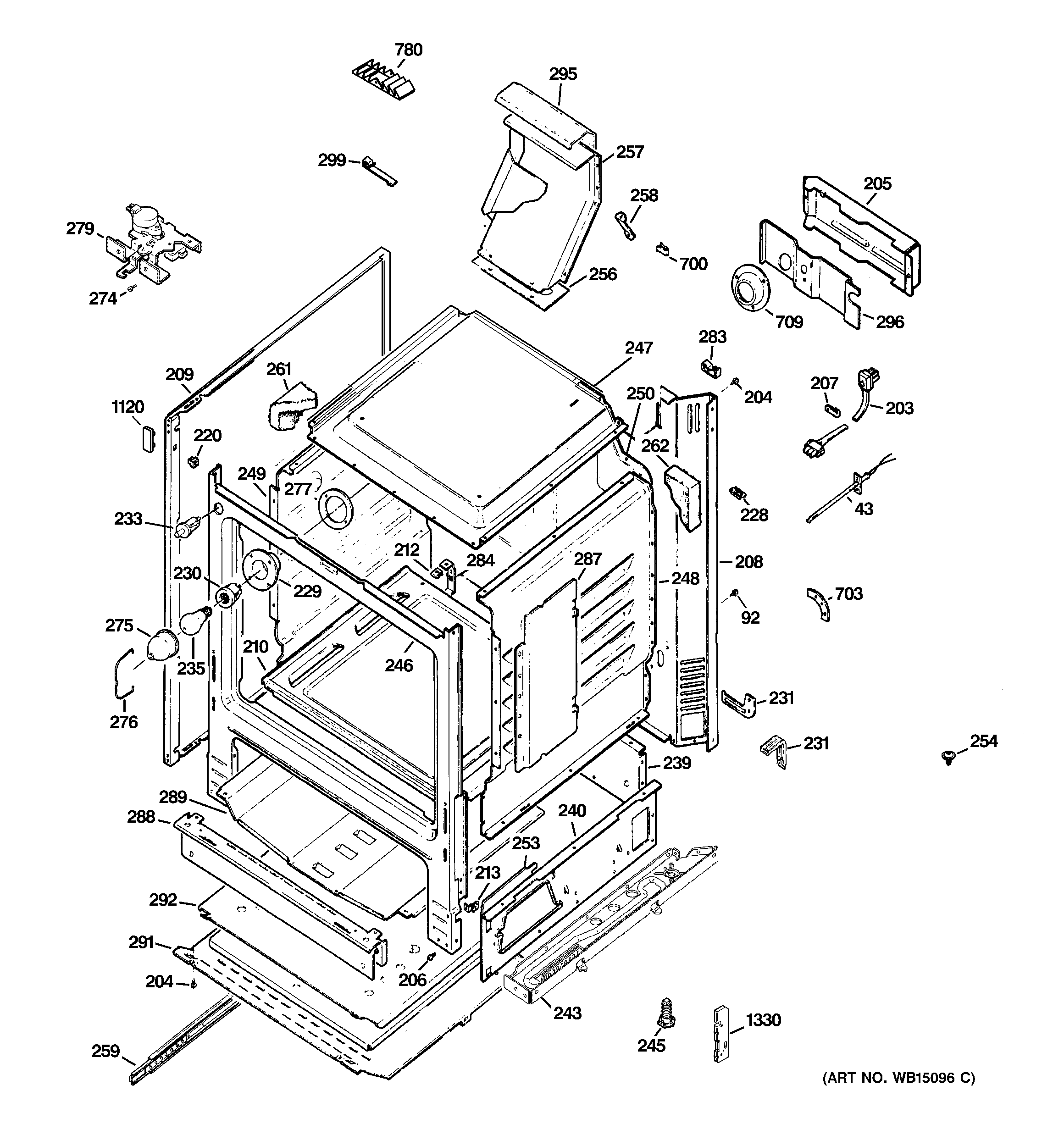

PGB900SET1SS BODY PARTS

PGB900SET1SS BODY PARTS

Written by

in

PGB900SET1SS BODY PARTS

Products

PositionProduct
43TEMPERATURE SENSOR
92WB1X1261 GE Oven Screw
203LINE CORD
204WZ4X345D GE Screw Package 12 C92
204GEN WB01K10111
204WB1K5062 GE Oven Screw
205GEN WB34K10124
206WB01K10091 GE Oven Screw
207WB2K36 GE Oven Clamp Cable
208GEN WB63K10188
209WB63K10119 GE Oven Side Panel, Black
210WB35X37967 GE Oven Bottom and Deflector Assembly
212WB1K2 GE Oven Speednut
213WB1K3 GE Oven Speed Nut
220GEN WB02K0008
228GEN WB02X7066
229GEN WB08K0001
230WB08T10026 GE Range Push-In Receptacle
231WB02K10254 GE Oven Anti-Tip Bracket Assembly
233GEN WB24K10067
235RANGE ONLY 40W 120V APPL BULB
239WB63K10203 GE Oven Rear Broil Panel
240GEN WB63K0002
240WB63K3 GE Oven Panel Side Broil
243WB63K10233 GE Oven Support Base
243WB63K10232 GE Oven Support Base
245WB02K10182 GE Oven Leveling Leg
246GEN WB63K10221
247WB53K10015 GE Oven Top
248WB53K10052 GE Oven Side
249WB53K10053 GE Oven Side
250OVEN BACK BK
253WB2K4 GE Cover Accessory Spring
254GEN WB01K0053
256WB32K10051 GE Vent Gasket
257WB38K10008 GE Oven Vent Assembly
258WB38K2 GE Range Vent Brace
259WB39K10021 GE Oven Left Drawer Slide Assembly
259WB39K10020 GE Oven Right Drawer Slide Assembly
261GEN WB35K10158
262GEN WB35K10161
262WB02K10354 GE Back Insulation
274GEN WB01K0044
275WB36X192 GE Oven Light Cover
276WB2K27 GE Oven Bail
277GEN WB32K0005
279LATCH AUTOMATIC
283WB02X21679 GE Oven Wire Clip
284WB2K32 GE Oven Support Bracket
287GEN WB34K0031
287WB34K30 GE Radiation Guard
288BRACE
289WB34K10086 GE Oven Lower Heat Shield
291WB63K16 GE Oven Bottom Guard
292WB63K10187 GE Bottom Inner Guard
295GEN WB35K10036
295GEN WB35K10212
296WB34K13 GE Oven B Panel Cover
299GEN WB02K0038
700RETAINER-INSULATION
703BRACKET OVEN
709GEN WB08K10015
780WB38K10022 GE Oven Diffuser Vent
1120WB02K10178 GE Oven Bumper
1330WB10K10029 GE Oven Receiver Hinge
