PGB900SET1SS DOOR & DRAWER PARTS

PGB900SET1SS DOOR & DRAWER PARTS

Written by

in

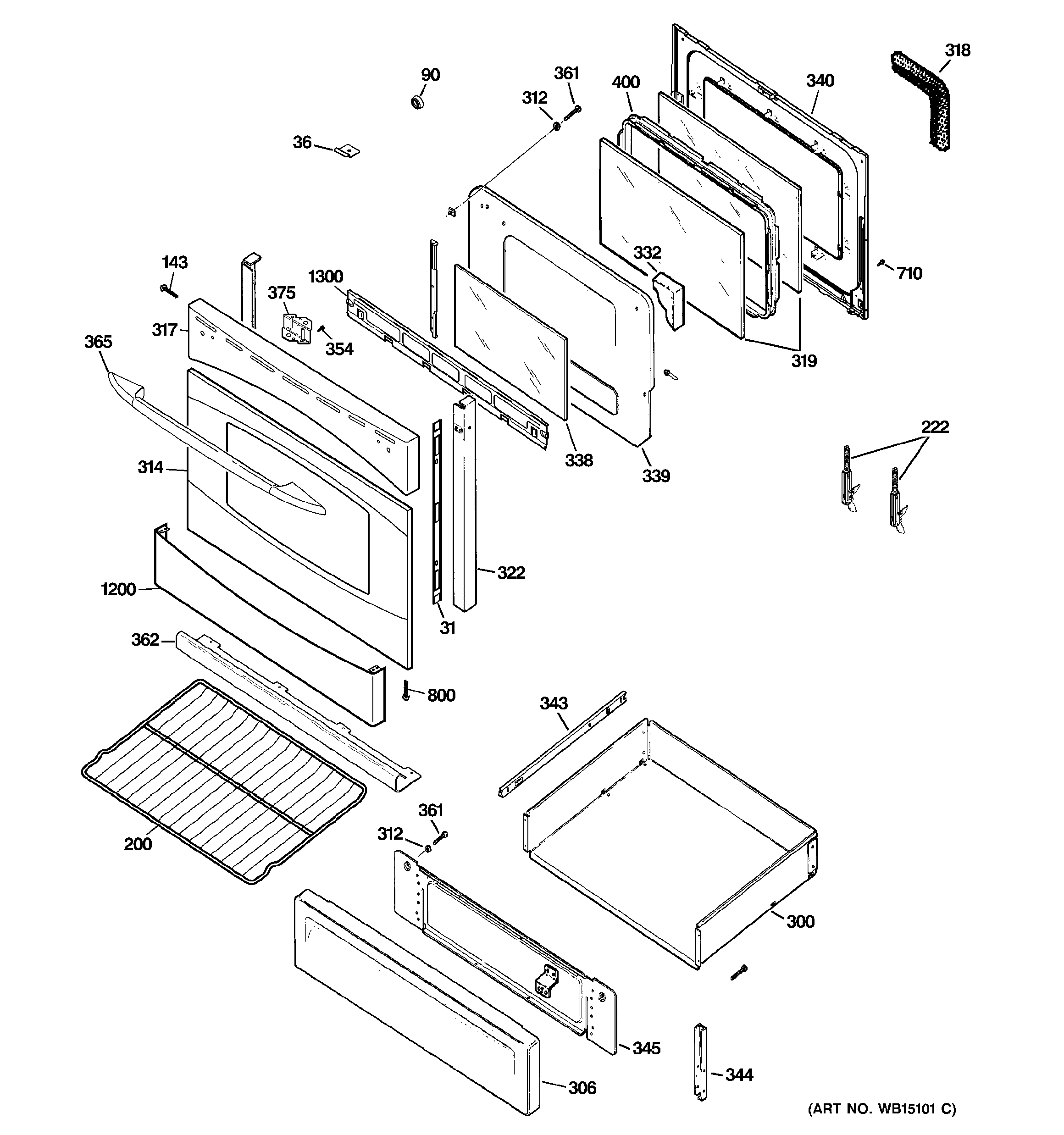

PGB900SET1SS DOOR & DRAWER PARTS

Products

PositionProduct
31GEN WB07K10417
36BRACKET GLASS
90WB02X28737 GE Oven Front Frame Bumper
143SCREW MTG END CAP
200WB48T10095 GE Oven Rack
222HINGE DOOR
222WB10K10037 GE Oven Door Hinge
300GEN WB58K10014
306WB63X21517 GE Oven Drawer Panel
306GEN WB55K10040
312WB1X119D GE Oven Range Washer
314GEN WB57K10118
317GEN WB07K10345
318WB32K10052 GE Oven Gasket
319WB57K10174 GE Range Crystal Window Door
322TRIM POST
322TRIM POST
332WB35K10222 GE Oven Insulation
332WB35K10221 GE Range Insulation
338CRYSTAL WINDOW
338GEN WB56K10021
339WB34K10137 GE Door Insulation Guard
340WB55K10084 GE Door Liner Weld Assembly
343GUIDE- SLIDE DRAWER
344WB39K20 GE Oven Mounting Bracket Drawer
345WB55K10055 GE Drawer Liner
345WB55K10068 GE Oven Drawer Liner
354WB01K10009 GE Oven Handle Mounting Screw 10-32
361WB01K10047 GE Drawer Screw 10-32 HXW 9/16
362GEN WB07K10342
365HANDLE 30 ASM (PRF-SS)
365GEN WB15T10189
375GEN WB02K10341
375GEN WB02K10064
400WB34K10141 GE Range Oven Glass Metal Frame
710WB1X536 GE Oven Screw
800WB01K10042 GE Oven Screw 3/8" AB IHW 8-18
1200GEN WB07K10287
1300GEN WB55K10077
1300GEN WB55K10047
