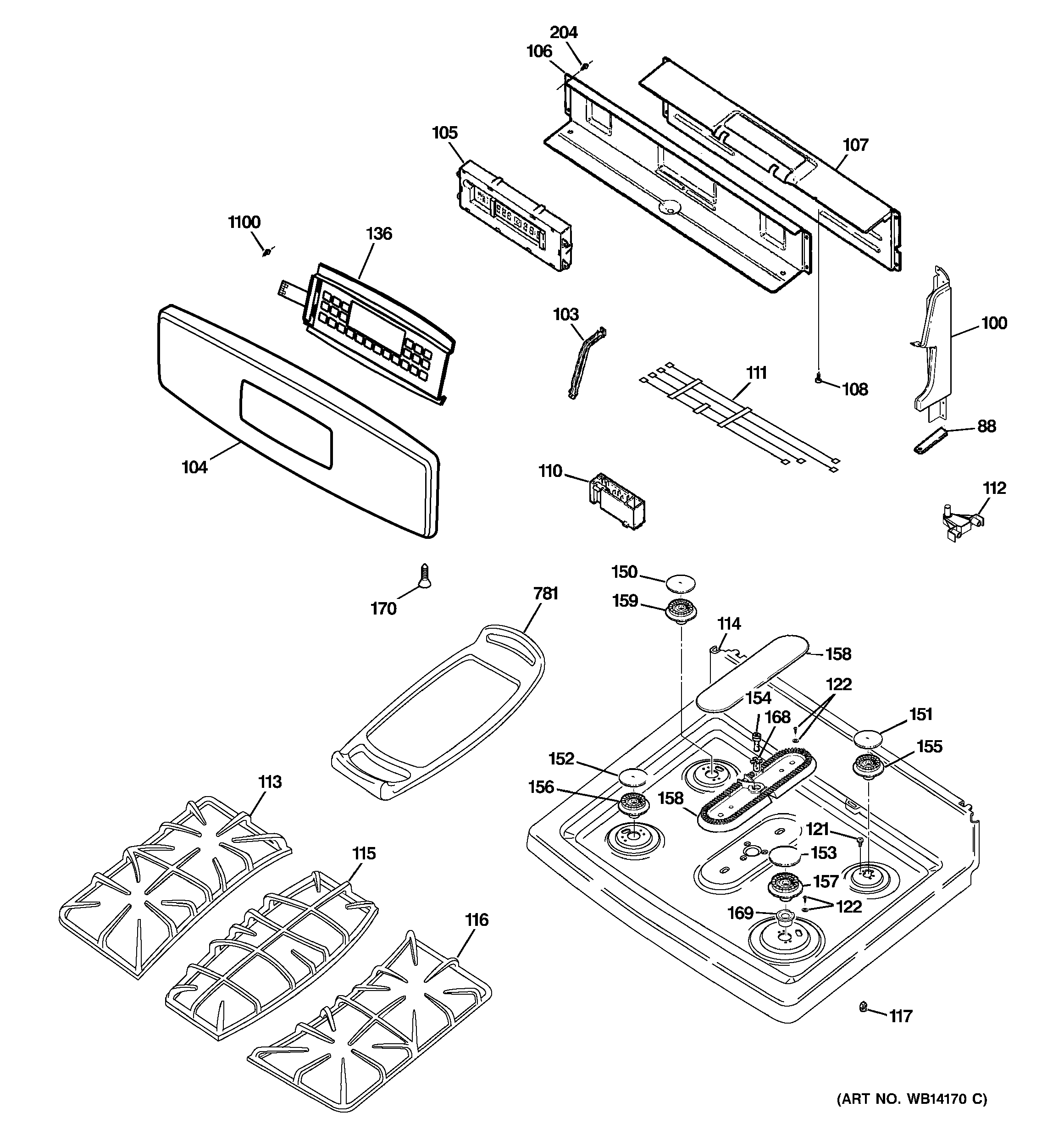

PGB908DEM2BB CONTROL PANEL & COOKTOP

PGB908DEM2BB CONTROL PANEL & COOKTOP

Written by

in

PGB908DEM2BB CONTROL PANEL & COOKTOP

Products

PositionProduct
88GEN WB02K0085
88WB2K64 GE Oven Felt Pad Black
100END SUPPORT RT
100END SUPPORT RT WH
100END SUPPORT LF WH
100END SUPPORT RT
100END SUPPORT LF
100END SUPPORT LF
103WB02K10150 GE Oven Control Bracket
104GEN WB36K10695
104GEN WB36K10645
104GEN WB36K10697
105WB27K10245 GE Oven Control T011
106GEN WB34K10092
107GEN WB34K10091
108WB1X5364 GE Oven Mounting Screw
110GEN WB18K10027
110WB13X26360 GE Oven Spark Module
111GEN WB18K10037
112WB14K10003 GE Range Top Hinge
113GEN WB31K10210
113WB31K10213 GE Oven Left Cast Grate (DD)
113GEN WB31K10207
114GEN WB62K10110
114GEN WB62K10112
114GEN WB62K10111
115GEN WB31K10215
115GEN WB31K10209
115GEN WB31K10212
116WB31K10208 GE Oven Cast Grate (DD) Right
116GEN WB31K10211
116GEN WB31K10214
117WB14K10004 GE Oven Pin Locator
121WB1K5119 GE Oven Screw
122GEN WB01K10008
136WB27K10277 GE Oven Overlay T011
136GEN WB27K10272
136GEN WB27K10271
150WB29K10001 GE Oven Burner Cap
150CAP-BURNER MED TAUPE
150WB29K10004 GE Oven Gray Burner Cap
151WB29K10009 GE Oven Burner Cap
151CAP-BURNER SMALL TAUPE
151WB29K10002 GE Range Oven Cooktop Small Burner Cap
152WB29X36765 GE Large Cap Burner Taupe Rep
152WB29K10006 GE Oven Burner Cap
152WB29K10007 GE Oven Burner Cap, Left
153GEN WB28K10221
153GEN WB28K10223
153WB28K10213 GE Oven Burner Cap Assembly (15K)
154GEN WB13K10014
155WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
156BURNER 12K
157WB16K10062 GE Oven Surface Burner Base
158GEN WB16K10052
158GEN WB16K10059
158CENTRAL BURNER ASM
159WB16K10055 GE Oven Burner Base
168WB01K10112 GE Range Oven Electrode Clip
169GEN WB16K10045
170GEN WB01X5716
170GEN WB01X5874
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
781WB31K10217 GE Oven Griddle Kit
1100WB01T10016 GE Oven Screw 8-18 AB Hex
