PGB910SEM3SS CONTROL PANEL & COOKTOP

PGB910SEM3SS CONTROL PANEL & COOKTOP

Written by

in

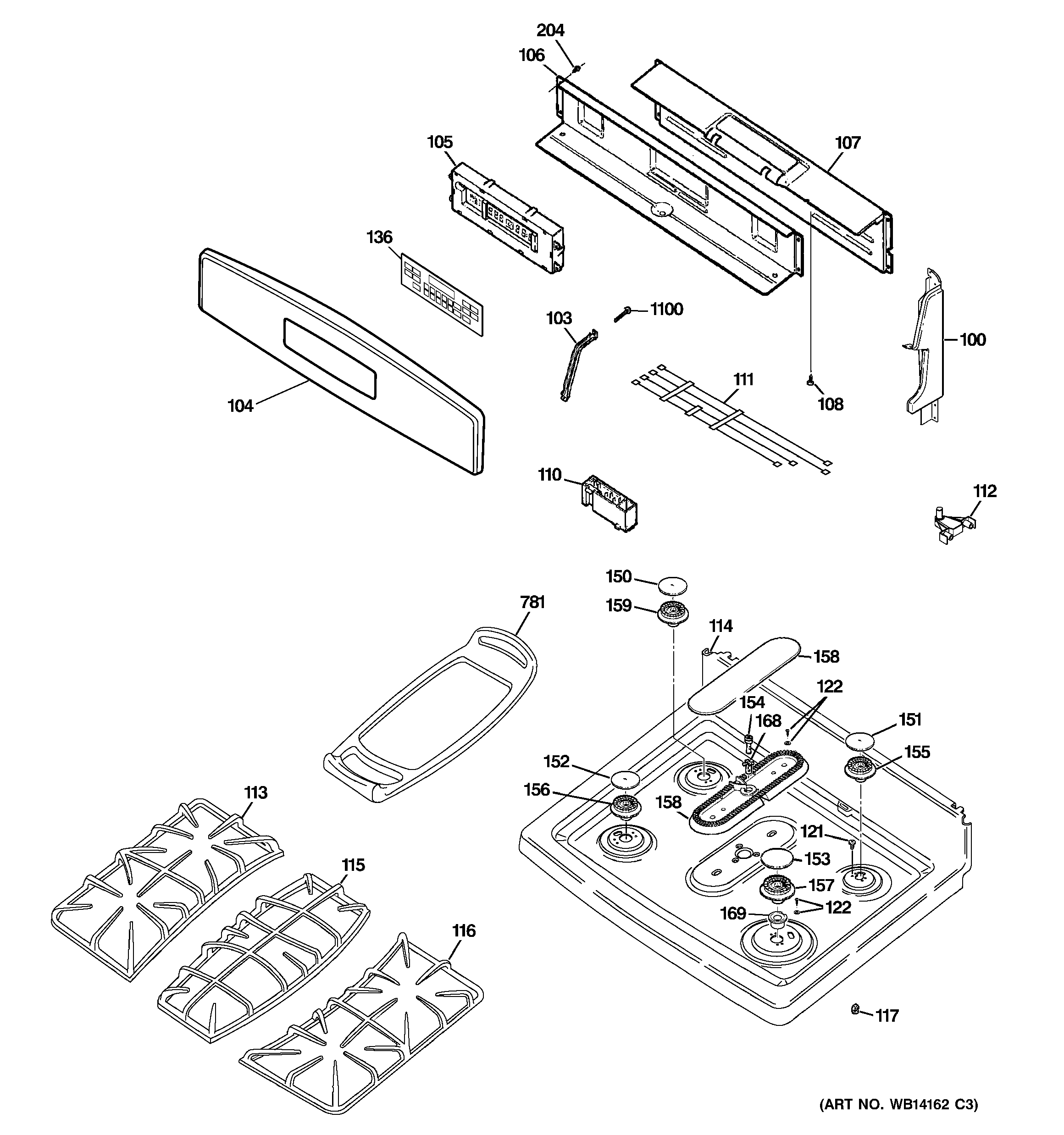

PGB910SEM3SS CONTROL PANEL & COOKTOP

Products

PositionProduct
100GEN WB07K10242
100GEN WB07K10241
103WB02K10150 GE Oven Control Bracket
104WB36K10650 GE Oven Trim Control
105WB27K10245 GE Oven Control T011
106COVER BACK UPPER
107GEN WB34K10091
108WB1X5364 GE Oven Mounting Screw
110WB13X26360 GE Oven Spark Module
111GEN WB18K10037
112WB14K10003 GE Range Top Hinge
113WB31X24641 GE Cast Kit Oven Grate
114GEN WB62K10116
117WB14K10004 GE Oven Pin Locator
121WB1K5119 GE Oven Screw
122GEN WB01K10008
136WB27K10277 GE Oven Overlay T011
150WB29K10023 GE Oven Burner Cap Assembly
151WB29K10022 GE Oven Burner Cap Assembly
152WB29K10024 GE Burner Cap Oven
153CAP BURNER ASM (15K)
154GEN WB13K10014
155WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
156BURNER 12K
157WB16K10062 GE Oven Surface Burner Base
158GEN WB16K10053
159WB16K10055 GE Oven Burner Base
168WB01K10112 GE Range Oven Electrode Clip
169GEN WB16K10045
204WZ4X345D GE Screw Package 12 C92
204WB1K84 GE Oven Screw and
204WB1K5062 GE Oven Screw
781WB31K10217 GE Oven Griddle Kit
1100WB01T10016 GE Oven Screw 8-18 AB Hex
