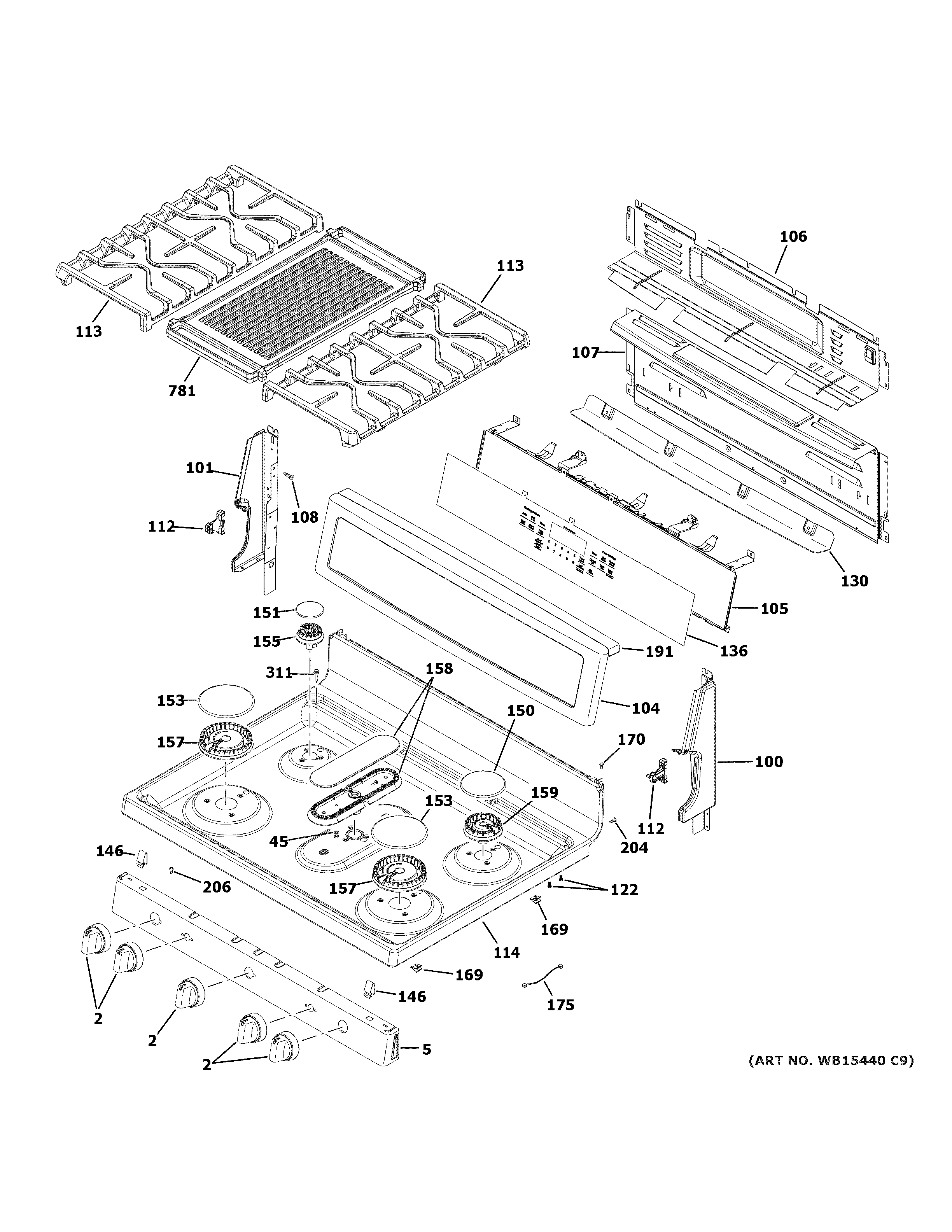

PGB911BEJ3TS CONTROL PANEL & COOKTOP

PGB911BEJ3TS CONTROL PANEL & COOKTOP

Written by

in

PGB911BEJ3TS CONTROL PANEL & COOKTOP

Products

PositionProduct
2WB03X29785 GE Knob Assembly
5WB36X32658 GE Stainless Steel Manifold Panel
45GEN WB01X1378
100WB07X29143 GE Oven End Support
101WB07X29144 GE Oven End Support
104WB36X29792 GE Range Backguard
105WB27X36211 GE Control Overlay Assembly
106WB34X24745 GE Oven Upper Back Cover
107WB34X24746 GE Oven Back Cover Lower
108WB1X5364 GE Oven Mounting Screw
112WB14K10003 GE Range Top Hinge
113GRATE ASM
114WB62X24887 GE Range Bracket and Top Assembly
122WB01X24735 GE Oven CKT Screw
130WB34X25717 GE Oven Backguard Eyebrow
136WB07X35081 GE Overlay
146WB02X26569 GE Range Top Clip
150WB29K10023 GE Oven Burner Cap Assembly
151WB16X28654 GE Oven Burner Cap Cover
153CAP BURNER ASM (15K)
155WB16X24721 GE Oven Range Small Cooktop Burner V2
157WB16X24722 GE Oven Gas Range XL Surface Burner
158WB16K10076 GE Oven Oval Burner Assembly
159WB16X24724 GE Oven Medium Burner
169WB02X24976 GE Oven Igniter Clip V2
170SCREW MTG END CAP
175WB18X24748 GE Oven Ground Harness
191WB34X29145 GE Backguard Top Complement
204WB1K5062 GE Oven Screw
206WB01K10091 GE Oven Screw
311BUMPER
781WB31X24998 GE Oven Reversible Grille
