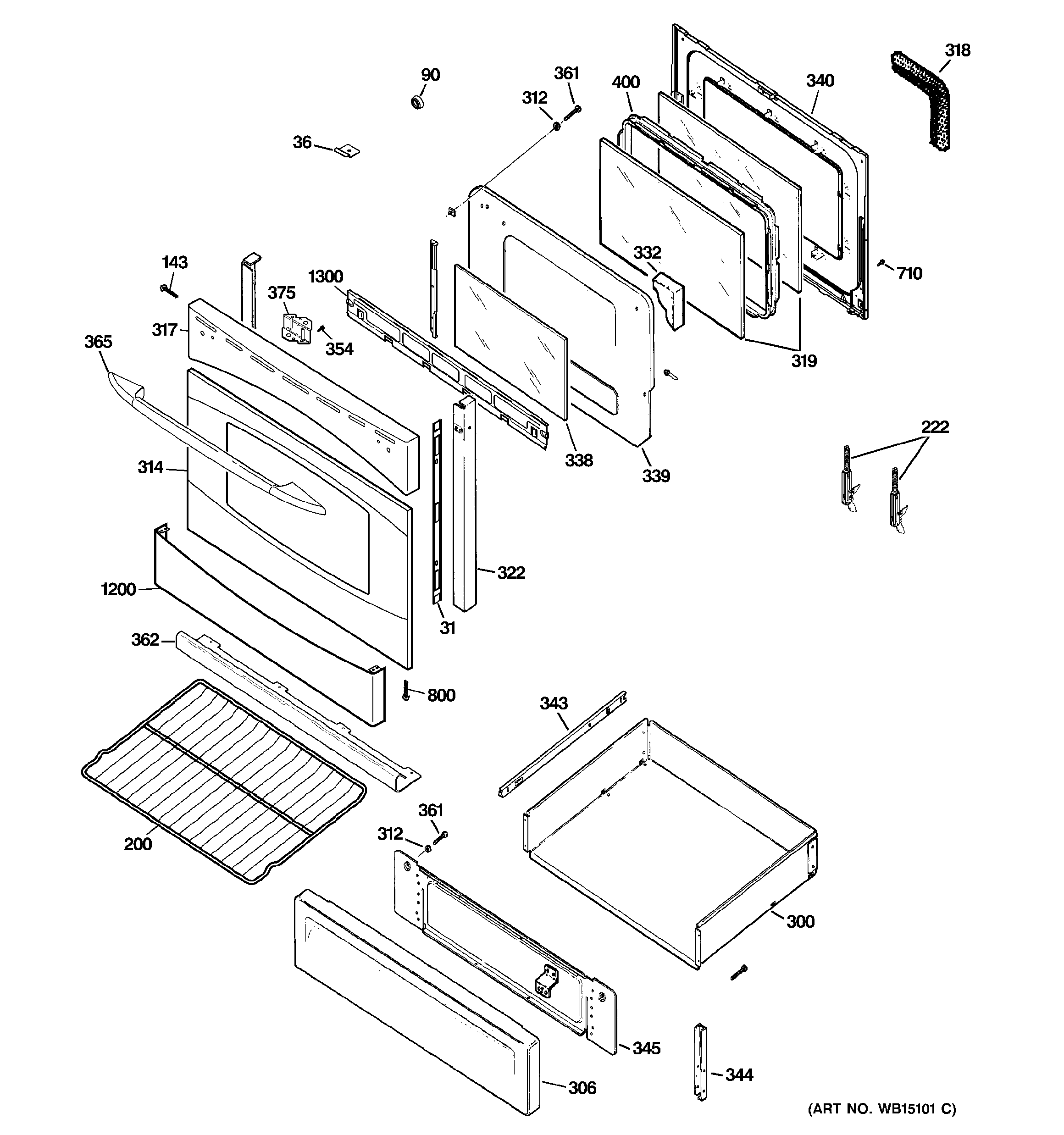

PGB915SET1SS DOOR & DRAWER PARTS

Products

Position	Product
31	GEN WB07K10417
36	BRACKET GLASS
90	WB02X28737 GE Oven Front Frame Bumper
143	SCREW MTG END CAP
200	OVEN RACK
222	WB10K10037 GE Oven Door Hinge
222	HINGE DOOR
300	WB58K10017 GE Drawer Body
300	GEN WB58K10014
306	WB63X21517 GE Oven Drawer Panel
312	WB1X119D GE Oven Range Washer
314	GEN WB57K10118
317	GEN WB07K10456
318	WB32K10052 GE Oven Gasket
319	WB57K10174 GE Range Crystal Window Door
322	TRIM POST
322	TRIM POST
332	WB35K10222 GE Oven Insulation
332	WB35K10221 GE Range Insulation
338	CRYSTAL WINDOW
339	WB34K10137 GE Door Insulation Guard
340	WB55K10084 GE Door Liner Weld Assembly
343	GUIDE- SLIDE DRAWER
344	WB39K20 GE Oven Mounting Bracket Drawer
345	WB55K10068 GE Oven Drawer Liner
354	WB01K10009 GE Oven Handle Mounting Screw 10-32
361	WB01K10047 GE Drawer Screw 10-32 HXW 9/16
362	GEN WB07K10342
365	HANDLE 30 ASM (PRF-SS)
375	GEN WB02K10341
400	WB34K10141 GE Range Oven Glass Metal Frame
710	WB1X536 GE Oven Screw
800	WB01K10042 GE Oven Screw 3/8" AB IHW 8-18
1200	GEN WB07K10287
1300	GEN WB55K10077
