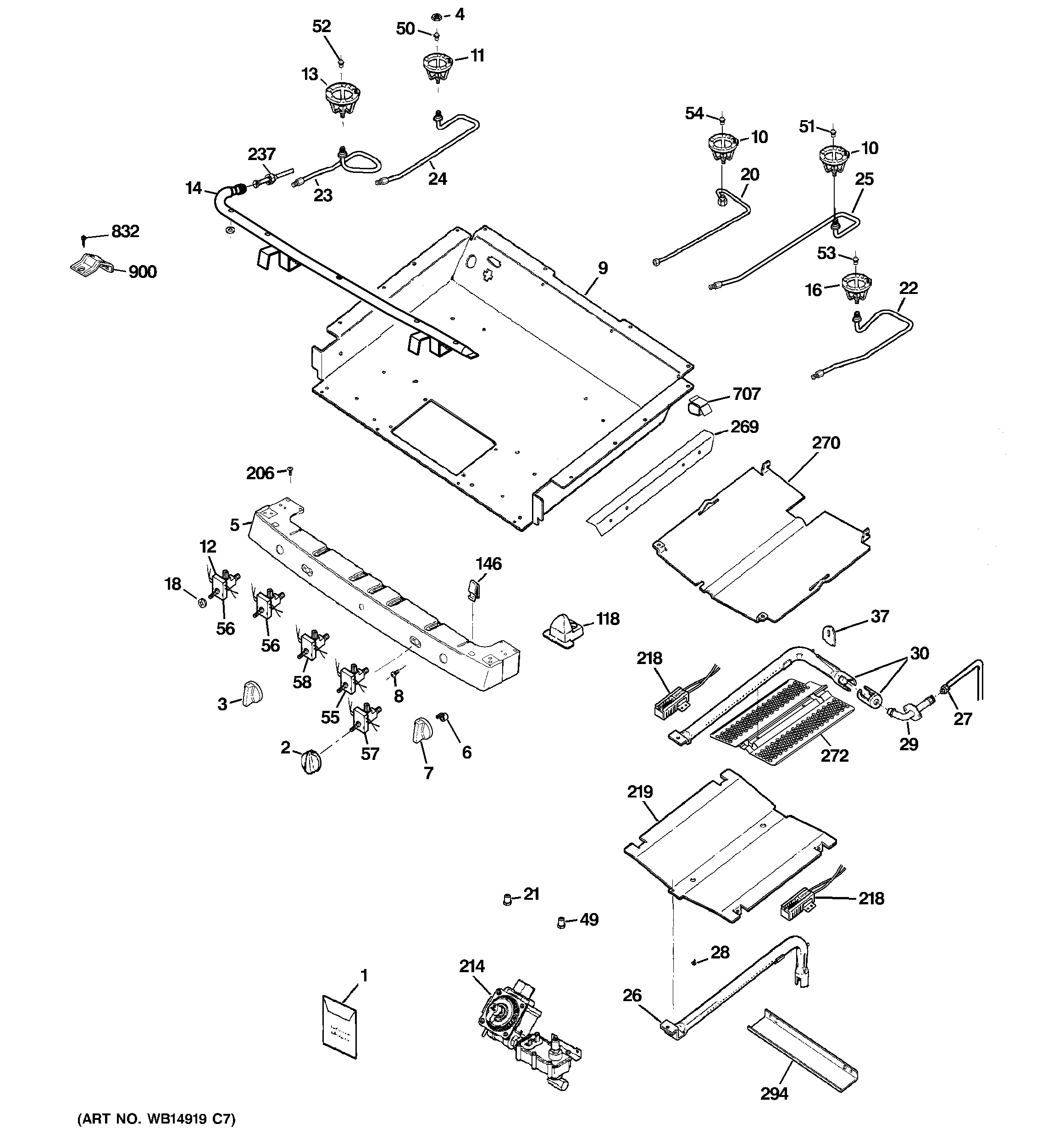

PGB915SET1SS GAS & BURNER PARTS

PGB915SET1SS GAS & BURNER PARTS

Written by

in

PGB915SET1SS GAS & BURNER PARTS

Products

PositionProduct
1GEN 31-10771
1GEN WB28K10828
1GEN 31-14975
1GEN 49-85183
2KNOB GE PROFILE ASM
3KNOB GE PROFILE ASM
4WB01K10037 GE Oven Economic Nut
5MANIFOLD PANEL
6GEN WB03K10320
7KNOB GE PROFILE ASM
8WB01K10002 GE Oven Screw 8-32
9WB63K10190 GE Burner Box Assembly
10WB02K10360 GE Oven Circuit Bracket Small
11WB02K10361 GE Oven Orifice Holder
12SWITCHES & HARNESS
13WB02K10362 GE Oven CKT Bracket MDM & L
14ROUND MANIFOLD PIPE
16WB02K10082 GE Oven Bracket XL Cooktop
18WB2K24 GE Oven Valve Cover
20ORIFICE HOLDER ASM
22ORIFICE HOLDER RF
23ORIFICE HOLDER LF
24ORIFICE HOLDER LR NG
25ORIFICE HOLDER RR
26BURNER BAKE
27WB28K10168 GE Oven Burner Supply Tube
28WB1X1293 GE Oven Screw
29WB28K10798 GE Dual Cavity Elbow
30WB16K10086 GE Range Broil Burner
37WB34K14 GE Igniter Cover
50WB28K10023 GE Oven Orifice
51WB28K10834 GE Oven Orifice Assembly
52WB28K10214 GE Oven Orifice
53WB28K10835 GE Oven LP Orifice Spud
53WB28K10842 GE Oven LP Orifice Spud
54WB28K10215 GE Oven Orifice
55WB21K10113 GE Oven Burner Valve 270
56VALVE BURNER 270
57WB21K10117 GE Oven Burner Valve
58GEN WB21K10114
118WB02K10104 GE Base Spacer
118GEN WB14K10005
146GEN WB02K0052
206WB01K10091 GE Oven Screw
214WB19K10074 GE Oven Control Valve Assembly
218WB13K21 GE Oven Igniter with 7 Leads
218WB13X25261 GE Oven Igniter Glowbar
219DEFLECTOR OVEN
237GEN WB28K10587
237WB28X24772 GE Oven Gas Tube Connector
269GEN WB35K10048
270WB49K10025 GE Range Deflector
272WB49K10045 GE Broil Shield
294WB63K10054 GE Terminal Cover
707WB02K10267 GE Wire Clip
832WB01K10080 GE Oven Thermostat Screw
900WB02K10297 GE Oven Valve Bracket
